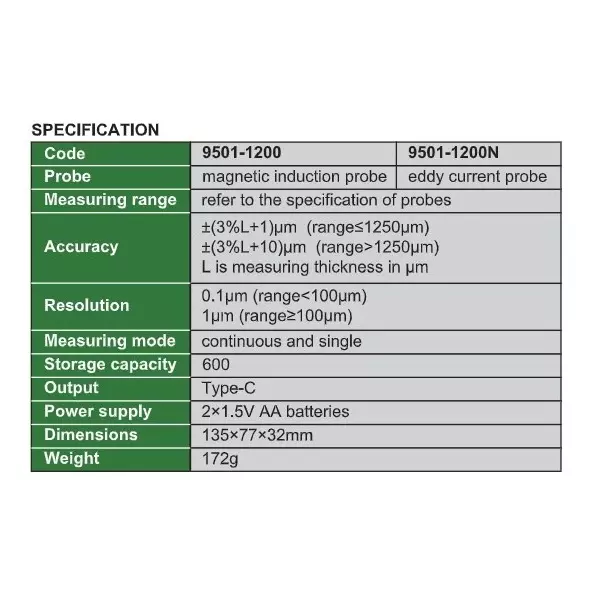

| Model No | 9501-1200N |
| Type of Product | Coating Thickness Gauge |
| Resolution | 0.1 µm (Range < 100 µm), 1 µm (Range >= 100 µm) |
| Accuracy | ±(3%L+1) µm (Range=<1250 µm), ±(3%L+10) µm (Range >1250 µm), L is measuring thickness in µm |
Model No |
9501-1200N |
Type of Product |
Coating Thickness Gauge |
Resolution |
0.1 µm (Range < 100 µm), 1 µm (Range >= 100 µm) |
Accuracy |
±(3%L+1) µm (Range=<1250 µm), ±(3%L+10) µm (Range >1250 µm), L is measuring thickness in µm |
Dimension |
135x77x32 mm |
Weight |
172 g |
Range |
0-1250 µm |
Package Contains |

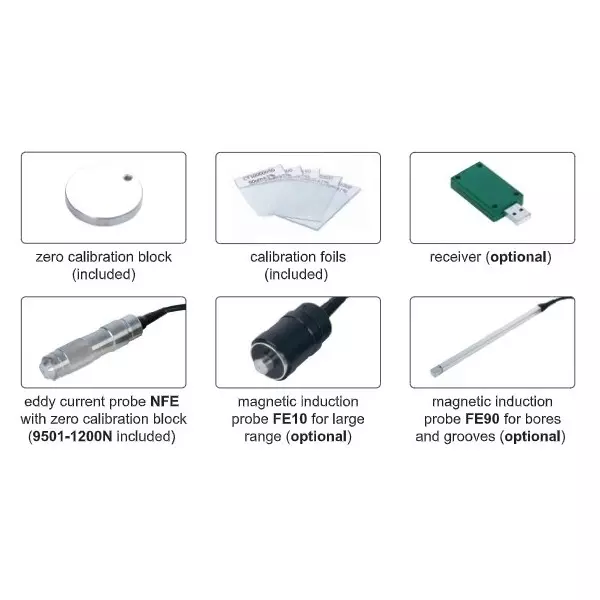

1 x Eddy Current Probe, 1 x Zero Calibration Block for NFE Probe, 1 x Main Unit, 1 x Software, 1 x USB Cable, 5 x Calibration Foils, 2 x 1.5 V AA Battery |
Type |
Standard Type |
Measuring Mode |
Continuous and Single |
Probe Type |
Eddy Current Probe |
Power Supply |
2 x 1.5 V AA Batteries |
Country of Origin |
India |
Output |
Type - C |
Name of Manufacturer/Packer/Importer |
Insize |
Memory |
600 Data |
Looking for bulk pricing or different specifications?
