Probe Type
View
View
View
View

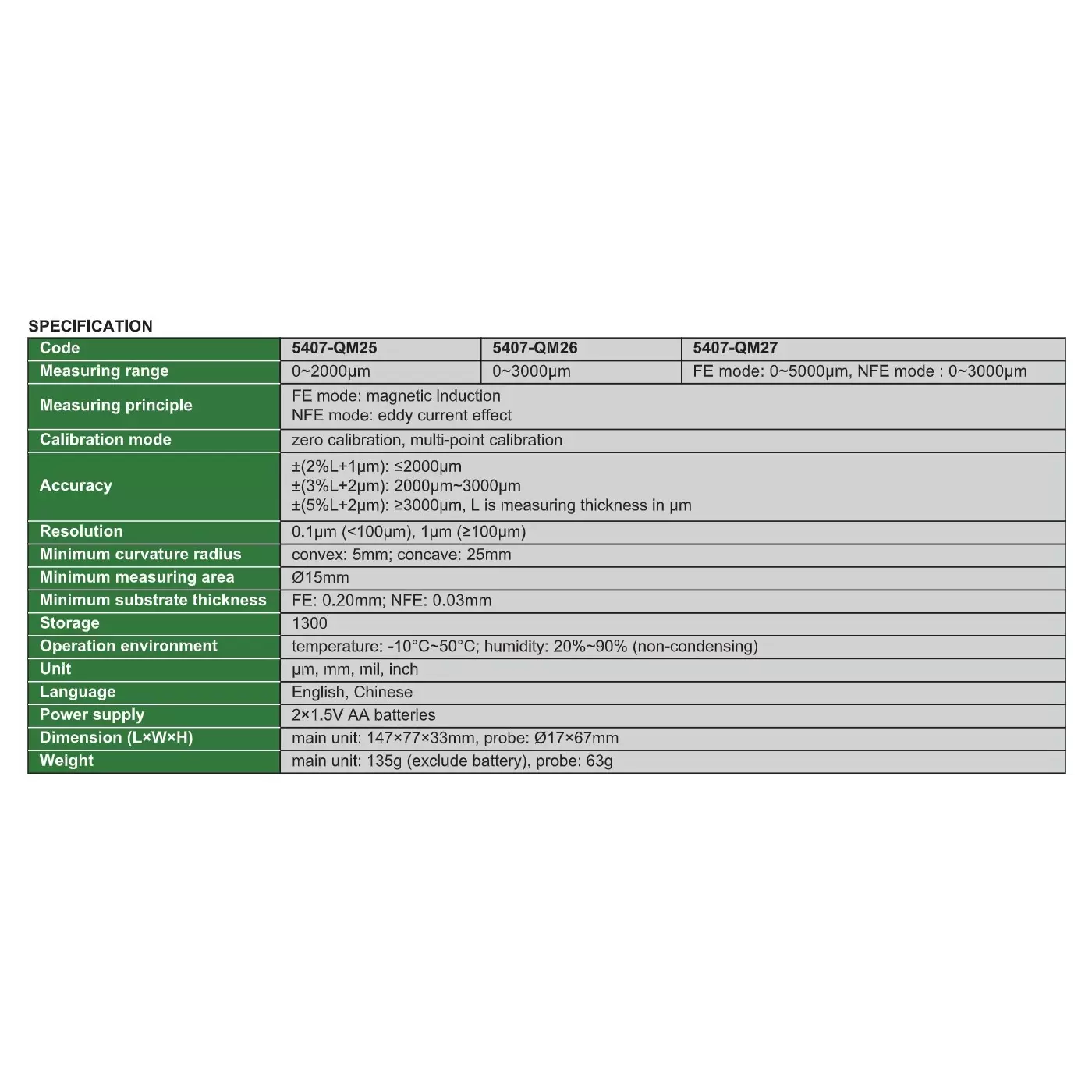

| Model No | 5407-QM25 |
| Type of Product | Coating Thickness Gauge |
| Resolution | 0.1 µm (<100 µm), 1 µm (>=100 µm) |
| Dimension | Main Unit: 147x77x33 mm, Probe: ø17x67 mm |
Model No |
5407-QM25 |
Type of Product |
Coating Thickness Gauge |
Resolution |
0.1 µm (<100 µm), 1 µm (>=100 µm) |
Dimension |
Main Unit: 147x77x33 mm, Probe: ø17x67 mm |
Weight |
135 g (Excluding Battery), Probe: 63 g |

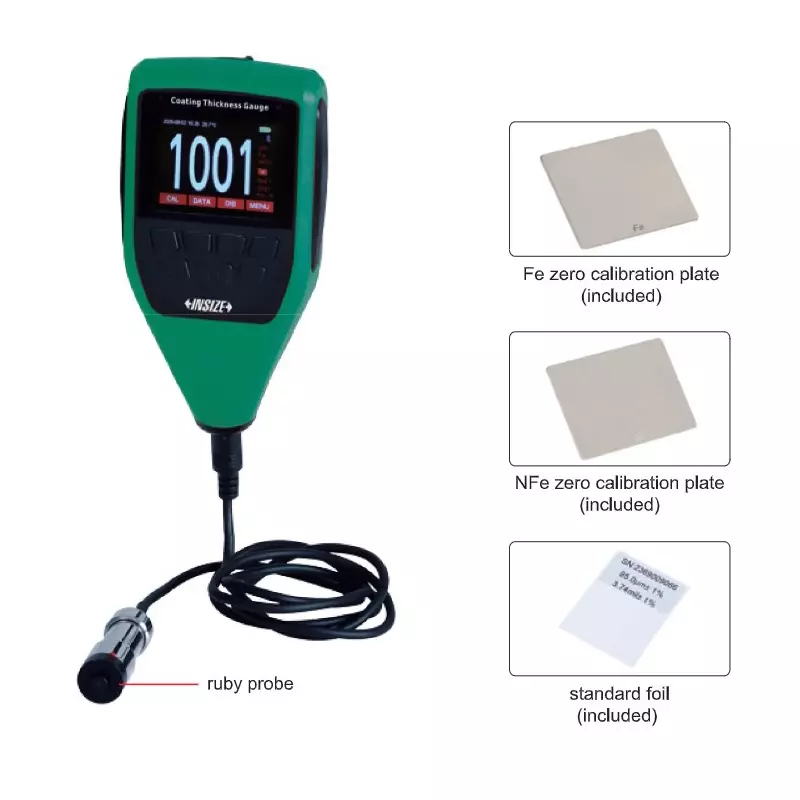

Calibration |
Zero Calibration, Multi-Point Calibration |
Measurement Range |
0-2000 µm |
Type |
Standard |
Probe Type |
External Probe |
Power Supply |
2x1.5 V AA Batteries |
Principle |
FE Mode: Magnetic Induction, NFE Mode: Eddy Current Effect |
Units |
µm, mm, mil, inch |
Country of Origin |
India |
Humidity |
20% to 90% (Non Condensing) |
Name of Manufacturer/Packer/Importer |
Insize |
Temperature |
-10°C to 50°C |
Thickness |
Minimum Substrate-FE: 0.20 mm, NFE: 0.03 mm |
Language |
English, Chinese |
Radius |
Minimum Curvature: Convex: 5 mm, Concave: 25 mm |
Area |
Minimum Measuring: ø15 mm |
