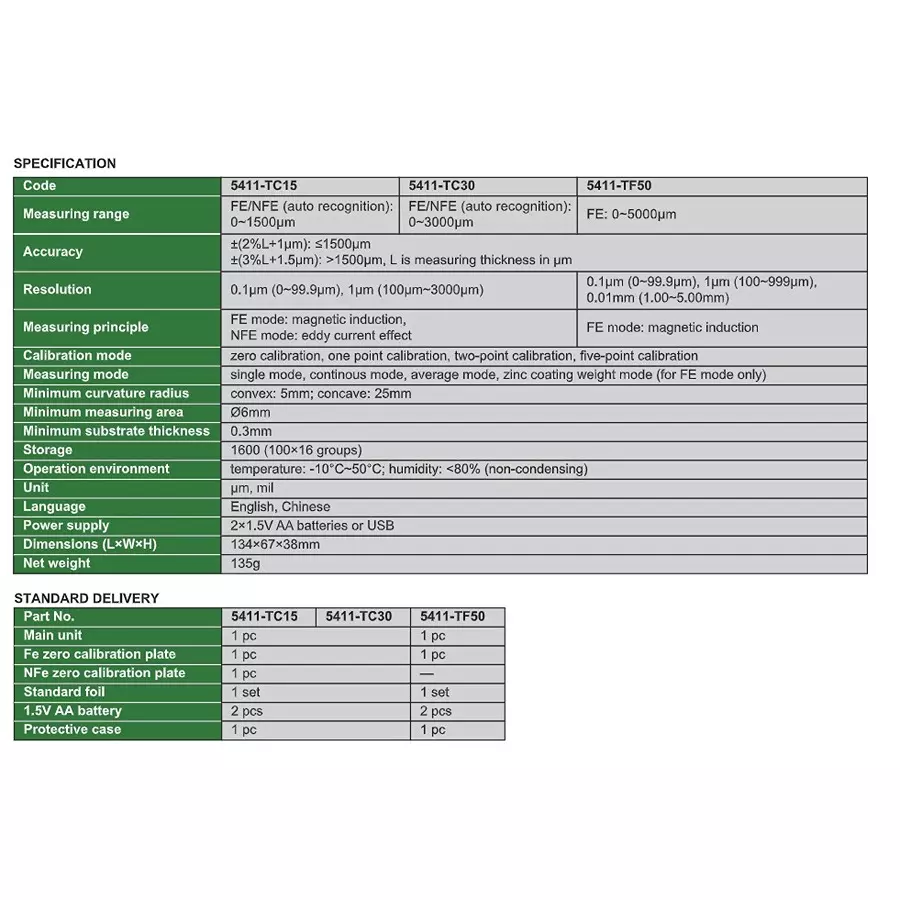

| Model No | 5411-TC15 |

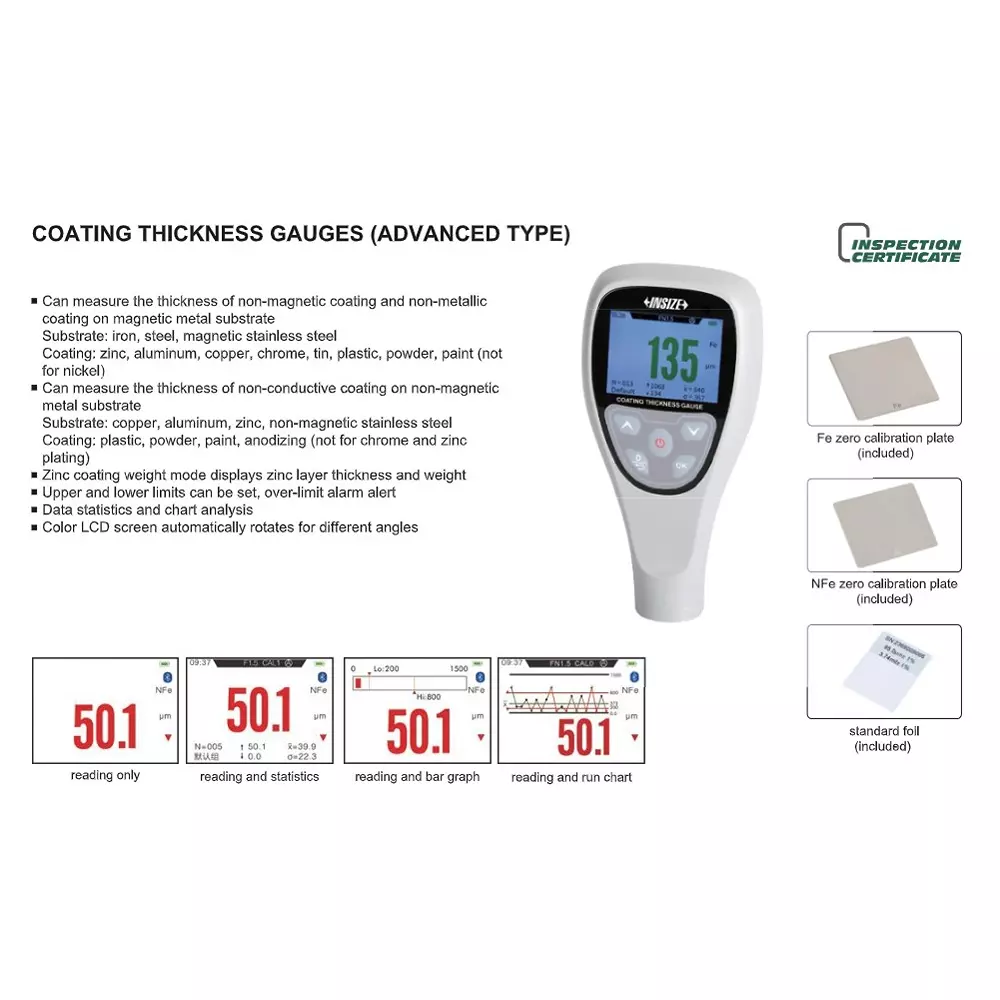

| Type of Product | Coating Thickness Gauge |
| Resolution | 0.1 μm (0-99.9 μm), 1 μm (100 μm-3000 μm) |
| Accuracy | ±(2%L+1 µm): ≤1500 µm, ±(3%L+1.5 µm): >1500 µm |
Model No |
5411-TC15 |
Type of Product |
Coating Thickness Gauge |
Resolution |
0.1 μm (0-99.9 μm), 1 μm (100 μm-3000 μm) |
Accuracy |
±(2%L+1 µm): ≤1500 µm, ±(3%L+1.5 µm): >1500 µm |
Dimension |
134x67x38 mm |
Calibration |
Zero Calibration, 1 Point, 2 Point, 5 Point Calibration |
Range |
FE/NFE 0-1500 µm |
Package Contains |
1 x Main Unit, 1 x Fe Zero Calibration Plate, 1 x NFe Zero Calibration Plate, 1 Set x Standard Foil, 2 x 1.5 V AA Battery, 1 x Protective Case |
Type |
Advanced Type |
Measuring Mode |
Single, Continuous, Average, Zinc Coating Weight |
Power Supply |
2x1.5 V AA Batteries or USB |
Operating Temperature |
-10°C to 50°C |
Storage |
1600 (100x16 groups) |
Units |
μm, mil |
Operating Humidity |
<80% RH (Non-Condensing) |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
INSZIE |
Net Weight |
135 g |
Language |
English, Chinese |
Minimum Curvature Radius |
Convex: 5 mm, Concave: 25 mm |
Minimum Measuring Area |
6 mm |
Substrate Thickness |
0.3 mm (Minimum) |
Data Transmission |
No |
Measuring Principle |
FE Mode: Magnetic Induction, NFE Mode: Eddy Current Effect |
