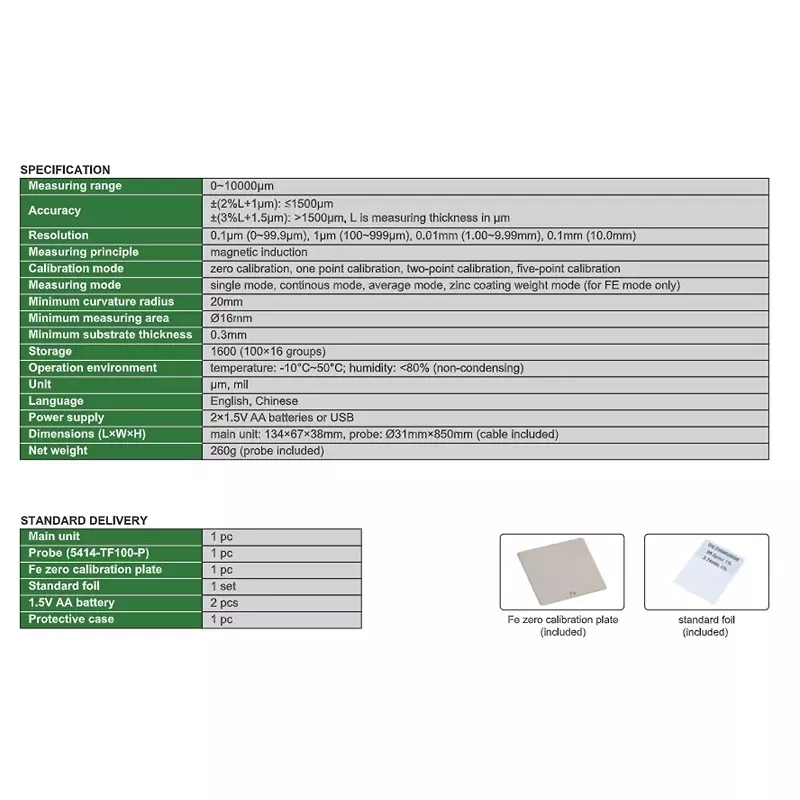

| Model No | 5414-TF100 |

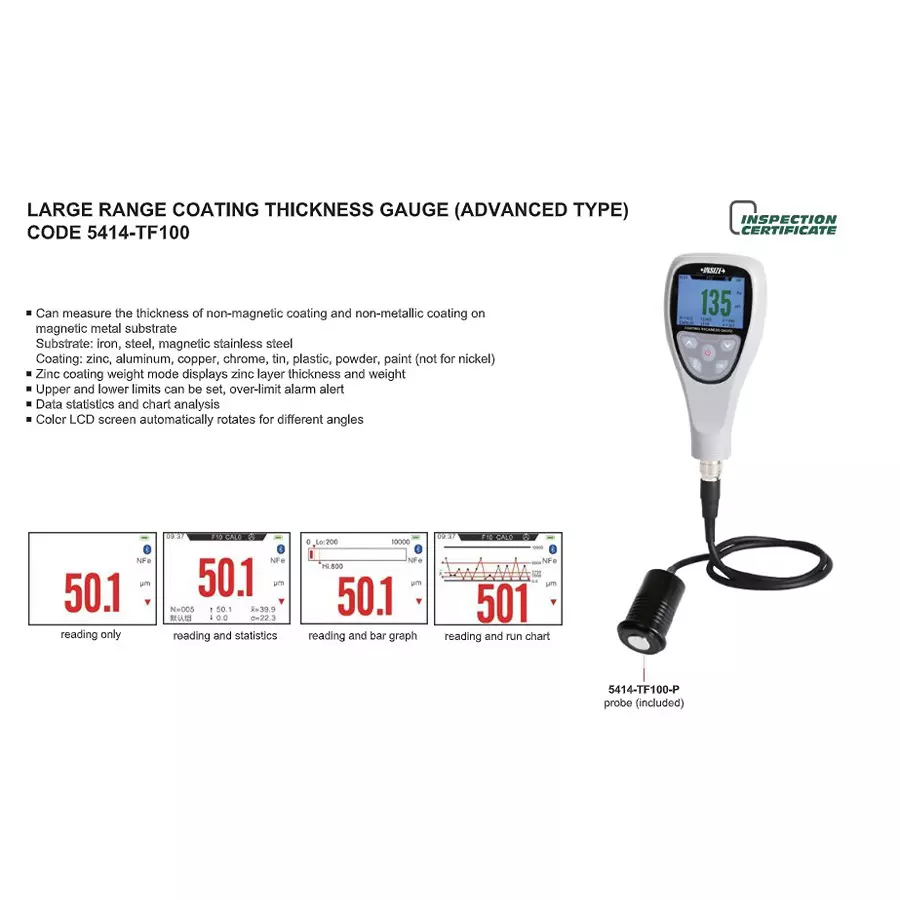

| Type of Product | Large Range Coating Thickness Gauge |
| Resolution | 0.1 μm (0-99.9 μm), 1 μm (100-999 μm), 0.01 mm (1.00-9.99 mm), 0.1 mm (10.0 mm) |
| Accuracy | ±(2% L+1 µm): ≤1500 µm, ±(3% L+1.5 µm): >1500 µm |
Model No |
5414-TF100 |
Type of Product |
Large Range Coating Thickness Gauge |
Resolution |
0.1 μm (0-99.9 μm), 1 μm (100-999 μm), 0.01 mm (1.00-9.99 mm), 0.1 mm (10.0 mm) |
Accuracy |
±(2% L+1 µm): ≤1500 µm, ±(3% L+1.5 µm): >1500 µm |
Features |
Zinc coating weight mode displays zinc layer thickness and weight Upper and lower limits can be set, over-limit alarm alert Data statistics and chart analysis Color LCD screen automatically rotates for different angles |
Range |
0-10000 µm |
Package Contains |
1 x Main Unit, 1 x Probe, 1 x Fe Zero Calibration Plate, 1 Set x Standard Foil, 2 x 1.5 V AA Battery, 1 x Protective Case |
Type |
Advanced Type |
Measuring Mode |
Single, Continusous, Average, Zinc Coating Weight |
Power Supply |
2x1.5 V AA Batteries |
Operating Temperature |
-10°C to 50°C |
Storage |
1600 (100x16 groups) |
Units |
μm, mil |
Operating Humidity |
< 80% RH |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
INSZIE |
Net Weight |
260 g |
Language |
English, Chinese |
Minimum Curvature Radius |
20 mm |
Minimum Measuring Area |
16 mm |
Substrate Thickness |
0.3 mm |
Data Transmission |
No |
Measuring Principle |
Magnetic Induction |
Calibration Method |
Zero Calibration, One Point, Two Point, Five Point |
