| Model No | KM-FN-500A |

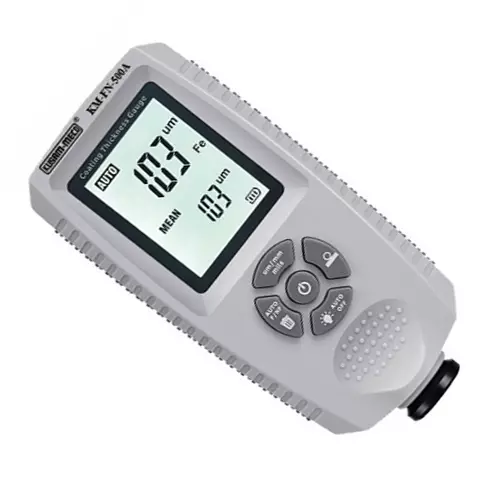

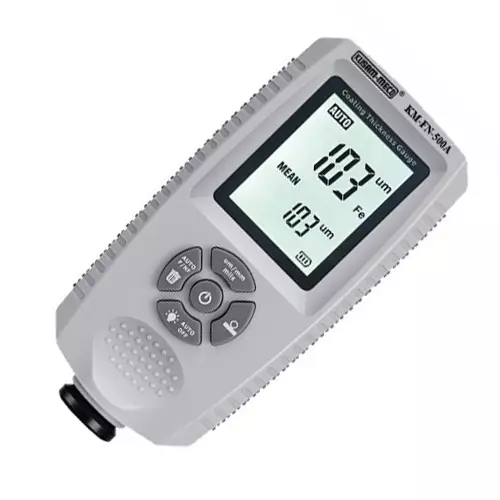

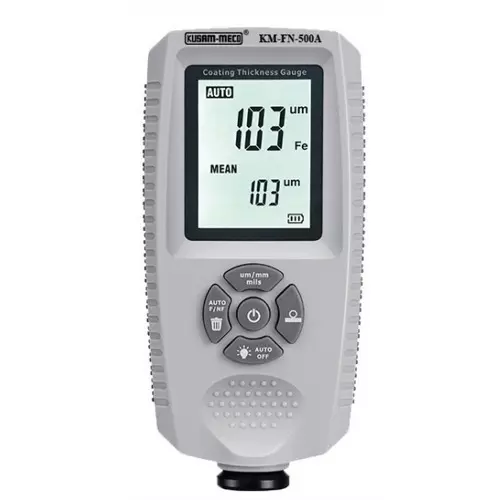

| Type of Product | Digital Coating Thickness Gauge |
| Resolution | 0 mm~99.9 mm(0.1 mm), 100 mm~999 mm(1 mm), >1000 mm(0.01 mm) |
| Accuracy | Type A: ±(3%+1mm) Type B: ±(2%+1mm), Type A: ±(3%+1mm) Type B: ±(2%+1mm) |
Model No |
KM-FN-500A |
Type of Product |
Digital Coating Thickness Gauge |
Resolution |
0 mm~99.9 mm(0.1 mm), 100 mm~999 mm(1 mm), >1000 mm(0.01 mm) |
Accuracy |
Type A: ±(3%+1mm) Type B: ±(2%+1mm), Type A: ±(3%+1mm) Type B: ±(2%+1mm) |
Dimension |
110x53x24 mm |
Weight |
Approx. 84g. |
Calibration |
Zero point calibration |
Accessories |
User Manual, Battery & Carrying case |
Measurement Range |
0 to 1500 μm |
Power Supply |
Two 1.5V AAA battery |
Weight (g) |
84 g |
Operating Temperature |
0 to 50°C |
Storage Temperature |
-10 to 60°C |
Principle |
Magnetic induction, Eddy Currents |
Suitable For |
Ferrous & Non-Ferrous Base Material |
Probe |
Probe F ; Probe N |
Statistics |
No. of readings, mean, minimum, maximum |
Standard |
CE ROHS FCC |
Backlight |
Yes |
Units |
mm, mm, mils |
Operating Humidity |
20%~ 90%RH |
