| Color | yellow |
| Type of Product | Battery Connector |
| Material | Copper alloy silver plating, insulator: PC glass filled, etc., UL94V-0 |
| Size | M |
Color |
yellow |
Type of Product |
Battery Connector |
Material |
Copper alloy silver plating, insulator: PC glass filled, etc., UL94V-0 |
Size |
M |
Model No |
BMC2M-22-y |
Country of Origin |
Japan |
Monotaro ID |
44574034 |
Operating Temperature Range |
-20 to +125 ℃ |

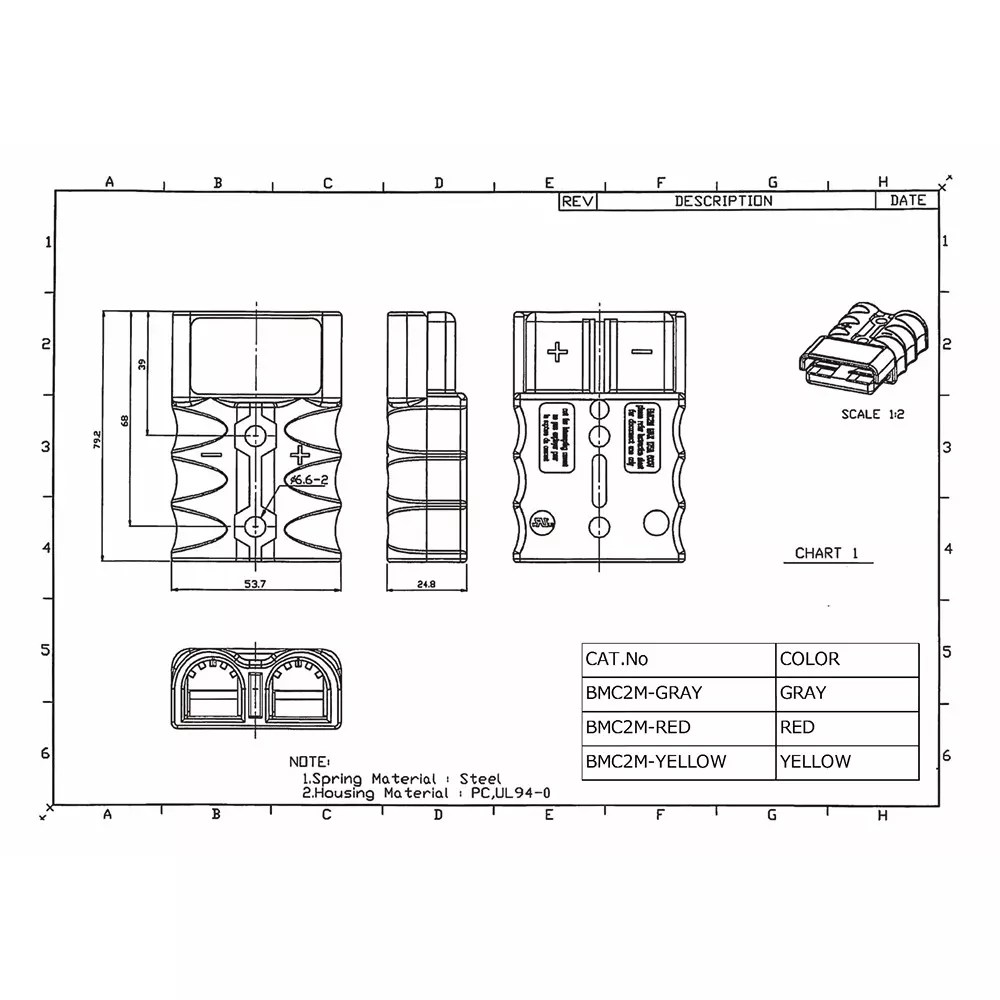

Dimension C |
79.2 mm |
Name of Manufacturer/Packer/Importer |
Japan Connect Industry |
Pack of |
2 Set |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
68 |
Dimension A (Φmm) |
39 |
Rated Voltage (V) |
600 |
Dimension d |
53.7 mm |
Dimension E (Φmm) |
24.8 mm |
Outer Diameter (Φmm) |
19.05 |

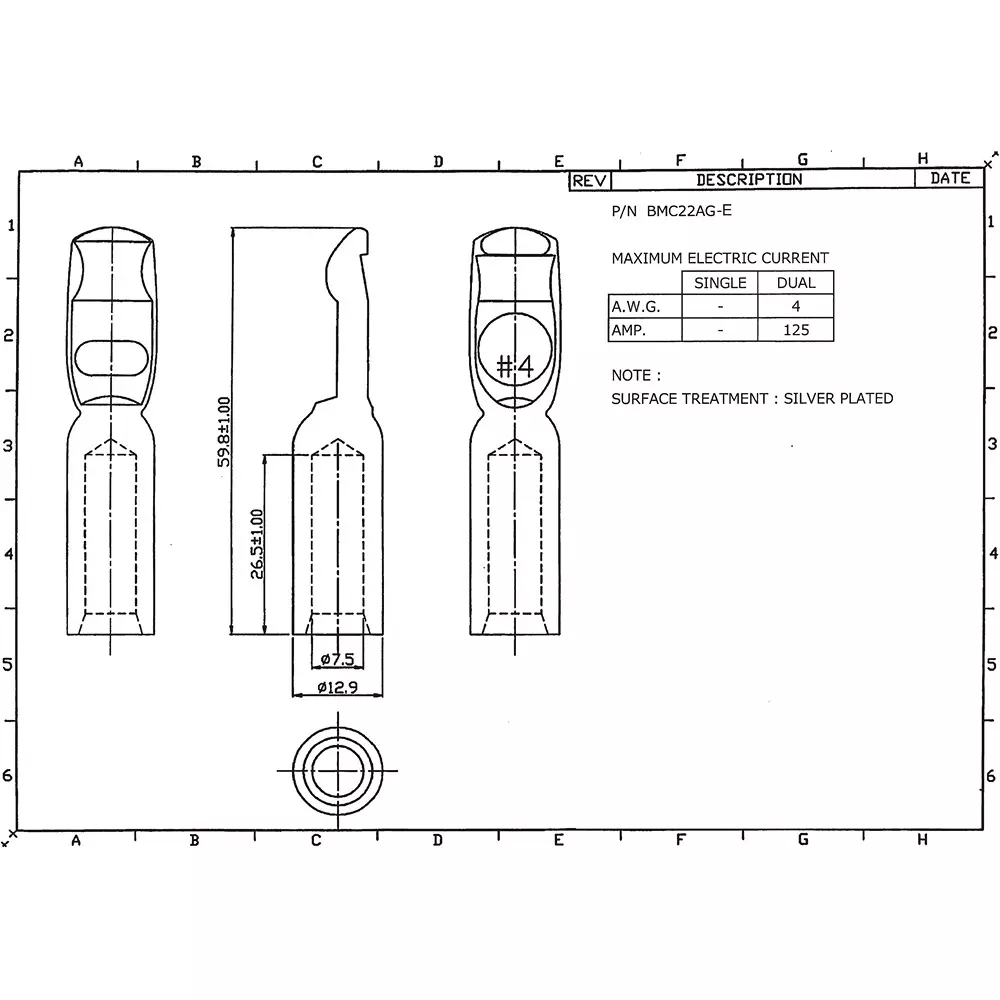

Pin Material |
Brass |
Rated Current (A) |
125 |
Applicable Wire Range AWG |
4 |
Retention |
1334.5N |
Contact No. |
22 |
Insertion/Removal Method |
Average: 111.2N |
