| Color | Gray |
| Type of Product | Battery Connector |
| Material | Copper alloy silver plating, insulator: PC glass filled, etc., UL94V-0 |
| Size | S |
Color |
Gray |
Type of Product |
Battery Connector |
Material |
Copper alloy silver plating, insulator: PC glass filled, etc., UL94V-0 |
Size |
S |
Model No |
BMC2S-14-g |
Country of Origin |
Japan |
Monotaro ID |
44573955 |
Operating Temperature Range |
-20 to +125 ℃ |

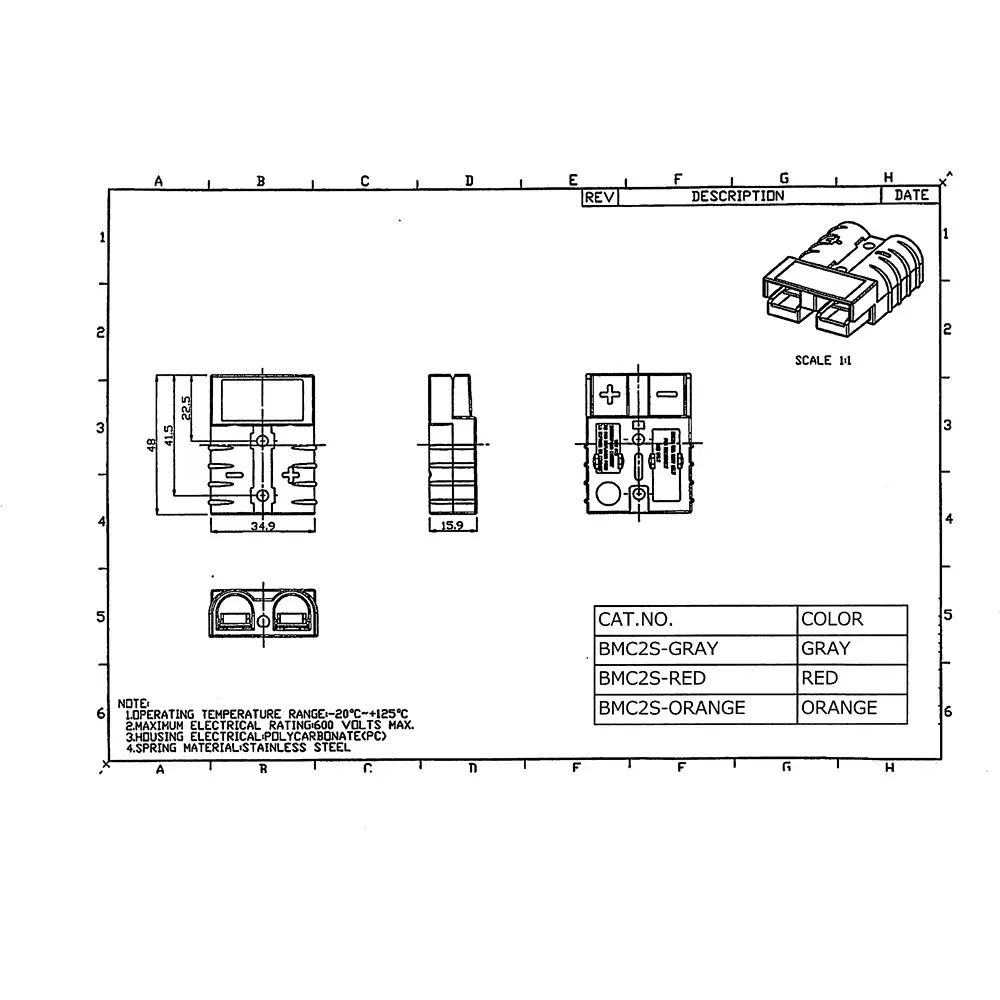

Dimension C |
48 mm |
Name of Manufacturer/Packer/Importer |
Japan Connect Industry |
Pack of |
2 Set |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
41.5 |
Dimension A (Φmm) |
22.5 |
Rated Voltage (V) |
600 |
Dimension d |
34.9 mm |
Dimension E (Φmm) |
16.9 mm |
Outer Diameter (Φmm) |
11.18 |

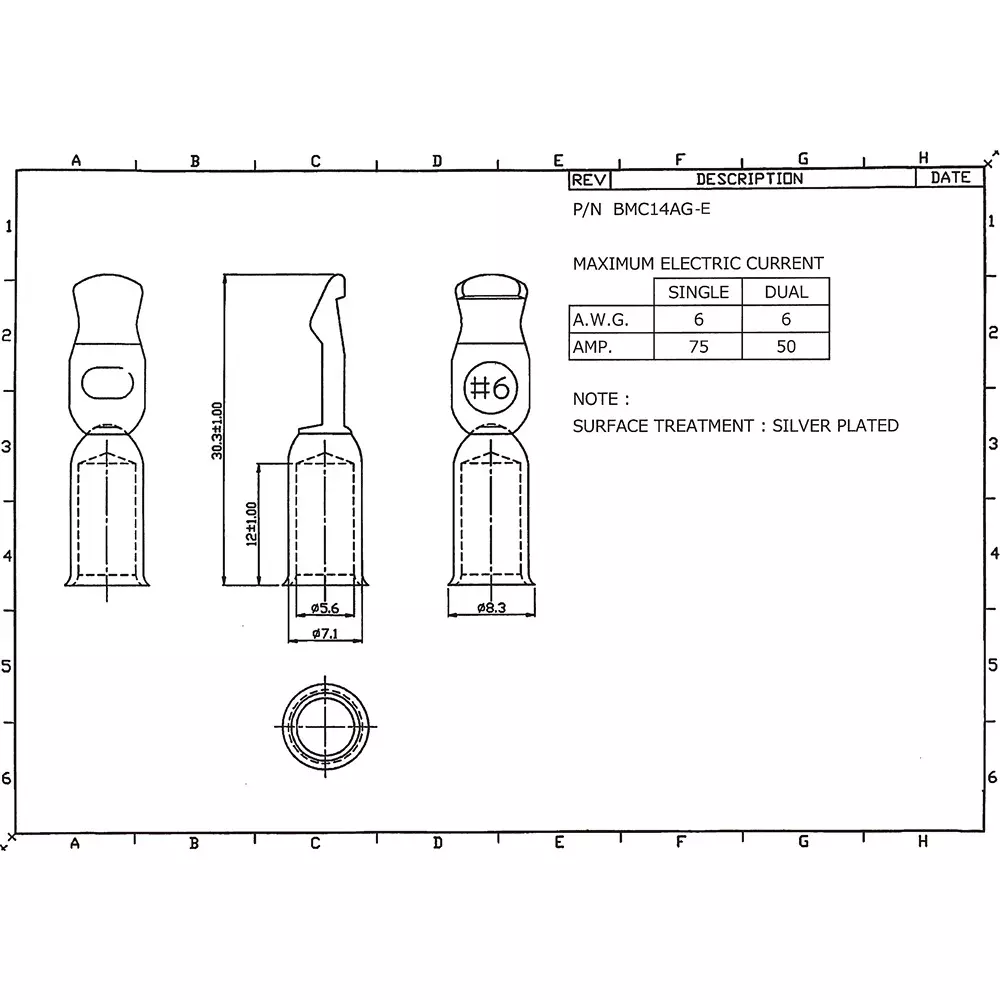

Pin Material |
Brass |
Rated Current (A) |
50 |
Applicable Wire Range AWG |
6 |
Retention |
222.4N |
Contact No. |
14 |
Insertion/Removal Method |
Average: 66.7N |
