| Color | Gray |
| Type of Product | Battery Connector |
| Material | Copper alloy silver plating, insulator: PC glass filled, etc., UL94V-0 |
| Size | MS |
Color |
Gray |
Type of Product |
Battery Connector |
Material |
Copper alloy silver plating, insulator: PC glass filled, etc., UL94V-0 |
Size |
MS |
Model No |
BMC2MS-22-g |
Country of Origin |
Japan |
Monotaro ID |
44574120 |
Operating Temperature Range |
-20 to +125 ℃ |

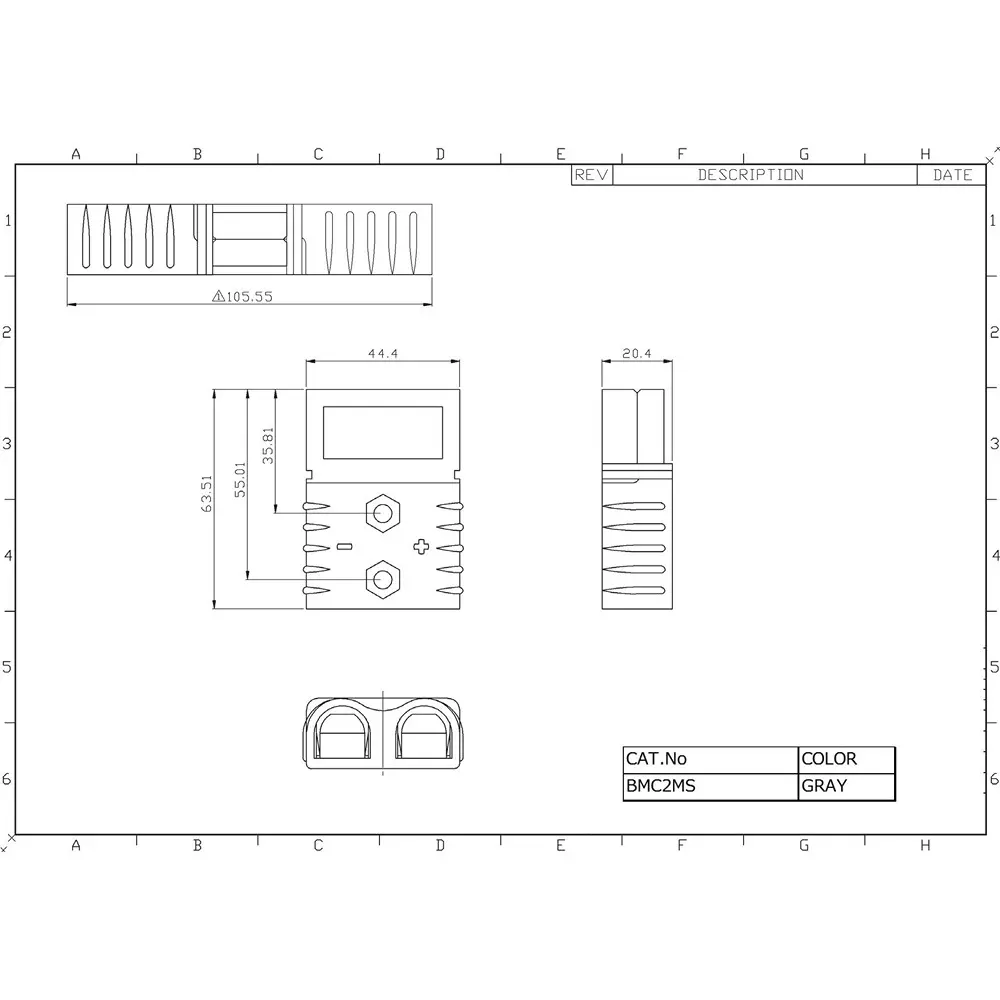

Dimension C |
63.51 mm |
Name of Manufacturer/Packer/Importer |
Japan Connect Industry |
Pack of |
2 Set |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
55.01 |
Dimension A (Φmm) |
35.81 |
Rated Voltage (V) |
600 |
Dimension d |
44.4 mm |
Dimension E (Φmm) |
20.4 mm |
Outer Diameter (Φmm) |
14.6 |

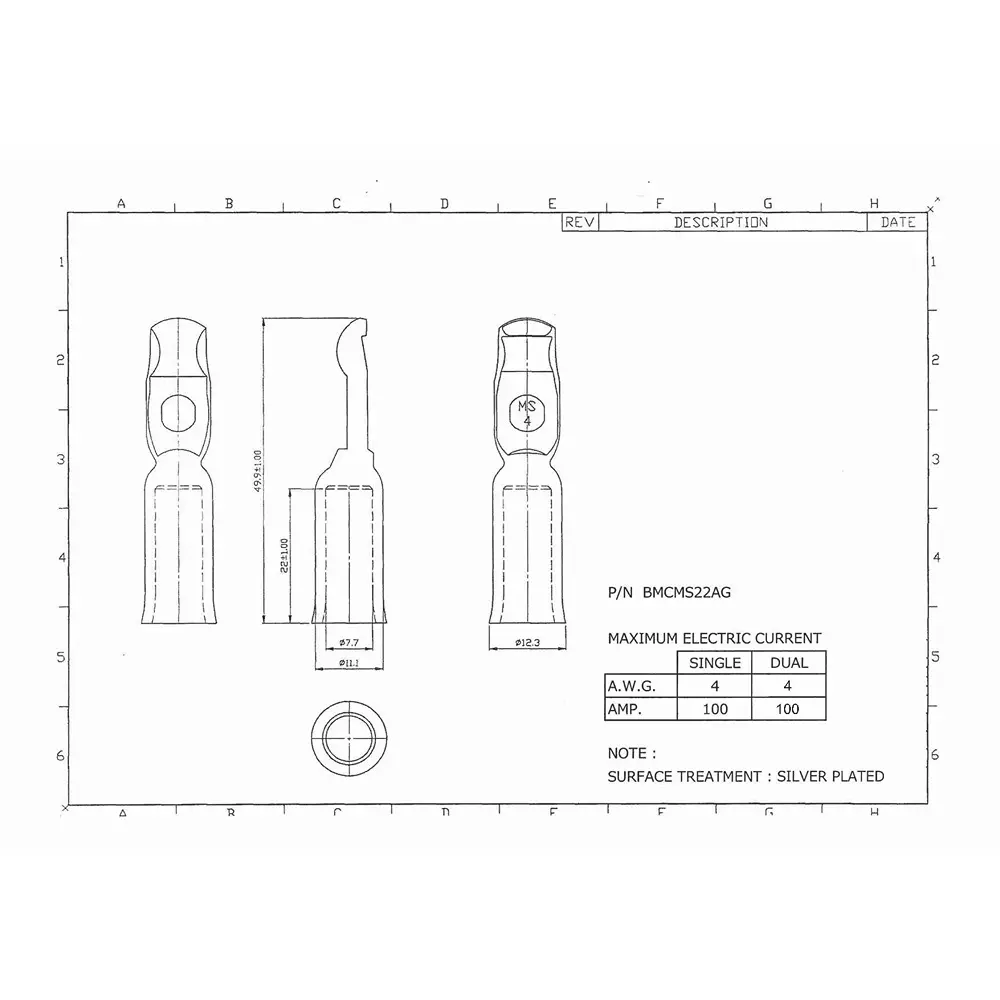

Pin Material |
Brass |
Rated Current (A) |
100 |
Applicable Wire Range AWG |
4 |
Retention |
444.8N |
Contact No. |
22 |
Insertion/Removal Method |
Average: 88.9N |
