Ships within 4 days
View
View
View
View

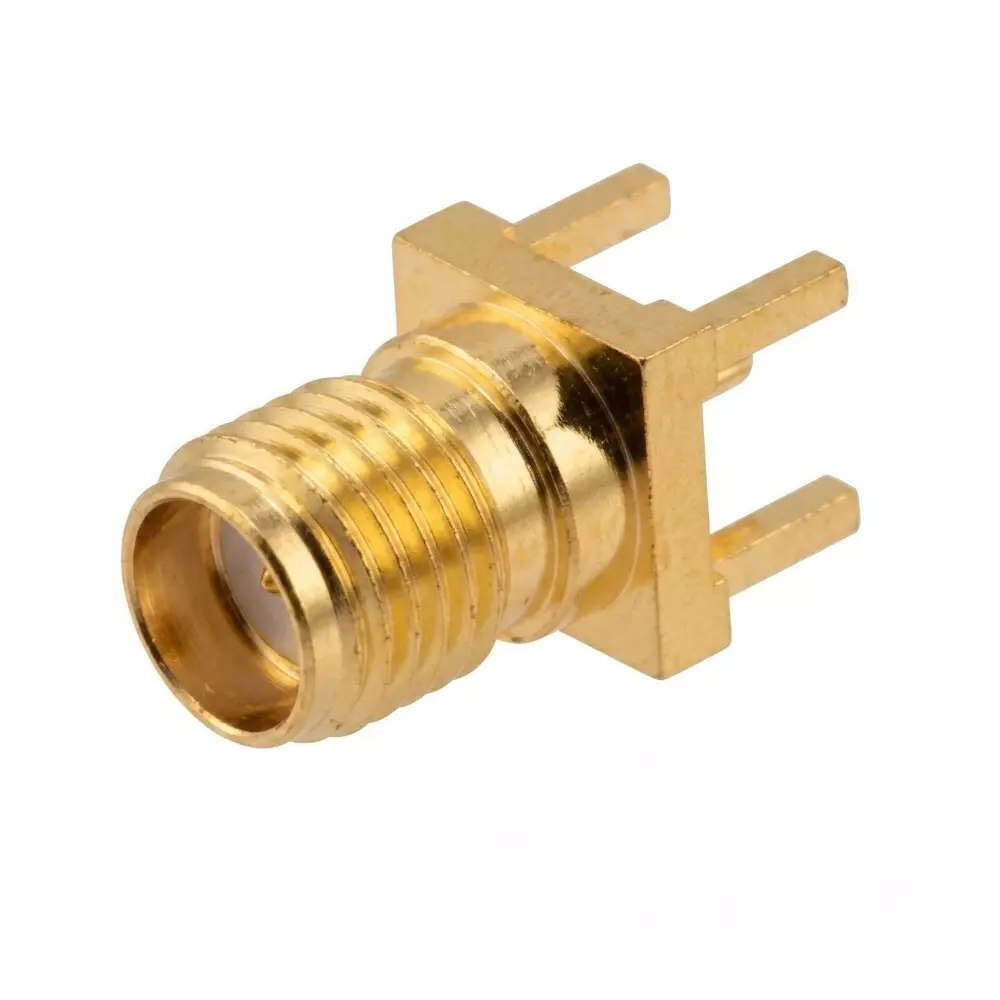

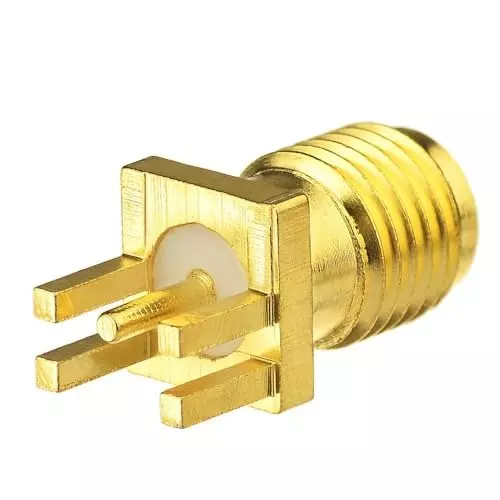

| Type of Product | SMA Female Edge PCB Mount Connector |
| Impedance | 50 Ohm |
| Material | Brass |
| Connector Type | SMA Female |
Type of Product |
SMA Female Edge PCB Mount Connector |
Impedance |
50 Ohm |
Material |
Brass |
Connector Type |
SMA Female |
Frequency Range |
0–6 GHz |
Model No |
RC008 |
Orientation |
Straight |
Country of Origin |
India |
Mounting Type |
PCB Edge Mount |
Application |
Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial Cable, LMR, Wireless LAN Devices, CCTV, Microwave Applications, Digital Communication Systems |
Name of Manufacturer/Packer/Importer |
NBR Solutions |
No. Of Pin |
4 |
Operating Temperature |
-65 °C to +165 °C |
Item Code |
UF-685Z-QB8E |
Durability |
≥500 Mating Cycles |
Maximum Range |
0.05 ft (1.52 cm) |
Antenna Type |
Connector SMA Female |
No. of Channels |
1 |
Surface Finish Type |
Gold Plated |
Compatible - with |
0.040 Inch (1 mm) |
Withstand Voltage |
1000 V RMS |
Working Voltage |
335 V Max |
