| Type of Product | BNC Connector |
| Model No | BNC284-BR |
| Country of Origin | Japan |
| Monotaro ID | 87878357 |
Type of Product |
BNC Connector |
Model No |
BNC284-BR |
Country of Origin |
Japan |
Monotaro ID |
87878357 |

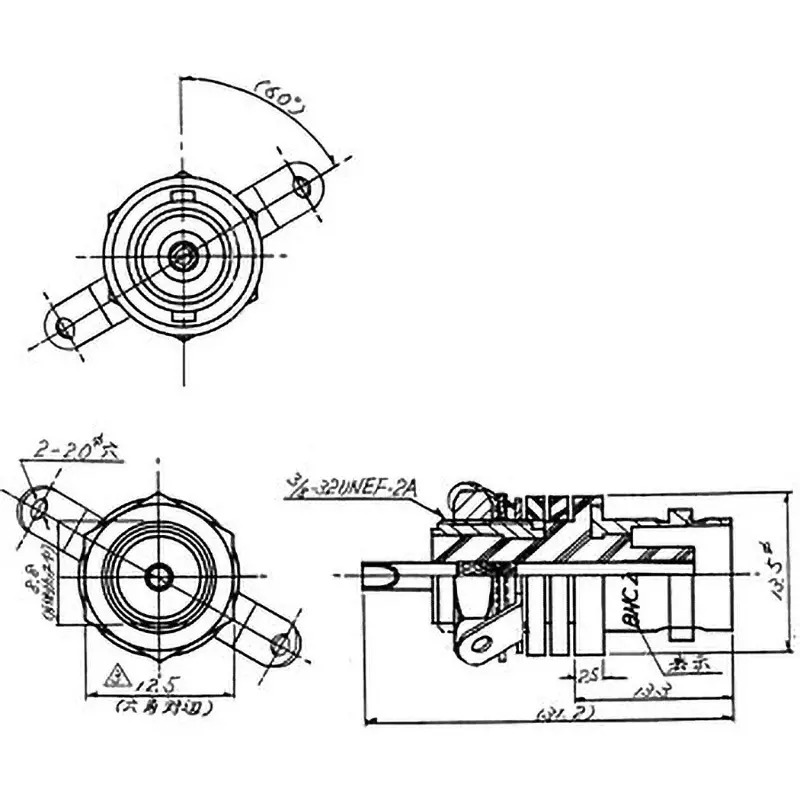

Dimension C |
13.5 mm |
Name of Manufacturer/Packer/Importer |
Tajimi Wireless Electric Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Insulated type |
Dimension B (Φmm) |
12.7 |
Dimension A (Φmm) |
31.2 |
Characteristic Impedance |
50Ω |
Connection Type |
Bayonet lock system |
Contact Resistance (ohm) |
3 mΩ or less |
Insulation Resistance (MOhm) |
000 or more (at 500 V DC) |
Dimension d |
2.5 mm |
Frequency Range (MHz) |
DC to 4000 (depending on the cable) |
Dimension E (Φmm) |
10.8 mm |
Withstand Voltage |
1,500 VAC for 1 minute |
Connector Shape |
Bulkhead receptacle |
