Ships within 19 days
View
View
View
View
| Type of Product | BNC Connector |
| Model No | BNC777-P |
| Country of Origin | Japan |
| Monotaro ID | 87878436 |
Type of Product |
BNC Connector |
Model No |
BNC777-P |
Country of Origin |
Japan |
Monotaro ID |
87878436 |

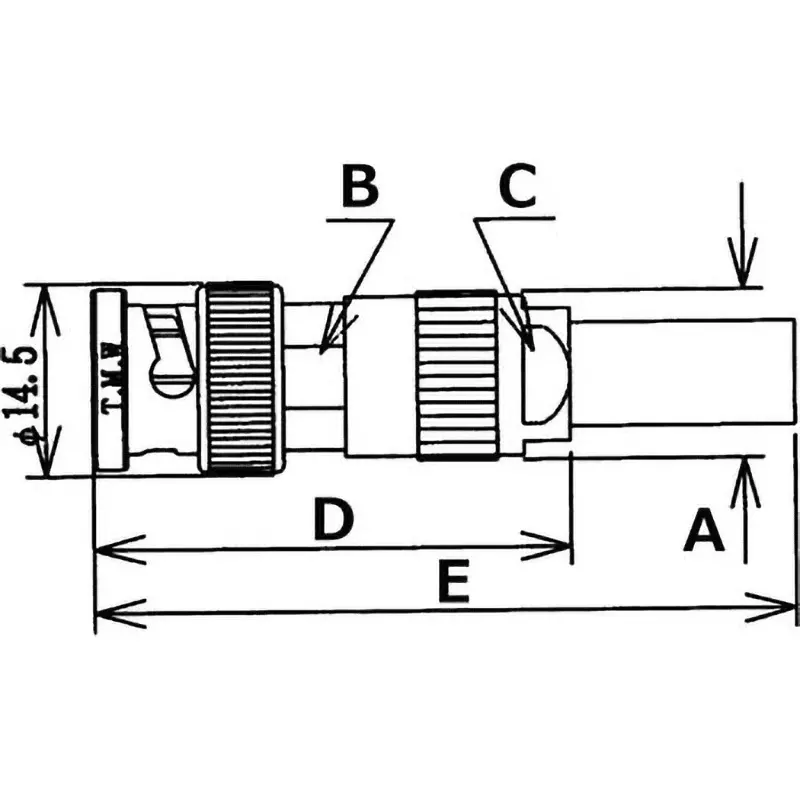

Dimension C |
10 mm |
Name of Manufacturer/Packer/Importer |
Tajimi Wireless Electric Co., Ltd. |
Insulator Material |
Teflon |
Import Country |
Direct Import from Japan |
Specifications |
(Cable connection strength) 3C-2V / 25Kgf or more, 5C-2V / 50Kgf or more, 5C-FB / 25Kgf or more |
Suitable Cable |
3C-2V, 5C-2V, 5C-FB |
Dimension B (Φmm) |
10 |
Dimension A (Φmm) |
12.6 |
Contact Resistance (ohm) |
3 mΩ or less |
Insulation Resistance (MOhm) |
1000 or more (at 500 V DC) |
Dimension d |
36 mm |
Dimension E (Φmm) |
53 mm |
Withstand Voltage |
AC1500 / 1 minute |
Connector Shape |
Plug |
Material (Shell) / Finish |
Brass / Nickel plating |
