| Model No | XVSV9MWN |

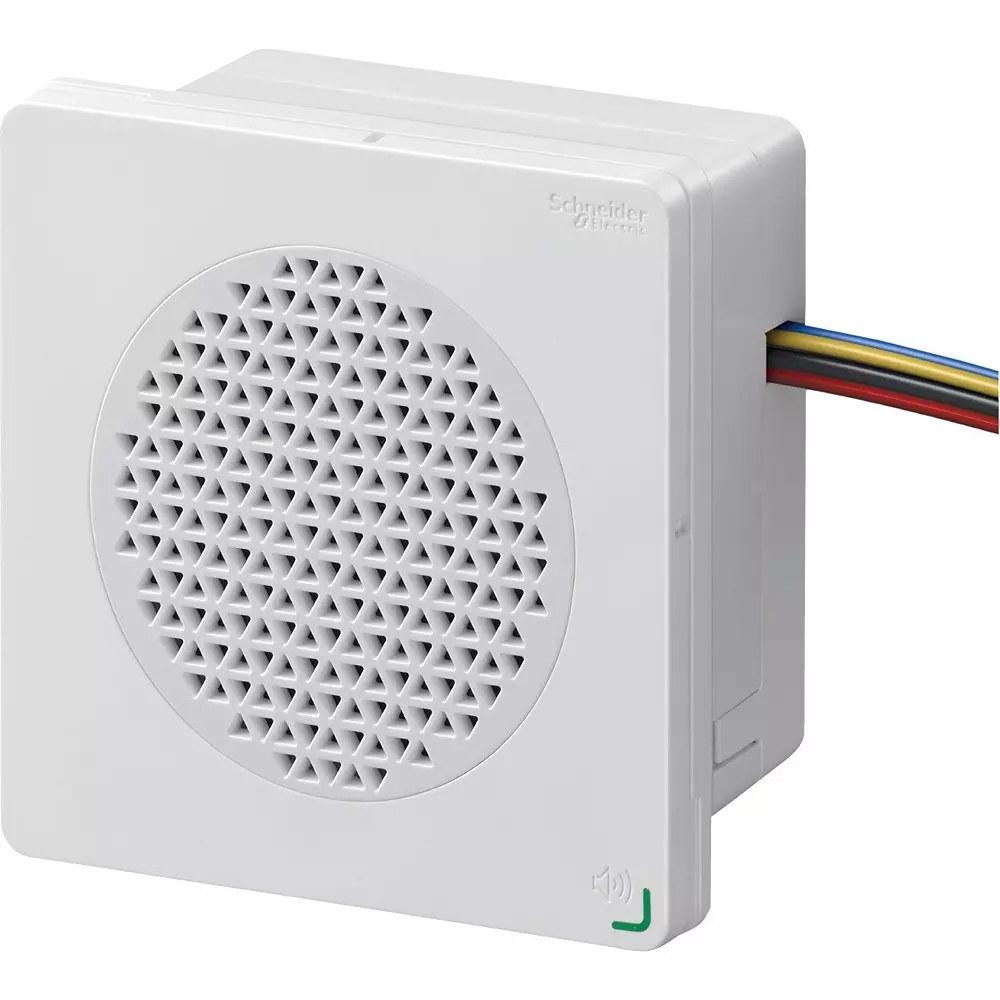

| Type of Product | Thin-Body Cone Speaker |
| Connector | NPN open collector connection |
| Country of Origin | Japan |
Model No |
XVSV9MWN |
Type of Product |
Thin-Body Cone Speaker |
Connector |
NPN open collector connection |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Material |
Front panel: Thermoplastic elastomer (dark gray or white), Body: ABS resin (dark gray or white), Mounting bracket: SPCC (trivalent chromium chromate plating) |
Interface |

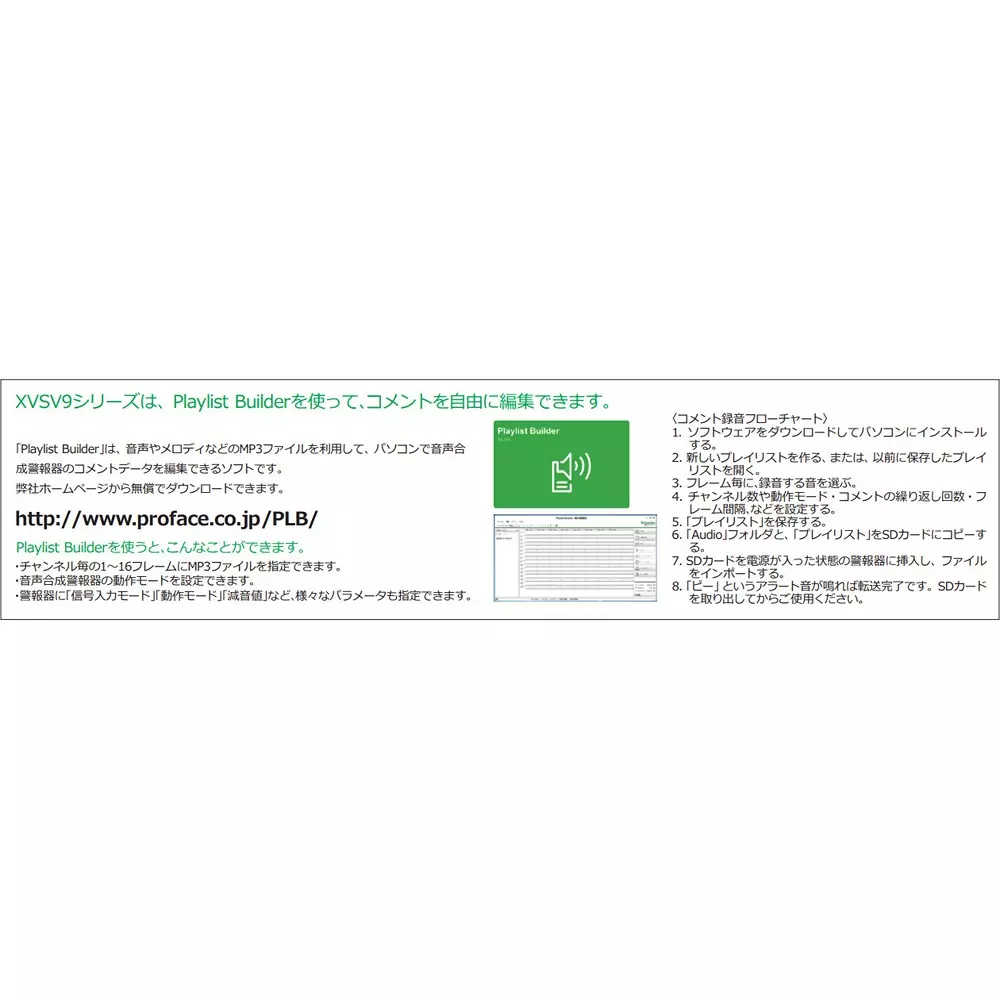

[Audio] SD card slot (FAT32 2MB or larger SD card recommended) |
Monotaro ID |
39589498 |
Import Country |
Direct Import from Japan |
Voice |
PCM (speech synthesis method), number of comments: 6 types (63 types in binary), recording time: total 256 seconds (64Kbit/s) |
Rated Output (W) |
1 |
Read Time |
Continuous |
Operating Voltage Range (V) |
AC 90 to 264 |
Contact Capacity |
16V or more and 10mA or more |
Rated Voltage (V) |
AC 100 to 230 |
Options |
[Model Number] XVSZ016 (Wall Mount Plate) / 0SD (SD Card) |
Power Consumption (W) |
10 |
Sound Pressure Level (dB) |
Maximum 97 (1 m ahead) |

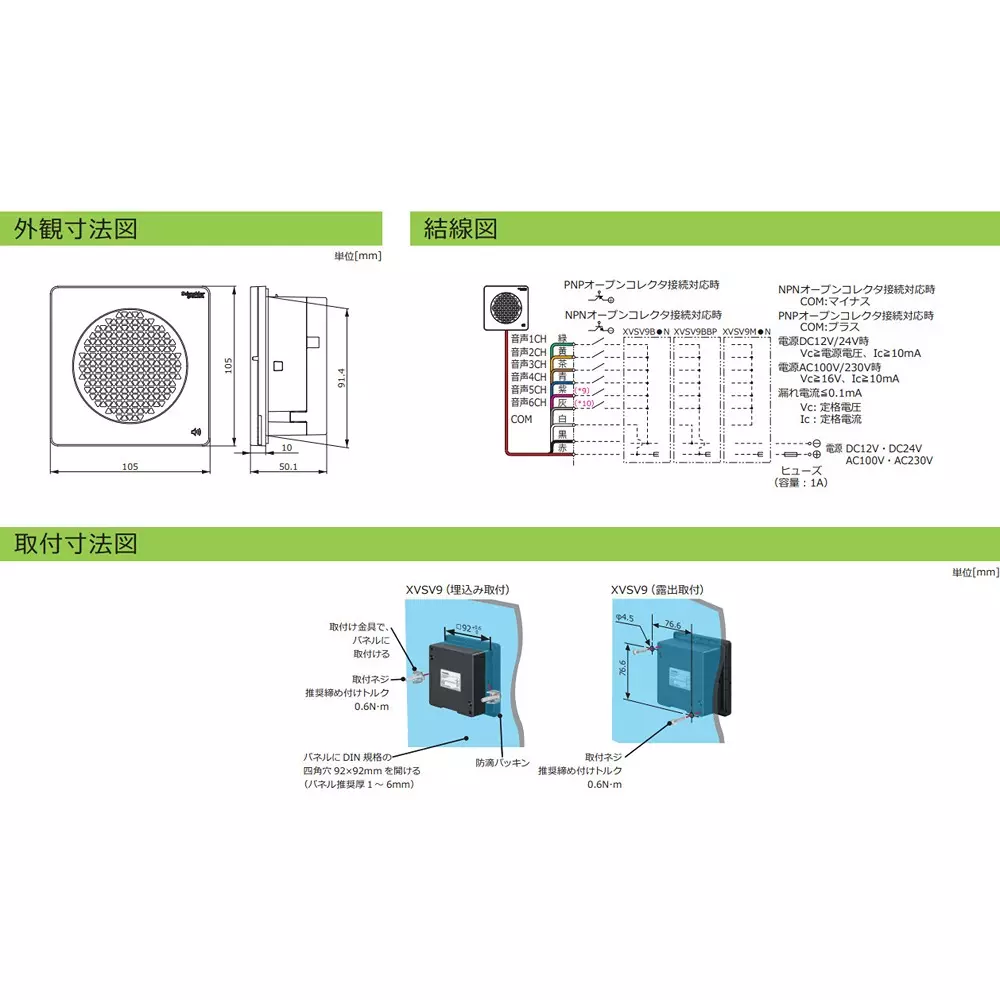

Mounting |
DIN (96x96) standard installation |
