| Model No | XP-302M-RB-3 (Isobutane (HC) specification) |
| Type of Product | Multi-Type Gas Detector |
| Power Supply | 4 AA alkaline batteries |
| Measurement Range | (Combustible gas)-, (Oxygen) 25.1-50vol%, (Hydrogen sulfide) 30.1-150 PPM |
Model No |
XP-302M-RB-3 (Isobutane (HC) specification) |
Type of Product |
Multi-Type Gas Detector |
Power Supply |
4 AA alkaline batteries |
Measurement Range |
(Combustible gas)-, (Oxygen) 25.1-50vol%, (Hydrogen sulfide) 30.1-150 PPM |
Detectable Gas |
Combustible gas (isobutane (C4H10 (HC))), oxygen (O2), hydrogen sulfide (H2S) |
Alarm |
Buzzer (90 dB or more), LCD display blinking, red lamp blinking |
Included Components |
8m gas introduction pipe, sampling float, external alarm (with 8m cable), AC adapter, aluminum case |
Country of Origin |
Japan |
Display Type |

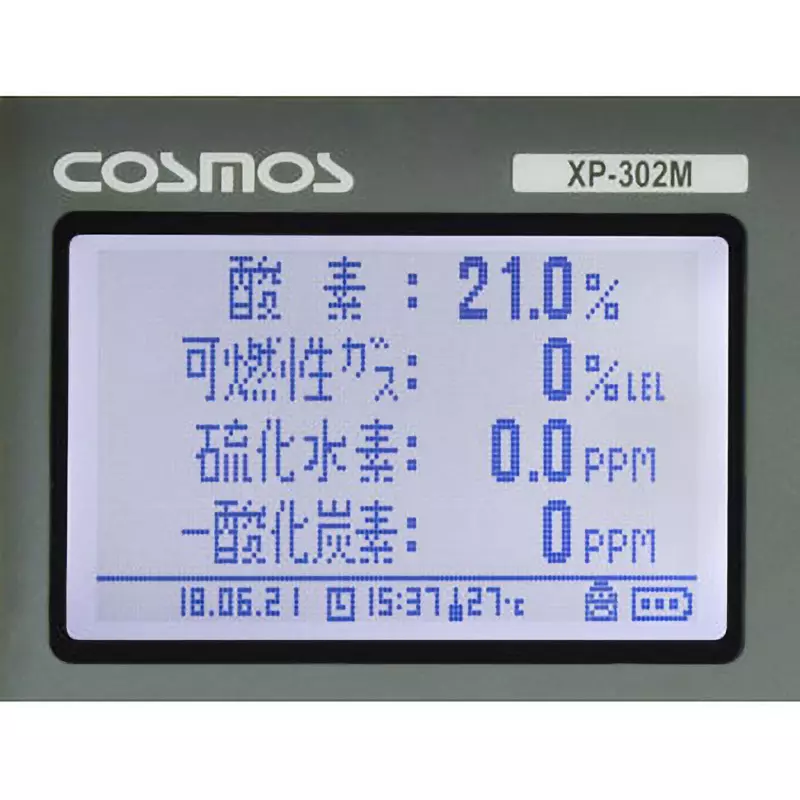

LCD display (switchable between normal display / graph display / Japanese display) |
Name of Manufacturer/Packer/Importer |
Shin-Cosmos Electric Co., Ltd. |
Function |
Automatic backlight, zero adjustment, peak hold, volume adjustment, flow rate drop detection (pressure sensor), data logging, buzzer stop, alarm test, battery level display, temperature / clock display |
Gas Type |
3 |
Import Country |
Direct Import from Japan |
Monotaro ID |
31366257 |
Mass (g) |
Approximately 870 (including batteries) |
Explosion-Proof Structure |
Intrinsically safe explosion-proof (Exia II BT3), flammable gas sensor has a pressure-resistant explosion-proof structure |
Alarm Setting Value |
(Combustible gas) 1st stage: 10% LEL, 2nd stage: 30% LEL, (Oxygen) 1st stage: 19.5vol%, 2nd stage: 18.0vol%, (Hydrogen sulfide) 1st stage: 10ppm, 2 Stage: 15ppm |
Type of Sample |
Automatic suction type |
Response Time (seconds) |
(Combustible gas) 30 or less, (Oxygen) 20 or less, (Hydrogen sulfide) 30 or less |
Operating Temperature Range |
-10 to 40 ℃ |
Operating Humidity Range |
95% RH or less (without condensation) |
Principle |
(Combustible gas) Contact combustion type, (Oxygen) Galvanic cell type, (Hydrogen sulfide) Constant potential electrolysis type |
Continuous Operating Time (hrs) |
8 or more (when using alkaline batteries, 20 ° C, alarm / backlight / data logging OFF) |
Outer Dimensions, Width W x Height H x Depth D (mm) |
152 x 152 x 42 (excluding protrusions) |
Detection Range |
(Combustible gas) 0-100% LEL, (Oxygen) 0-25.0vol%, (Hydrogen sulfide) 0-30.0 PPM |
Indication Accuracy |
(Combustible gas) within ± 5% LEL, (oxygen) within ± 0.5vol%, (hydrogen sulfide) within ± 1.5 PPM |
