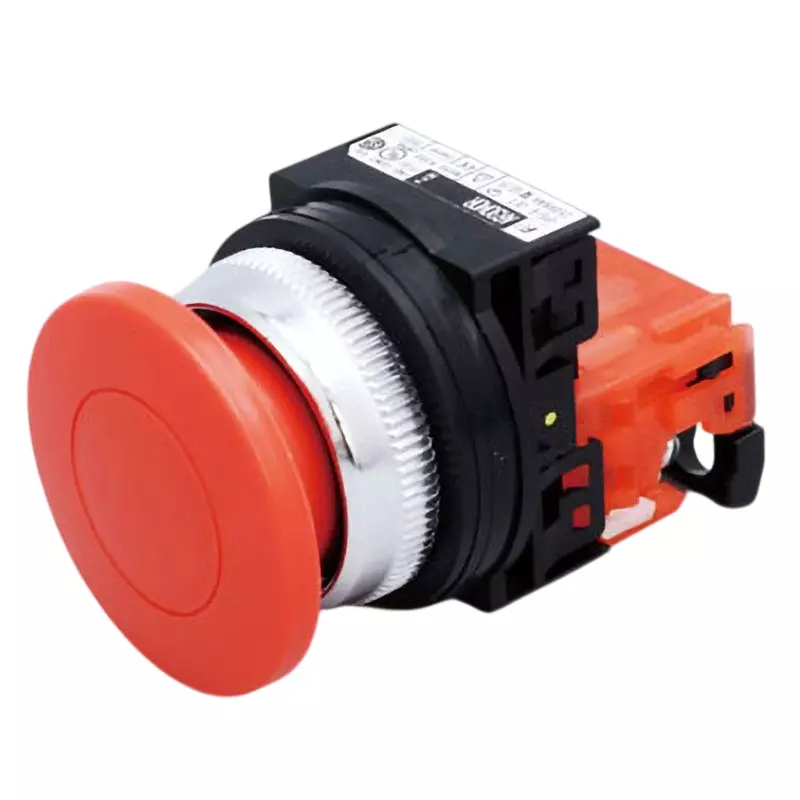

| Type of Product | Command Switch |
| Monotaro ID | 50064287 |
| Type | Non-Illuminated Type |
| Protection Class | IP65 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Command Switch |
Monotaro ID |
50064287 |
Type |
Non-Illuminated Type |
Protection Class |
IP65 |
Terminal Shape |
Screw terminal |
Button Shape |
Round (large) |
Import Country |
Direct Import from Japan |
Model No |
AR30M0R-01RZM |
Operation Type |
Momentary |
Mechanical Durability |
5 million times or more |
Button Color |
Red |
Electrical Durability |
500,000 times or more (at AC220V 6A), 1 million times or more (at AC220V 3A) |
Contact Configuration |
1B |
Storage Temperature |
-40 to 80℃ |
Short Circuit Protection Device |
Fuse 15A |
Mounting Dimensions (mm) |
Φ30.5 |
Terminal Screw |
M3.5 plus/minus screw with square washer (self-lifting type) |
Frame |
Round frame |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Insulation Resistance (MOhm) |
Between live parts and earth/between live parts of different polarities: 100 or more (DC 500V megger) |
Rated Insulation Voltage (V) |
AC/DC 600 |
Operation Ambient Temperature (°C) |
-20 to 70 (no freezing or condensation) |
Rated Frequency (Hz) |
50/60 |
Standard |
UL, CSA, TUV |
