| Monotaro ID | 39103285 |
| Type of Product | Flat Cable Connector |

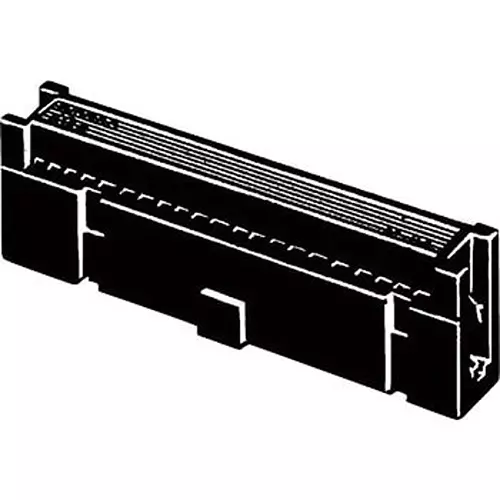

| Model No | XG4M-6430 |
| Rated Voltage (V) | 250 |
Monotaro ID |
39103285 |
Type of Product |
Flat Cable Connector |
Model No |
XG4M-6430 |
Rated Voltage (V) |
250 |
Suitable Wire |
1.27 mm pitch flat cable AWG28 (7 strands) |
Rated Current (A) |
1 |
No. of Pole |
64 |
Type |
MIL-Type Socket |
Pack of |
1 Pcs |
Country of Origin |
Japan |
Shape |
MIL type socket |
Import Country |
Direct Import from Japan |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Operating Temperature Range |
-55 to +105℃ (no freezing at low temperatures) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Applicable Standard |
MIL standard (MIL-C-83503) / UL standard (File No. E103202) certified / RoHS compliant |
Polarity Guide |
1 |
Total Insertion Force |
Number of polesx1.96N or less |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Cover Material |
Glass-filled PBT resin (UL94V-0) / Black |
Terminal Connection Type |
Crimping |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Cell Spacing (mm) |
1.27 |
Dimension B (Φmm) |
78.739999999999995 |
Contact Connection Part Material |
Phosphor bronze |
Contact Terminal Pressure Connection Part Material |
Phosphor bronze |
Dimension A (Φmm) |
85.8 |
