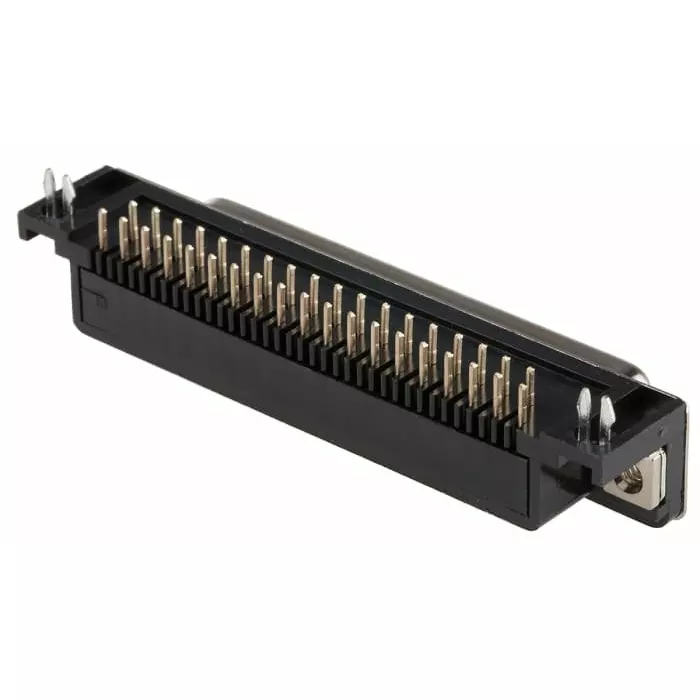

| Type of Product | Connector Socket |
| Model No | 2395928 |
| Length | 69.32 mm |
| Country of Origin | United Kingdom |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Connector Socket |
Model No |
2395928 |
Length |
69.32 mm |
Country of Origin |
United Kingdom |
Dimension |
69.32 x 18.4 x 12.5 mm |
Width |
18.4 mm |
Gender |
Female |
Depth |
12.5 mm |
Pitch |
2.77 mm |
Current Rating |
5.0 A |
Voltage Rating |
350.0 V |
Contact Material |
Phosphor Bronze |
Contact Plating |
Gold |
Orientation |
Right Angle |
Housing Material |
PET |
No. of Contacts |
37 |
Termination Method |
Solder |
Maximum Operating Temperature |
+105°C |
Mounting Type |
Through Hole |
Minimum Operating Temperature |
-55.0°C |
Mounting Hardware |
4-40 UNC, Threaded Insert |
Name of Manufacturer/Packer/Importer |
RS Component |
