| Type of Product | Connector Housing |
| Model No | 1969614-8 |
| Series | VAL-U-LOK |
| Country of Origin | Japan |
Type of Product |
Connector Housing |
Model No |
1969614-8 |
Series |
VAL-U-LOK |
Country of Origin |
Japan |
Housing Material |
Nylon |
No. of Contacts |
8 |
Housing Type |
Straight |
Monotaro ID |
47269426 |
Pack of |
10 Pcs |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Specifications |

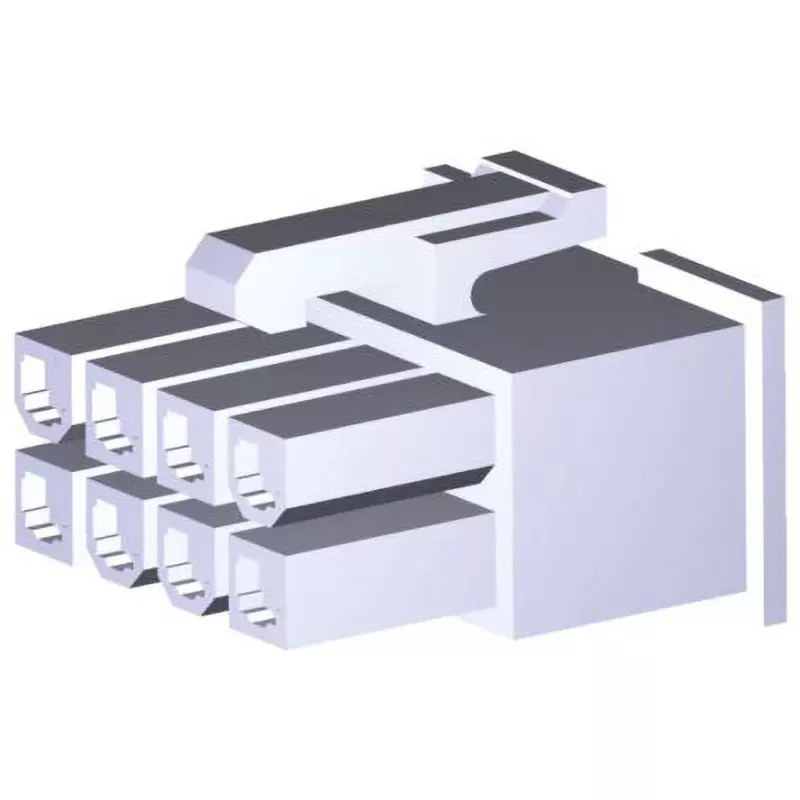

TE Connectivity VAL-U-LOK 4.2 mm Receptacle Housing, TPA (Terminal Position Assurance) Compatible. Val-U-Lok Double Row Receptacle Housing has a center line of 4.2 mm and is a product for wire-to-wire and wire-to-board applications. is. It is easy to mate and remove, and the mate position is accurately determined by keying, and it is firmly connected by the integrated housing lock latch. The new VAL-U-LOK 4.2 mm receptacle housing is compatible with optional TPA (Terminal Position Assurance) devices. The TPA device secures the terminal completely to the housing and prevents the terminal from falling off due to vibration, impact, or pulling. The VAL-U-LOK receptacle housing is available in two materials. Manufacturer part number X-1969614-X is UL 94V-0 grade nylon housing Glow Wire Test) TPA device sold separately. Typical product number: 811-6752 Check 811-6752. Crimp receptacle contacts are sold separately. Part no .: 123-4879 Please check 123-4879. VAL-U-LOK TPA product connectors mate with existing VAL-U-LOK connectors and headers. Features and benefits. Easy mating and removal Accurate mating positioning with keying Secure connection with integrated housing lock latch Prevents terminals from falling off with TPA (Terminal Position Guarantee) Applications. VAL-U-LOK Receptacle Housing Can be used for a wide range of applications. Main applications: Home appliances Desktop computers Indoor / outdoor lighting Security systems Industrial controls Air conditioning control systems Storage devices and networking systems |
Width (mm) |
19.8 |
Length (mm) |
18 |
Cell Spacing (mm) |
4.2 |
suitable crimping terminal |
Wire-to-wire connector |
Male/Female(A/B) |
Female |
Number Of Lines |
2 |
Depth (mm) |
11.7 |
Type of Sign |
Cable mount |
