Ships within 19 days
View
View
View
View

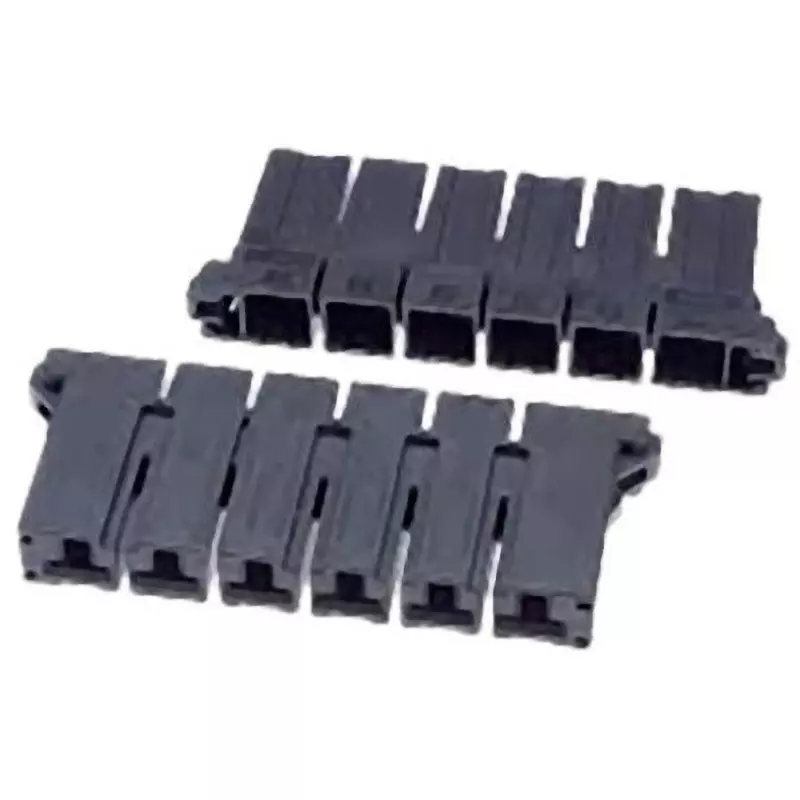

| Type of Product | Connector Housing |
| Model No | 2-179958-6 |
| Series | Dynamic 5000 |
| Country of Origin | Japan |
Type of Product |
Connector Housing |
Model No |
2-179958-6 |
Series |
Dynamic 5000 |
Country of Origin |
Japan |
Housing Material |
PET |
No. of Contacts |
6 |
Housing Type |
Straight |
Monotaro ID |
47268638 |
Pack of |
70 Pcs |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Specifications |
For products that mate with D-5200 series headers, see typical part number: 706-8022 706-8022 For D-5000 series contacts, see typical part number: 680-5107 680-5107. TE Connectivity DYNAMIC D-5200S / D-5200M 10.16 mm tab and receptacle housing. Dynamic D-5200 series tab and receptacle connector housings feature compact, vibration-resistant design and high current capacity. The D-5200S version has a standard one-row configuration, while the D-5200M has a modular two-row configuration. The D-5200 connector housing has a locking lance that locks the contacts in place and prevents damage during mating. A click will be heard when the contact is fully seated in the housing. The D-5200 crimp housing has a keying rib that prevents mismating and prevents displacement and twisting between the housings when mated. The locking levers on both sides of the housing can be securely engaged and confirmed by clicking into place. It can also be visually confirmed by the installation confirmation line on the housing. The crimp receptacle and tab contact of the Dynamic D-5200 connector housing must be purchased separately. Features and benefits. Compact, vibration-resistant design Locking lance that holds the contact securely Keying rib that prevents mis-mating and displacement Lock lever that makes the mating and secure connection Click sound is heard when mated securely Visually Installation lines that can be checked. Product information. DYNAMIC D-5200S connector is suitable for high current power line applications. |
Width (mm) |
9.8 |
Length (mm) |
74 |
Cell Spacing (mm) |
10.16 |
suitable crimping terminal |
Wire-to-board connector |
Male/Female(A/B) |
Female |
Number Of Lines |
1 |
Depth (mm) |
29 |
Type of Sign |
Cable mount |
