Ships within 25 days
View
View
View
View
| Monotaro ID | 60011226 |

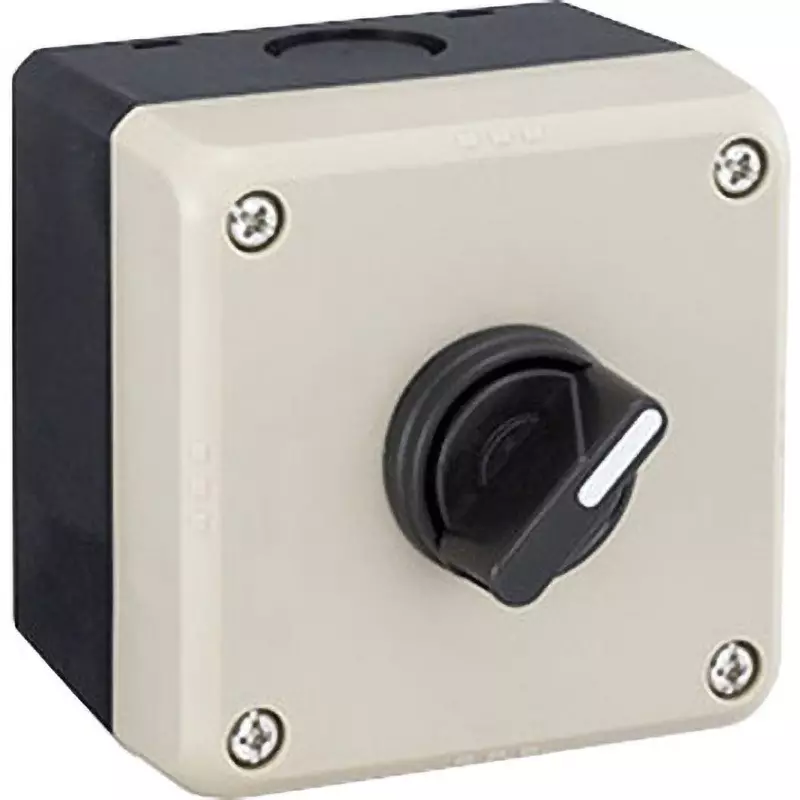

| Type of Product | Fb Type Resin Control Box With Semi Emo Display |
| Model No | FB1W-HW1S-2T11-Z1 |
| Suitable For | HW / TW / XW series control unit and accessories (made by IDEC) |
Monotaro ID |
60011226 |
Type of Product |
Fb Type Resin Control Box With Semi Emo Display |
Model No |
FB1W-HW1S-2T11-Z1 |
Suitable For |
HW / TW / XW series control unit and accessories (made by IDEC) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mounting Unit |
Selector switch (2-notch, stops at each position, arrow-shaped handle, black) |
Protection Class |
IP65 (when equipped with compatible model), NEMA Type 4X Indoor Use Only (when equipped with NEMA Type 4X compatible model), NEMA Type 1 (when equipped with Type 4X non-compatible model) |
Relative Humidity |
45% to 85% (with no condensation) |
Storage Temperature Range |
-40 to 80℃ (no icing) |
Operation Environment |
Pollution degree 3 |
Box |
76 mm |
Electric Shock Protection Class |
ClassⅡ (when compatible models are installed) |
Applicable Standard |
EC/EN60529, UL508, UL50, CSA C22.2 No.14, CSA C22.2 No.94 |
Included Components |
Selector switch (2-notch, stops at each position, arrow-shaped handle, black) |
Contact Configuration |
1a1b |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Number of Holes |
1 |
Operation Ambient Temperature (°C) |
-25 to 60 (no icing) |
Diameter of Unit Mounting Hole (Φmm) |
22 |
Box Material |
Cover/base: Polycarbonate, Cover mounting screws: Stainless steel |
Nameplate Display Characters |
Name plate sold separately |
Mass (g) |
125 |
Display |
Name plate sold separately |
