| Type | For one point |
| Monotaro ID | 6914205 |

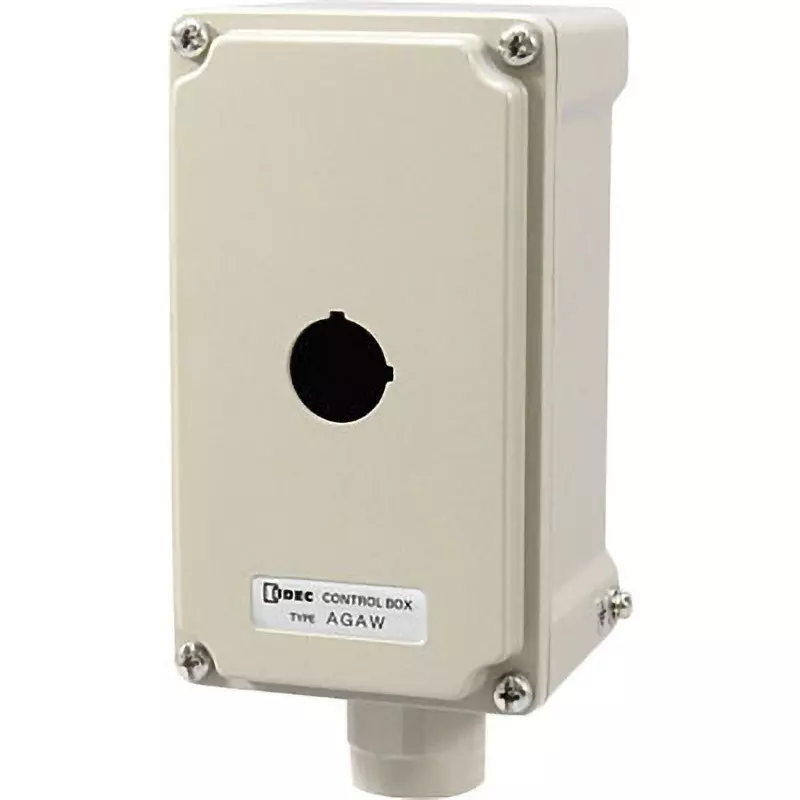

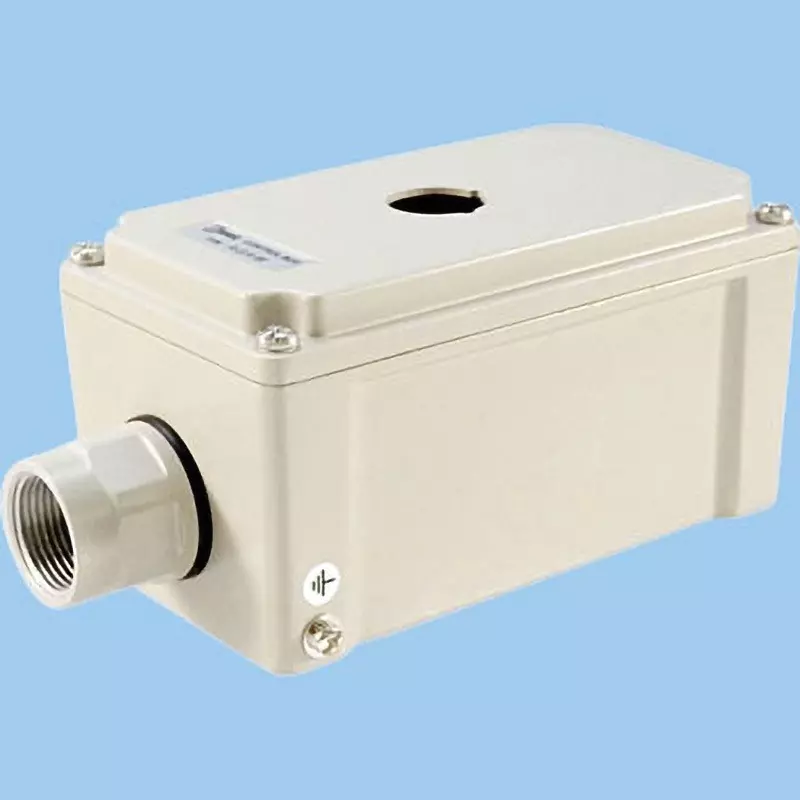

| Type of Product | Control Box (Designated Mounting Unit) |
| Model No | AGAW211Y |
Type |
For one point |
Monotaro ID |
6914205 |
Type of Product |
Control Box (Designated Mounting Unit) |
Model No |
AGAW211Y |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Paint Color |
5Y7, 1 semi-gloss (outer surface of container only) (powder coating) |
Mounting Unit |
IDEC Φ22 control unit |
Protection Class |
IP65 (IEC 60529), jet-proof type (JIS C 0920) |
Relative Humidity |
45% to 85% (with no condensation) |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Insulation_Resistance (MΩ) |
5 or more |
Length (mm) |
70 (effective box dimensions) |
Rated Carrying Current (A) |
10 |
Operation Ambient Temperature (°C) |
-25-50 (no icing) |
Diameter of Unit Mounting Hole (Φmm) |
22.2 (with non-rotating hole processing) |
Rated Insulation Voltage (V) |
600 |
Dimensions I (mm) |
114 |
Mass (Kg) |
About 0.6 |
Dimension L (mm) |
150 |
Dimension T |
2 mm |
Painting |
Included |
