| Type | For one point |
| Monotaro ID | 6914993 |

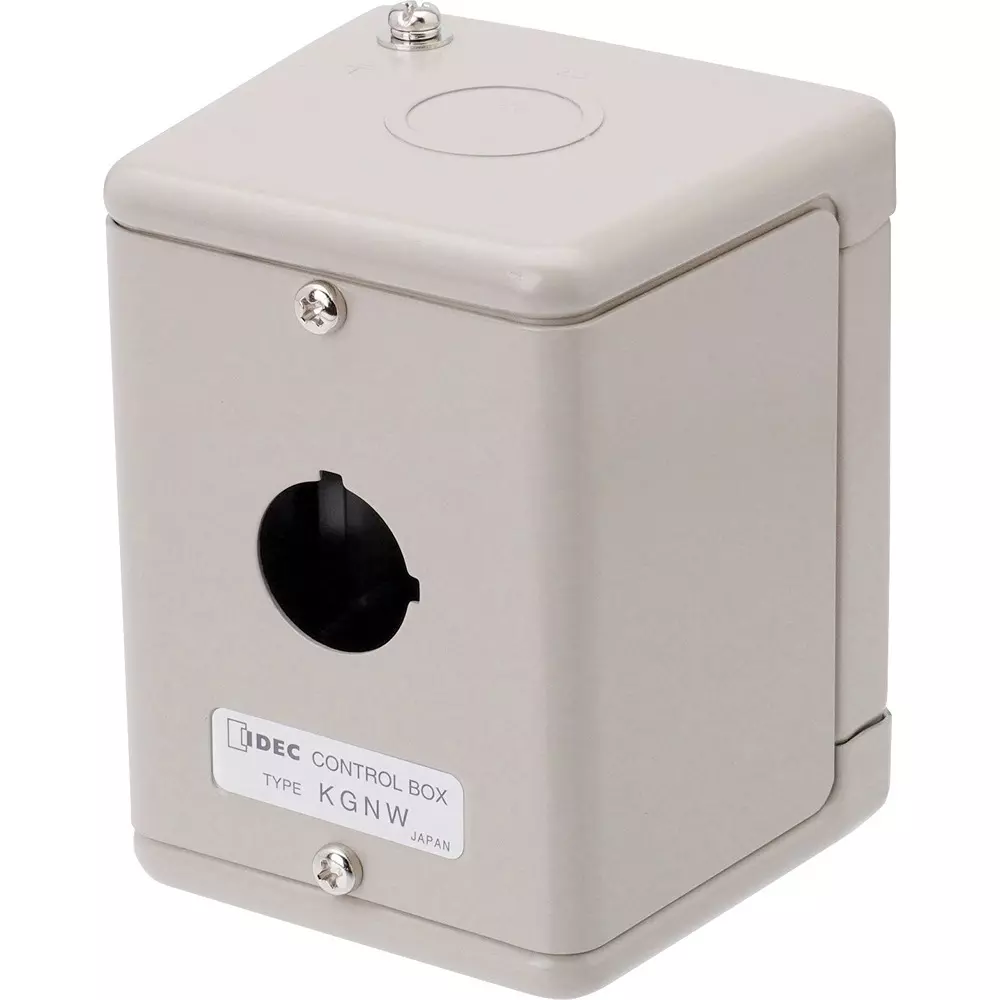

| Type of Product | Kgnw Type Control Box |
| Model No | KGNW111Y |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
For one point |
Monotaro ID |
6914993 |
Type of Product |
Kgnw Type Control Box |
Model No |
KGNW111Y |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Paint Color |
5Y7/1 Half gloss |
Protection Class |
IP40(IEC 60529・JEM1030) |
Relative Humidity |
45~85% (non-condensing) |
Cable Entry Hole |
Double knockout/box upper surface/Φ22, Φ27/box lower surface/Φ16, Φ20 |
Withstand Voltage |
2500 VAC for 1 minute (between charged and uncharged parts) |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Number of Holes |
1point |
Unit Mounting Hole |
Included |
Insulation_Resistance (MΩ) |
5 or more |
Operation Ambient Temperature (°C) |
-25~50 (no freezing) |
Diameter of Unit Mounting Hole (Φmm) |
22.2 (With counterbore) (1 location) |
Rated Insulation Voltage (V) |
600 |
Mass (Kg) |
About 0.4 |
Dimension L (mm) |
100 |
Hole Diameter (Φmm) |
22.2 |
Box Material |
Steel plate |
