| Type of Product | Safety Controller Relay |

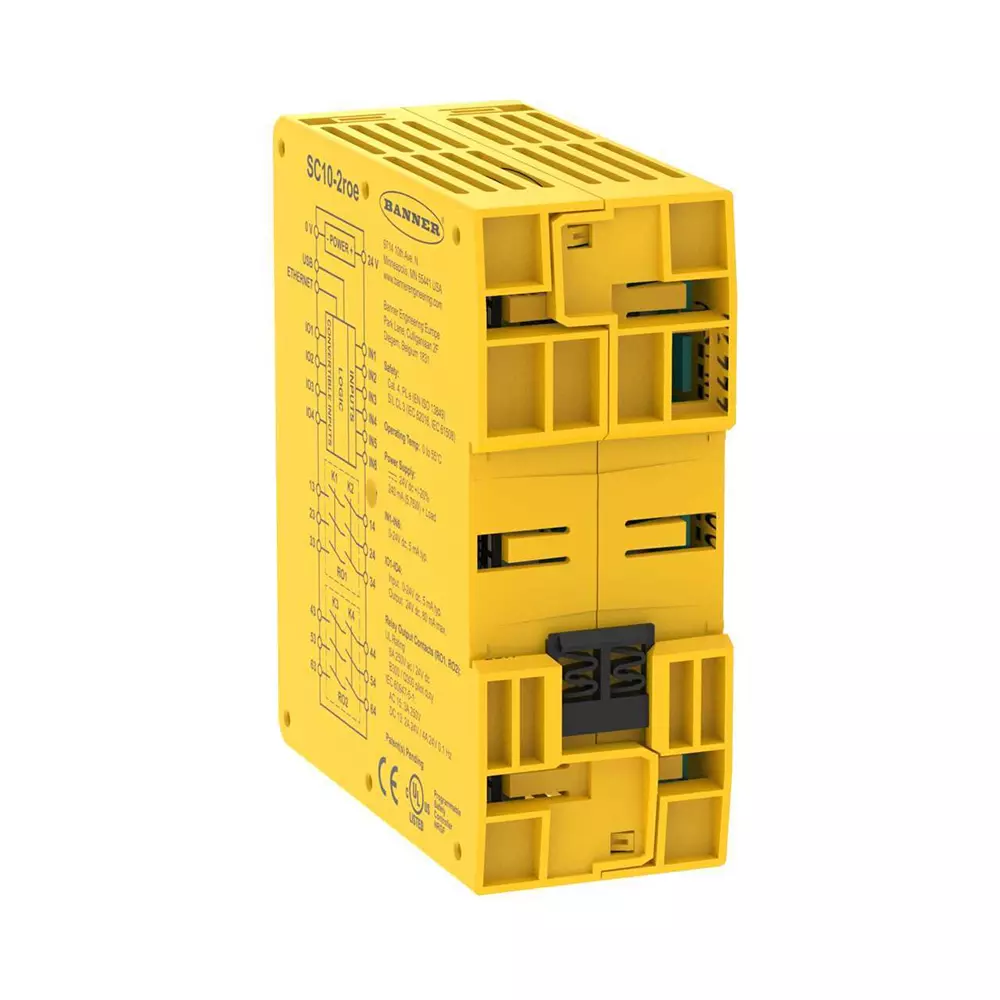

| Model No | SC10-2ROE (806222) |
| Country of Origin | India |
| Relative Humidity | 90% @ 50 ° C |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Safety Controller Relay |
Model No |
SC10-2ROE (806222) |
Country of Origin |
India |
Relative Humidity |
90% @ 50 ° C |
Dimension |
115 x 45 x 100 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Configuration |
Input Configuration |
Supply Voltage |
24 V DC |
Maximum Operating Temperature |
55 °C |
Terminal Type |
Spring Clamp |
IP Rating |
IP20 |
Expandable |
No |
Category Rating |
4 |
LCD Display |
No |
Vibration |
9-150 Hz at 1g occasional/0.5 g continuous |
Power Consumption |
0.24 A (no load, relays on), 0.53 A (full load, relays on) |
Mechanical Life |
20 M |
Device Type |
Safety Controller |
Number of Safety Inputs |
10 |
Electrical Life |
50,000 @ full resistive load |
Response Time (mS) |
See Software Configuration Summary |
Output Configuration |
2 sets of 3 NO |
Input |
Simultaneous or Concurrent |
Module Type |
Base Controller |
In-Series Diagnostics |
Yes |
Number of Convertible Inputs |
4 |
Power Source |
DC |
Recovery time |
250 (typical), 400 (max) |
EPLAN Status |
Published |
PROFINET |
Yes |
Input Resistance |
150 O max. per lead |
Safety Mat |
Yes |
Light Curtains/Scanner with EDM Input |
Yes |
Light Curtains/Scanner without EDM Input |
Yes |
Common Ethernet Protocol |
No |
PCCC |
Yes |
Muting |
Yes |
Gate Switch (NC/NC) Input |
Yes |
Gate Switch (NC/NO) Input |
Yes |
Gate Switch (OSSD) Input |
Yes |
Motor Speed |
No |
E-Stops/Rope Pulls |
Yes |
Two-Hand Controls |
Yes |
Modbus |
Yes |
Ethernet |
Yes |
SIL Rating |
3 |
SISTEMA |
PFHd = 5.0 x 10-10 |
THC Rating |
IIIC |
Safety Input - Single Channel |
5-50 mA @ 24 V DC |
Non Safe Output Configuration |
Up to 4 PNP |
Non Safe Output Rating |
80 mA @ 24 V DC (individual) maximum; overcurrent protected |
Safe Output Rating |
Relay - 6 A |
Splittable Safe Output |
No |
Safety Input - Dual Channel (Solid-State) |
50 mA @ 15 - 30 V DC |
Safety Input - Reset |
5-50 mA @ 24 V DC |
Independently Controlled Safe Outputs |
2 |
