Ships within 25 days
View
View
View
View

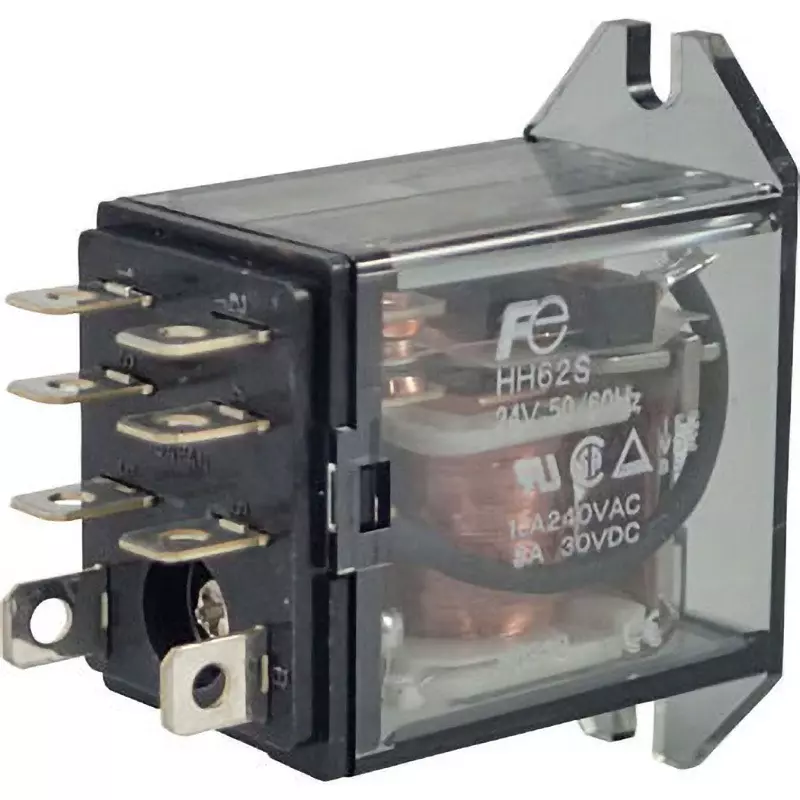

| Type of Product | Standard Type Power Relay |
| Model No | HH62S AC24V |
| Country of Origin | Japan |
| Type | Power Relay |
Type of Product |
Standard Type Power Relay |
Model No |
HH62S AC24V |
Country of Origin |
Japan |
Type |
Power Relay |
Standard |
c-UL, TUV |
Contact Configuration |
2C |
Monotaro ID |
50210614 |
Terminal Shape |
Case front mounting |
CR Circuit |
None |
Function |
Standard goods |
Connection Type |
Case front mounting |
Operating Temperature Range |
-55 to 70℃ (at: 100% rated voltage applied, but do not allow freezing or condensation) |
No. of Pole |
2 |
Mass (g) |
About 33 |
Power Consumption (VA) |
50Hz: Approx. 1.2, 60Hz: Approx. 1.0 |
Import Country |
Direct Import from Japan |
Withstand Voltage |
Between coil and contact, and between c contacts: AC2000/1 each, Between contact gaps: AC1000V/1 minute, Between socket terminals: AC2000V/1 minute |
Frequency (Hz) |
50/60 |
Rated Insulation Voltage (V) |
250 |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Insulation Resistance (MOhm) |
100 or more at DC 500V Mega |
Rated Coil Voltage |
AC 24 V |
Protection Class |
In a case |
Type of Sign |
Case front mounting |
Outer Dimensions |
21.7x43x41 mm |
