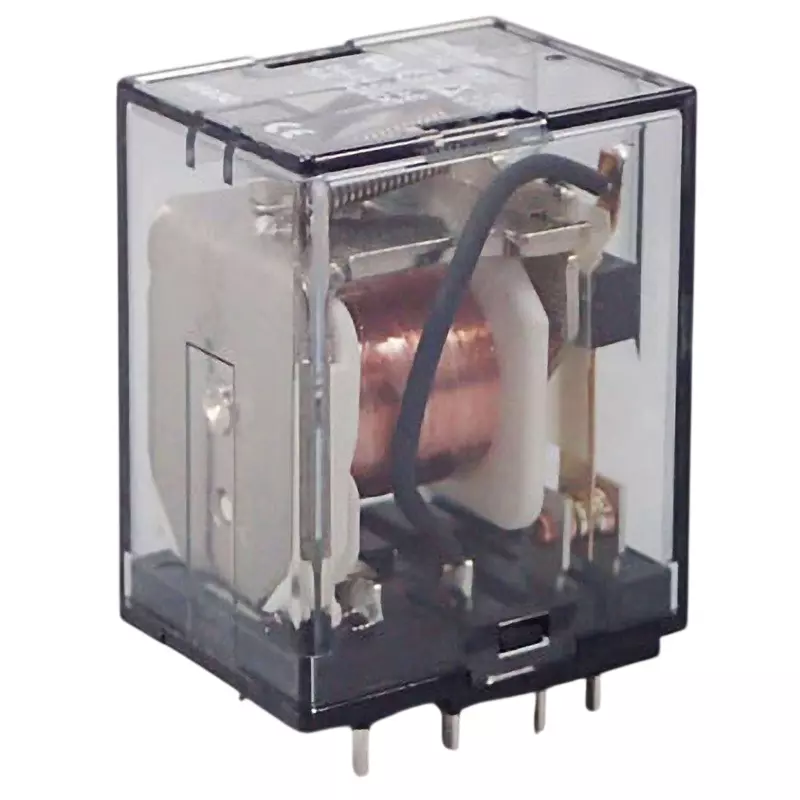

| Type of Product | Standard Type Mini Control Relay |
| Model No | HH52B AC48V |
| Country of Origin | Japan |
| Type | Control Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Standard Type Mini Control Relay |
Model No |
HH52B AC48V |
Country of Origin |
Japan |
Type |
Control Relay |
Standard |
c-UL, TUV |
Contact Configuration |
2C |
Monotaro ID |
50204357 |
Terminal Shape |
Printed circuit board terminal |
CR Circuit |
None |
Function |
Standard goods |
With or Without Diode |
None |
Operating Temperature Range |
-55 to 70℃ (no freezing or condensation) |
No. of Pole |
2 |
Mass (g) |
About 29 |
Import Country |
Direct Import from Japan |
Frequency (Hz) |
50/60 |
Rated Insulation Voltage (V) |
250 |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Power Consumption |
50Hz: approx. 1.2VA, 60Hz: approx. 1 VA |
Contact Resistance (ohm) |
50 mΩ or less (initial value) |
Insulation Resistance (MOhm) |
100 or more (with DC 500V mega) |
Rated Coil Voltage |
AC 48 V |
Protection Class |
In a case |
Type of Sign |
PCB mounting |
Outer Dimensions |
21x27.8x40.6 mm |
