| Material | S55C |
| Type of Product | Precision Crimping Plier |
| Model No | PA-21 |
| Country of Origin | JAPAN |
Material |
S55C |
Type of Product |
Precision Crimping Plier |
Model No |
PA-21 |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
Engineer Co., Ltd. |
Type |

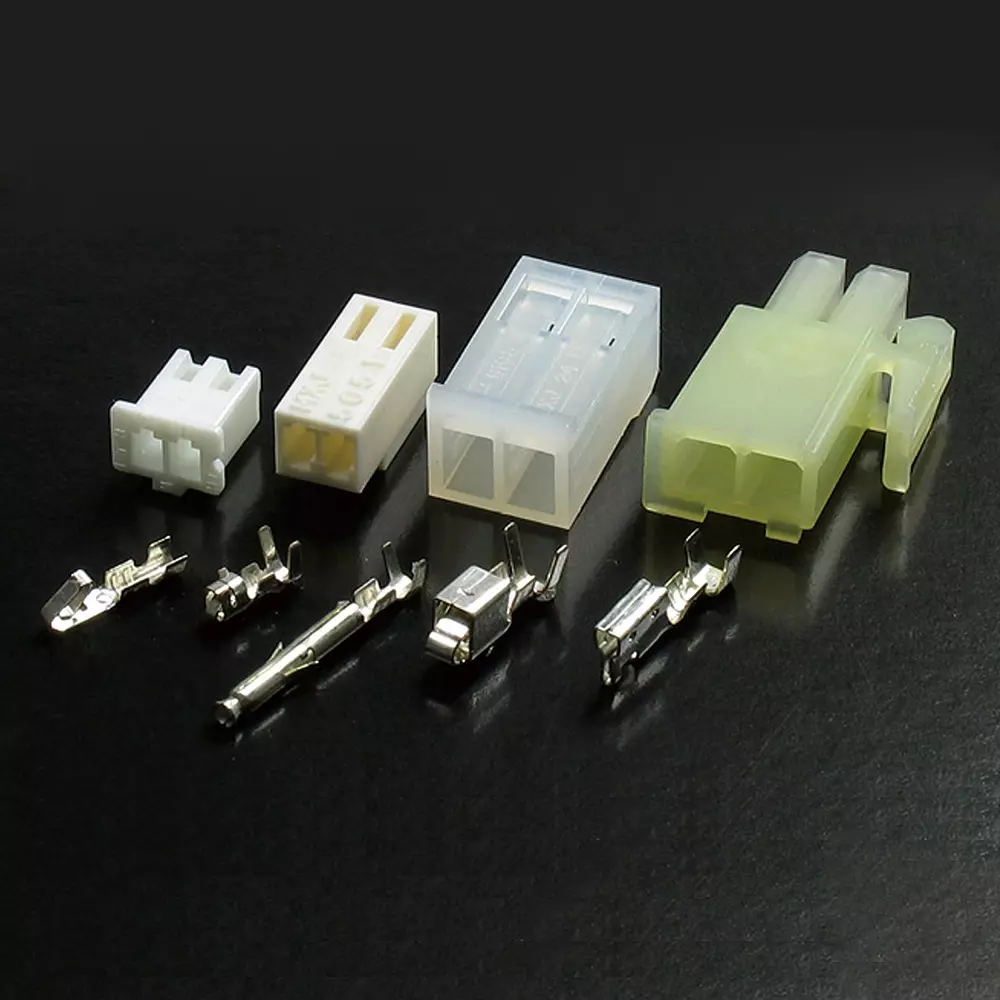

Over 100 types of terminals can be crimped to the ideal shape |
Monotaro ID |
32753025 |
Mass (g) |
145 |

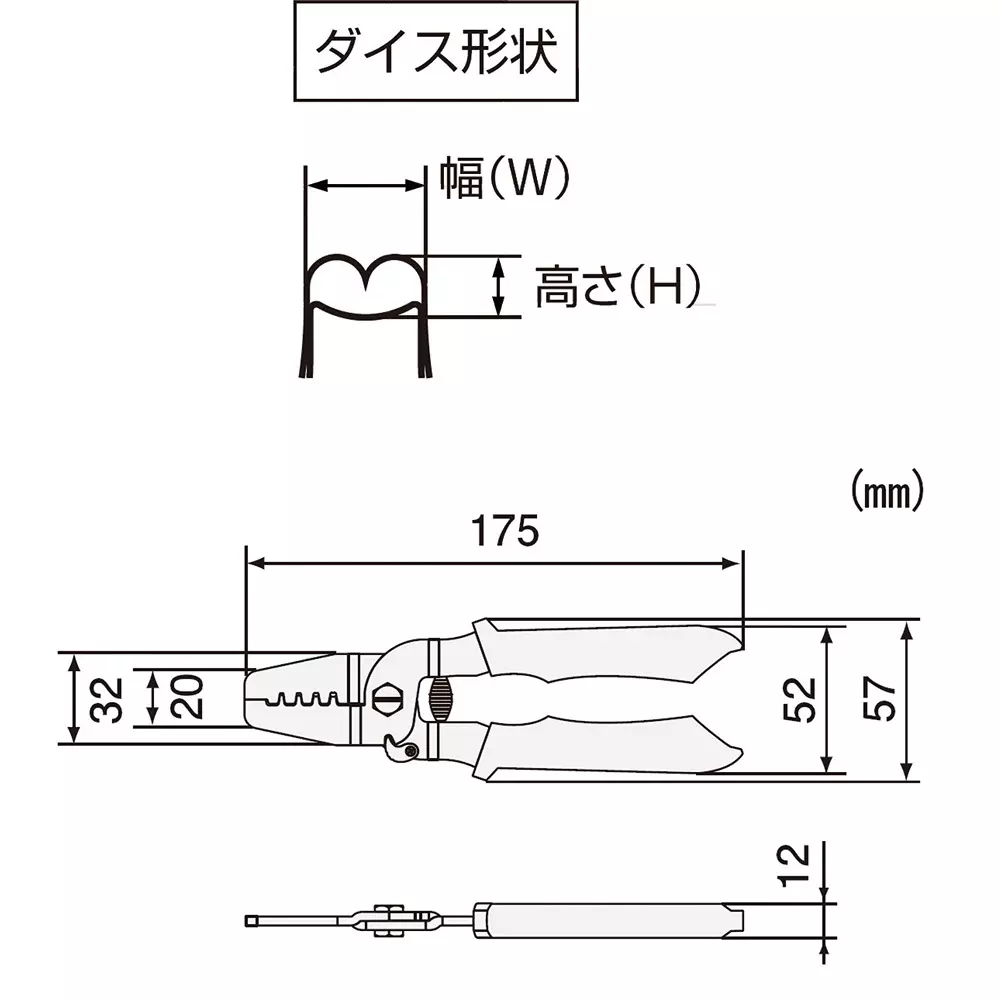

Dies Width (mm) |
1.6/1.9/2.2/2.5 |
Dies Thickness (mm) |
1.8t |
Dies Height (mm) |
0.8/1.0/1.2/1.4 |
Wire Crimping Range (AWG#) |
(Reference) 26 to 24/26 to 22/24 to 20/22 to 18 |
Compatible Cable |
(Reference) 0.08 to 0.33/0.21 to 0.52/0.33 to 0.82/0.52 to 0.82 mm² |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Trusco Part No. |
344-5534 |
Applicable Wire Diameter (Φmm) |
(Reference) 0.41 to 0.51/0.41 to 0.64/0.51 to 0.81/0.64 to 1.02 |
