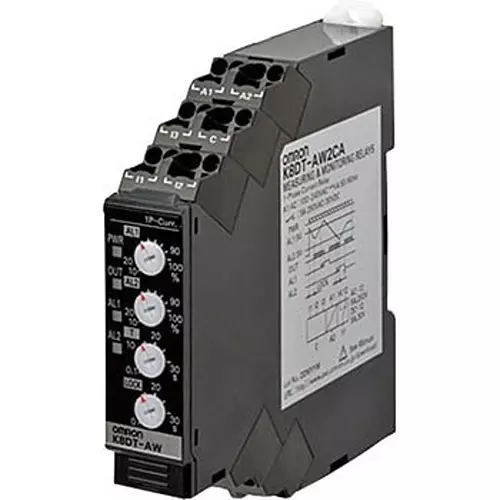

| Type of Product | Single-Phase Current Relay |
| Storage Temperature | -25 to +65℃ |
| Power Consumption | 1.8 VA or less / 1 W or less |
| Country of Origin | Japan |
Type of Product |
Single-Phase Current Relay |
Storage Temperature |
-25 to +65℃ |
Power Consumption |
1.8 VA or less / 1 W or less |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (g) |
About 100 |
Suitable For |
(Wire type) Stranded wire, solid wire, ferrule terminal (cross-sectional area) 0.25 to 1.5 mm ² (AWG24 to 16) |
Rating |
(Transistor output) Contact configuration: 1a (NPN transistor) Rated voltage: 24 VDC (maximum voltage: 26.4 VDC) Maximum current: 50 mA DC |
Input Power |
DC24/AC24 V |
Protection Class |
Terminal: IP20 |
Width (mm) |
17.5 |
Applicable Standard |
EN 60947-5-1 Installation environment: Pollution degree 2, Overvoltage category III |
Type of Sign |
DIN rail mounting, screw mounting |
Monotaro ID |
24414032 |
Withstand Voltage |
2000VAC for 1 minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals |
Rated Insulation Voltage (V) |
AC600 |
Manufacturer Part Number |
K8DT-AS2TD |
Import Country |
Direct Import from Japan |
Case Material |
PC UL94-V0 |
Insulation Resistance (MOhm) |
20 or more Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals |
Altitude (m) |
2000 or less |
Exterior Color |
(Case) N1.5 |
Overload Withstand |
Maximum input 120% continuous 150% 1s |
Outer Dimensions |
17.5x90x90 mm |
Output Type |
Transistor (NPN output) |
Power Supply Voltage |
AC/DC24V |
