| Model No | CLSE-20/CE |

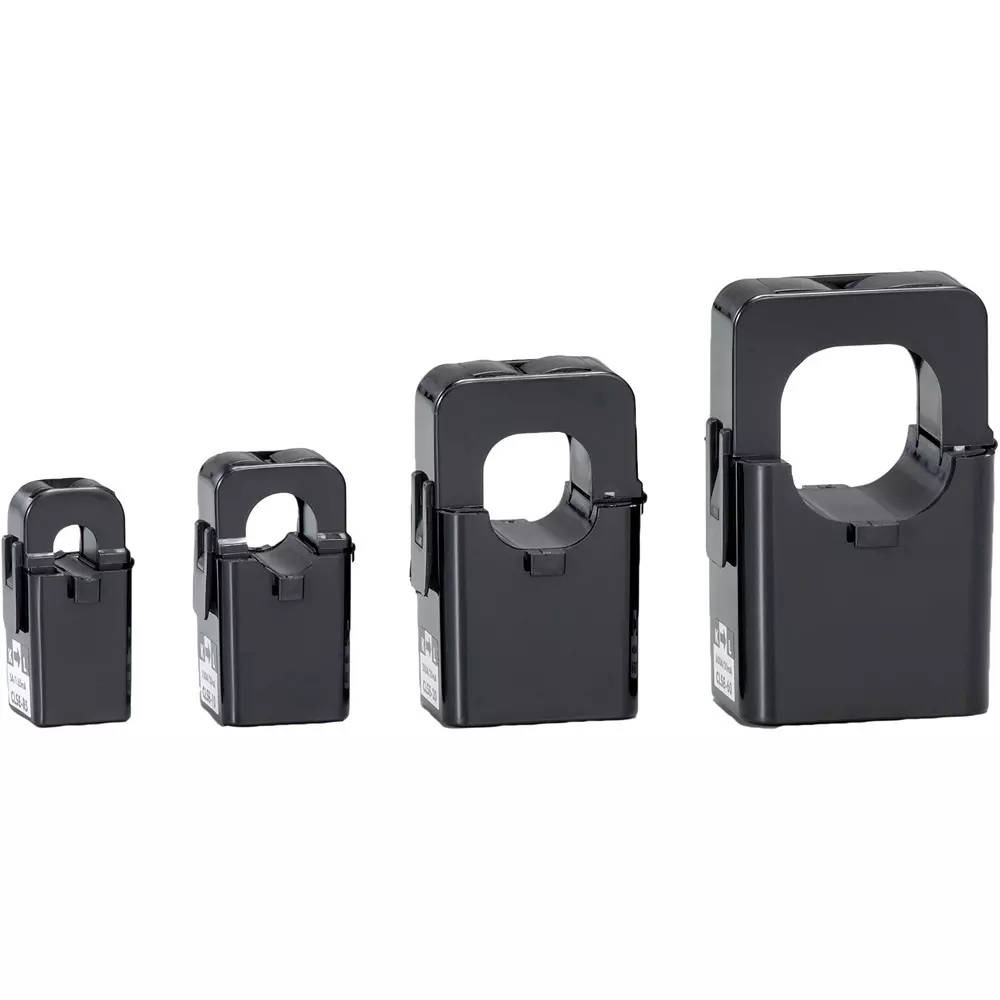

| Type of Product | AC Current Sensor |
| Mass (g) | About 180 |
| Monotaro ID | 50265348 |
Model No |
CLSE-20/CE |
Type of Product |
AC Current Sensor |
Mass (g) |
About 180 |
Monotaro ID |
50265348 |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10 to 55℃ |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MG Co., Ltd. |
Insulation Resistance (MOhm) |
100 500 V DC |
Specifications |
Maximum load: 10 Ω |
Connection Type |
M3 screw terminal connection (tightening torque 0.3N . m) |
Additional Details |
CE compliant product |
Operating Ambient Humidity (% RH) |
30-90 (no condensation) |
Housing Material |
Flame retardant black resin (case) |
Suitable Wire |
Secondary side: AWG 22 or larger |
Compatible Products |
CE compliant product |
Desorption Times |
About 100 times |
Acceptable Input |
240A (continuous), 40x (1 second) |
Frequency Range (Hz) |
45x65 |
Structure |

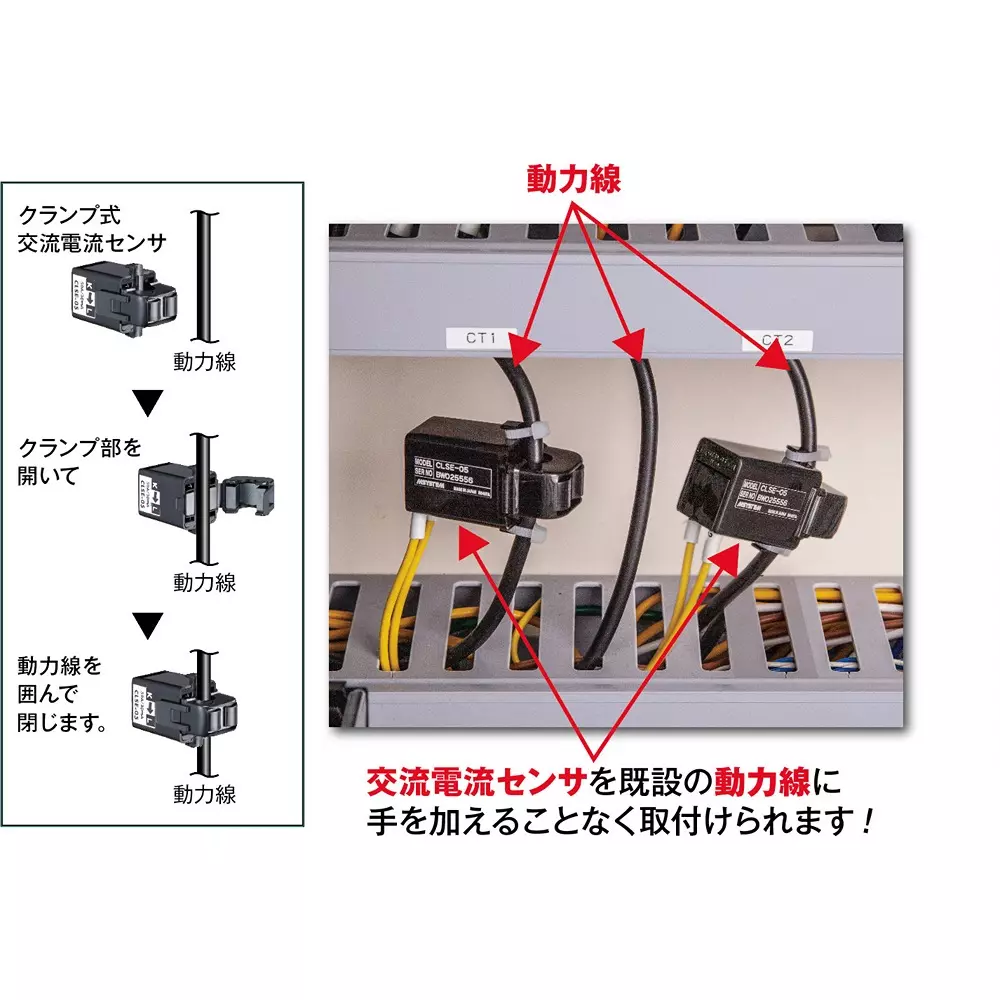

Clamp type |
Input Signal |
200 Amp |
Maximum Operating Voltage |
AC 480 V |
Dielectric Strength |
2000 V/1 Min AC |
Input Range |
200 A or less |
