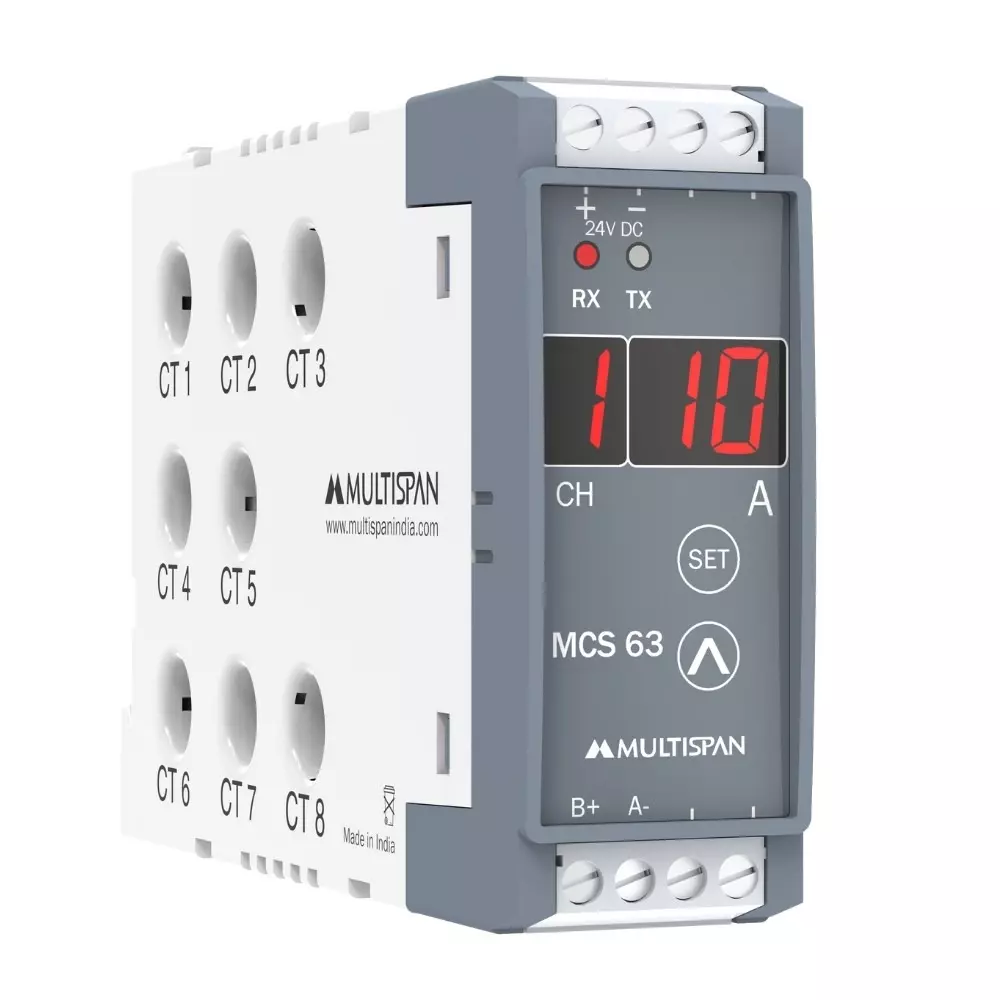

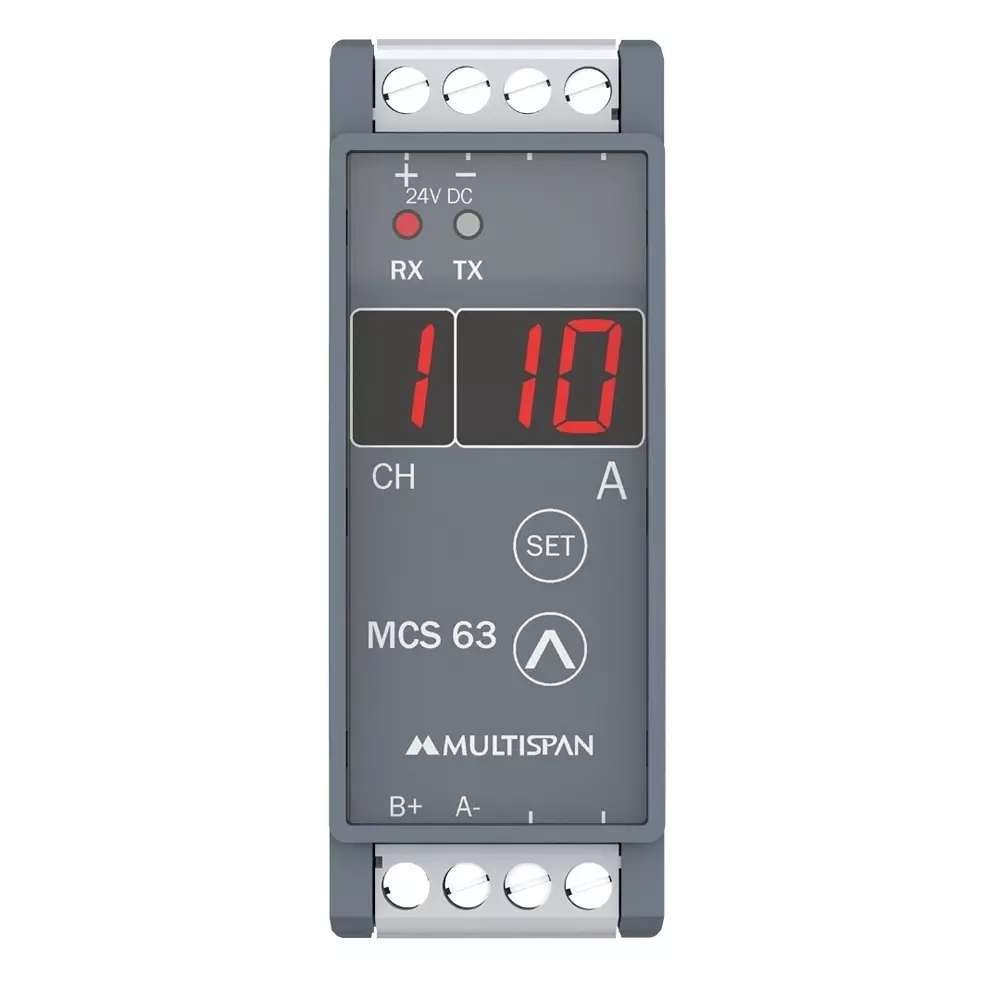

| Model No | MCS-63-460 |
| Range | 60 A AC |
| Type of Product | Multi Channel Current Sensor |
| Current | 1 to 60 A AC |
Model No |
MCS-63-460 |
Range |
60 A AC |
Type of Product |
Multi Channel Current Sensor |
Current |
1 to 60 A AC |
Storage Temperature |
0 to 55°C |
Communication Protocol |
Modbus RTU Serial |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Working Temperature |
0 to 55°C |
Interface |
RS - 485 |
Burden |
< 0.2 VA |
Key |
SET, INC |
Power Supply |
24 V DC |
Relative Humidity |
95 % RH Non - Condensing |
Display |
3-Digit, 7-Seg, 0.36 inch (9.14 mm), Red |
Communication Rate |
2400, 4800, 9600, 19200, 38400 |
Communication Method |
2-Wire Half Duplex |
Overload |
Upto 65 A Continuous |
Data Type |
Integer, Float |
No. of Channels |
4 |
Slave Address |
1 to 127 |
Data Frame |
N-8-0, N-8-1, N-8-2 |
