| Type | Voltage Sensor |

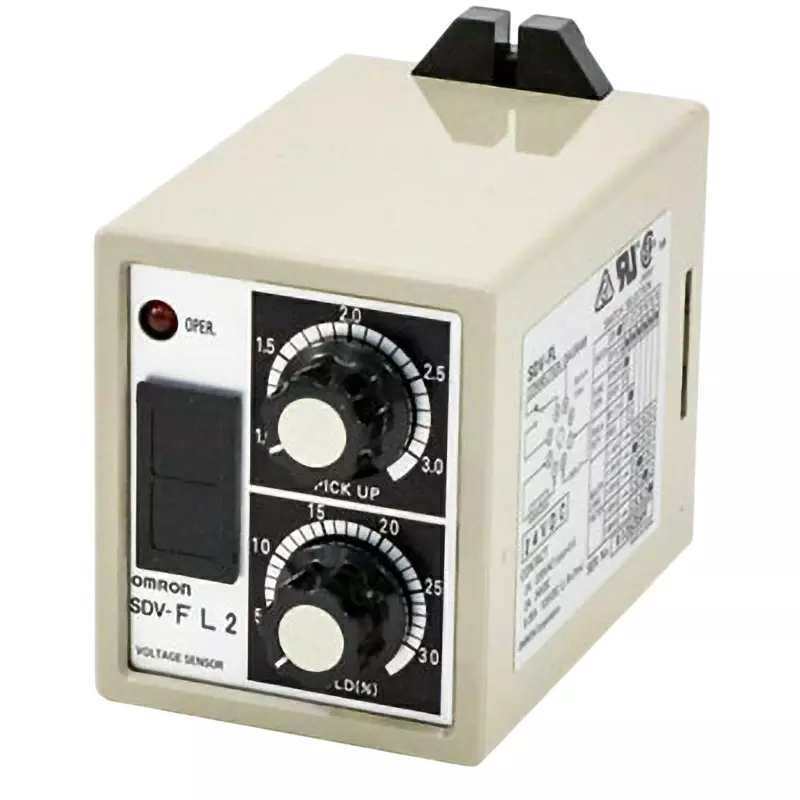

| Model No | SDV-FL2 DC24 |
| Type of Product | Voltage Sensor |
| Operating Time | Operating time 0.5 s or less (when overvoltage settling: when operating value changes from 80% to 120%, undervoltage settling: when operating value changes from 120% to 80%) |
Type |
Voltage Sensor |
Model No |
SDV-FL2 DC24 |
Type of Product |
Voltage Sensor |
Operating Time |
Operating time 0.5 s or less (when overvoltage settling: when operating value changes from 80% to 120%, undervoltage settling: when operating value changes from 120% to 80%) |
Insulation Resistance |
10 or more (between electrical circuit and outer box, between input terminal and power supply terminal) (at 500 VDC) |
Withstand Voltage |
AC2000V 1min (between all electrical circuits and outer box, between input terminal and power supply terminal) |
Monotaro ID |
39096915 |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
16.7 Hz Double amplitude 1 mm 3 directions 10min |
Influence of Temperature |
Operating values (1): ±2%, (2): ±4%, (1): 0 to 40°C (2): -10 to 55°C (However, for SDV-FL, 4 to 12 mV range, (1) ±4% (2) ±8%) |
Operation Type |
Single Operation Type (Overvoltage Or Undervoltage Detection) |
Input |
DC only |
Vibration Resistance (Destruction) |
10-25 Hz Double amplitude 2 mm (up to 19.6m / s <sup>2</sup> ) 3 directions 2h |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Misc Sensors and Controllers |
Shock Resistance (m/s²) |
294 m/s² |
