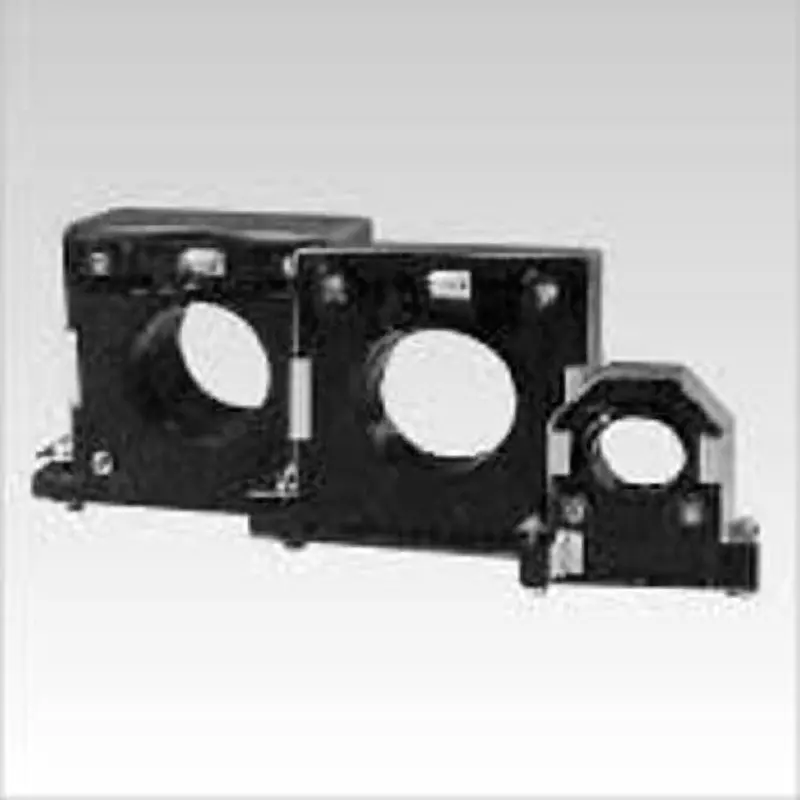

| Model No | HCS-20-200-AS |
| Type of Product | DC Current Sensor |
| Mass (g) | 45 |
| Insulation Resistance | 500 VDC, ≥500 MΩ (between through hole and output terminals all together) |
Model No |
HCS-20-200-AS |
Type of Product |
DC Current Sensor |
Mass (g) |
45 |
Insulation Resistance |
500 VDC, ≥500 MΩ (between through hole and output terminals all together) |
Monotaro ID |
62905718 |
Rated Current (A) |
±200 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
URD Co., Ltd. |
Withstand voltage (V / min) |
AC2500 (between through hole and output terminals) |
Screw Tightening Torque (Nm) |
0.3 |
Storage Environment |
-15℃ to 65℃, ≦85% RH, no condensation |
Linearity |
Within ± 1% FS |
Temperature coefficient |
Voltage: ±0.15%/℃ typ. |
Connector |
Connection: 5045-04 (Molex) |
Operation Environment |
-10℃ to 60℃, ≦85% RH, no condensation |
Output Characteristics |
2.5V±2V (output range of ±2V centered on 2.5V when no load, recommended load resistance ≧10kΩ) |
Response Speed |
3μs or less (di / dt = FS / 2μs) |
Input Power |
Control: DC 8 to DC 16 V single power supply (25 mA typ/DC 12 V, 45 mA typ/DC 16 V) |
