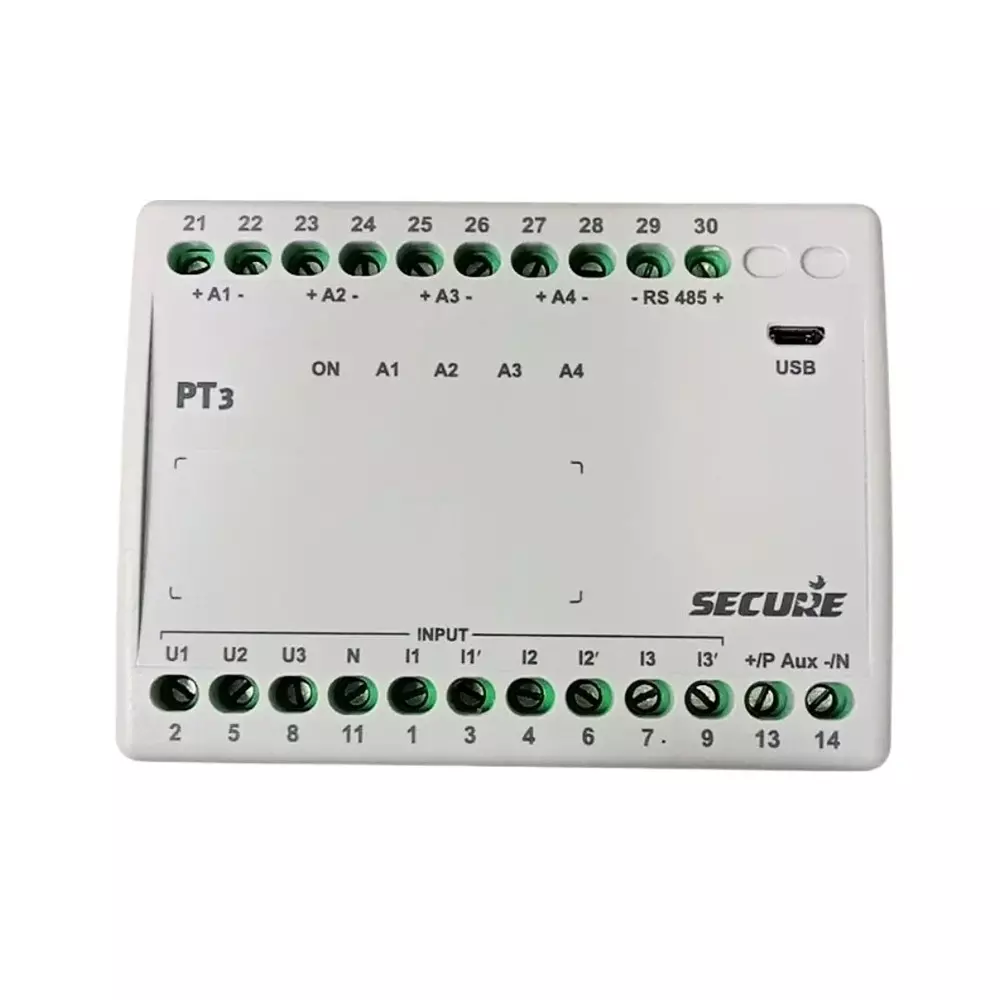

| Type of Product | AC Active Power Transducer |
| Output | 2 |
| Frequency | 45 Hz to 55 Hz or 55 Hz to 65 Hz |
| Voltage | Nominal (Un) 57.7 to 415 V, measuring 0 to 130 % of Un (up to 500 V) 3x100 to 415 V L-L (3P-3W), 3x57.5 to 240V L-N (3P-4W) |
Type of Product |
AC Active Power Transducer |
Output |
2 |
Frequency |
45 Hz to 55 Hz or 55 Hz to 65 Hz |
Voltage |
Nominal (Un) 57.7 to 415 V, measuring 0 to 130 % of Un (up to 500 V) 3x100 to 415 V L-L (3P-3W), 3x57.5 to 240V L-N (3P-4W) |
Phase |
3 Phase |
Accuracy Class |
0.2 |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Secure Meters Ltd. |
Standard |
IEC 60688, IEC 61010-1, IEC 61010-2-30, IEC 61326-1, DIN 50022, |
DC Current |
-20-0-(+20) mA directly, or -300-0-(+300) mV through shunt |
Auxiliary Supply Voltage |
High Aux: 80 to 300 V AC / DC and Low Aux: 24 to 80 V DC |
Current |
Nominal (In) 1 A to 5 A, Measuring 0 to 150% In |
Function |
Single Function |
Item Code |
PT3 X23-126 |
