Ships within 19 days
Model No
View
View
View
View

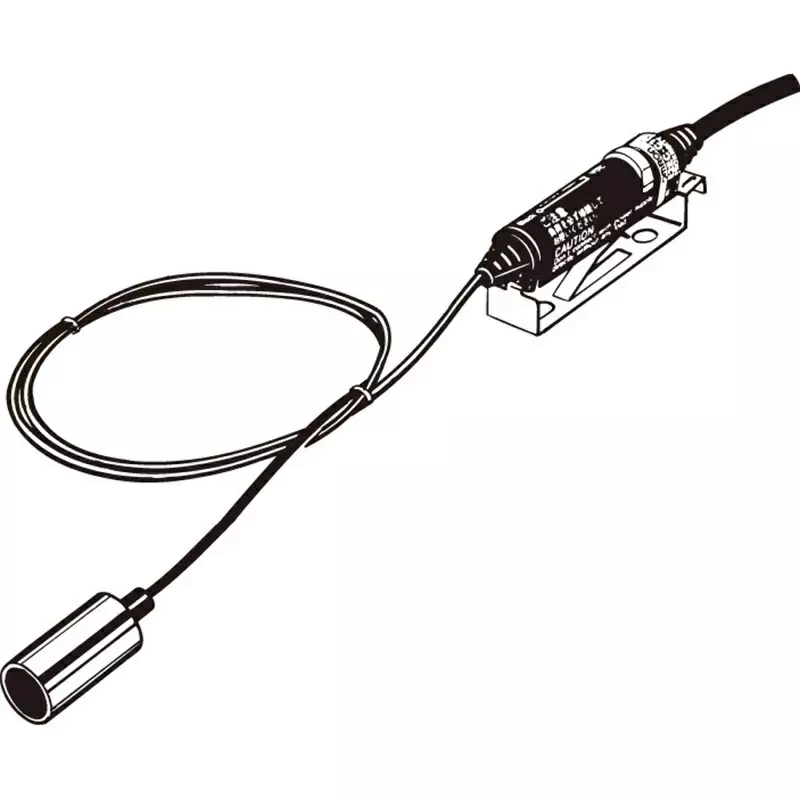

| Type of Product | Amplifier Relay Proximity Sensor |
| Model No | E2EC-C3D2-5M |
| Type | Amplifier Relay Type |
| Cable Length (m) | 5 |
Type of Product |
Amplifier Relay Proximity Sensor |
Model No |
E2EC-C3D2-5M |
Type |
Amplifier Relay Type |
Cable Length (m) |
5 |
Case Material |
Brass |
Protection Class |
IEC standard IP67 |
Control Output |
Switching capacity: 5 to 100 mA, residual voltage: 3 V or less (load current 100 mA, cord length 2 m) |
Connection Type |
Cord drawer type (standard cord length 2m) |
Protection Circuit |
Load short-circuit protection, surge absorption |
Insulation Resistance |
50 or more (at 500 VDC) between live parts and case |
Power Supply Voltage |
DC12-24 Ripple (pp) 10% or less |
Monotaro ID |
46432897 |
Setting Distance (mm) |
0~2.1 |
Head Shape |
Circle |
Shield Shape |
Shield |
Standard Sensing Object (mm) |
Iron 8 × 8 × 1 |
Influence of Voltage |
± 2.5% or less of sensing distance at rated power supply voltage within the range of rated power supply voltage ± 15% |
Detection Distance (mm) |
3±10% |
Ambient Humidity (% RH) |
Operating and storage: 35 to 95 each (no condensation) |
Mass (g) |
Approx. 45 (packed) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Included Components |
Amplifier mounting bracket, instruction manual |
Vibration Resistance (Destruction) |
10-55Hz, multiple width 1.5mm, X, Y, Z directions 2h |
Oscillation Frequency |
(Classification) Different Frequency |
