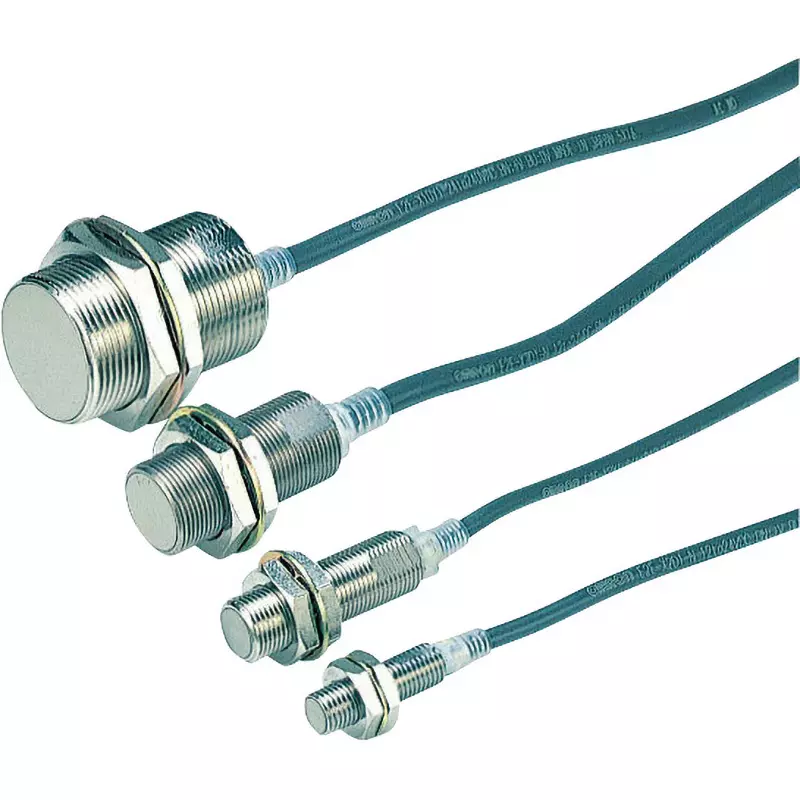

| Type of Product | Small Diameter Type Proximity Sensor |
| Model No | E2E-C04S12-MC-C1 |
| Type | Direct connector type |
| Cable Length (m) | Direct connector type |
Type of Product |
Small Diameter Type Proximity Sensor |
Model No |
E2E-C04S12-MC-C1 |
Type |
Direct connector type |
Cable Length (m) |
Direct connector type |
Output |
DC 3-Wire NPN Open Collector Output |
Protection Class |
IEC standard IP67 |
Operation Mode |
Normally Open (NO) |
Connection Type |
M8 Connector, 3-Pin |
Detection Distance |
1.2 mm |
Series |
E2E Series |
Monotaro ID |
66466112 |
Sensor Shape |
Cylindrical Shape |
Detection Target |
Magnetic Metal (Non-magnetic Metal Decreases The Detection Distance.) |
Head Shape |
Circle |
Shield Shape |
Shield |
Detection Distance (mm) |
1.2 mm |
Cord |
Standard PVC Code |
Outer Diameter |
Φ4 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Case Type |
Cylindrical |
