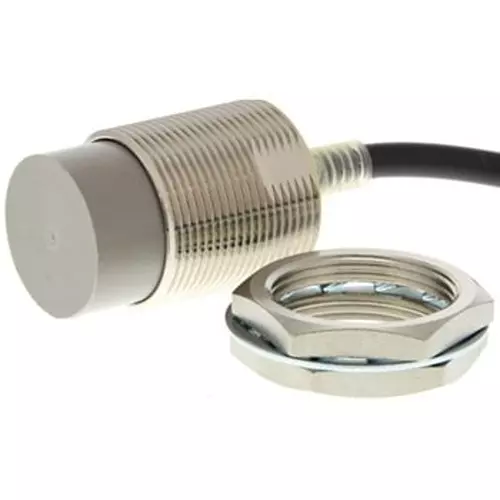

| Type of Product | Proximity Sensor |
| Model No | E2E-X18ME25-2M |
| Cable Length (m) | 2 |
| Material | Cord: Polyvinyl chloride (PVC), Tightening nut: Brass, nickel plated |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Proximity Sensor |
Model No |
E2E-X18ME25-2M |
Cable Length (m) |
2 |
Material |
Cord: Polyvinyl chloride (PVC), Tightening nut: Brass, nickel plated |
Case Material |
Brass Nickel plating |
Operating Temperature Range |
-40 to 85℃ (with no icing or condensation) |
Protection Class |
IEC standard IP67 |
Shape |
Cylindrical (with thread) |
Control Output |
NPN collector load built-in output |
Connection Type |
Cord drawer type |
Protection Circuit |
Load short circuit protection, power reverse connection protection, surge absorption |
Power Supply Voltage |
DC12-24 ripple (pp) 10% or less |
Monotaro ID |
46449751 |
Head Shape |
screw |
Standard Sensing Object (mm) |
Iron 54x54x1 |
Detection Distance (mm) |
18±10% |
Current Consumption (mA) |
13 or less |
Cord |
Standard PVC cord (oil resistant) |
Mass (g) |
Approx. 195 (packed) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Included Components |
Instruction manual, tightening nut, washer with teeth |
Oscillation Frequency |
Different Frequency |
Insulation Resistance (MOhm) |
Between li Ve parts and case: 50 mohm or more (at DC500 V megger) |
