Ships within 19 days
Detection Distance (mm)
Model No
View
View
View
View

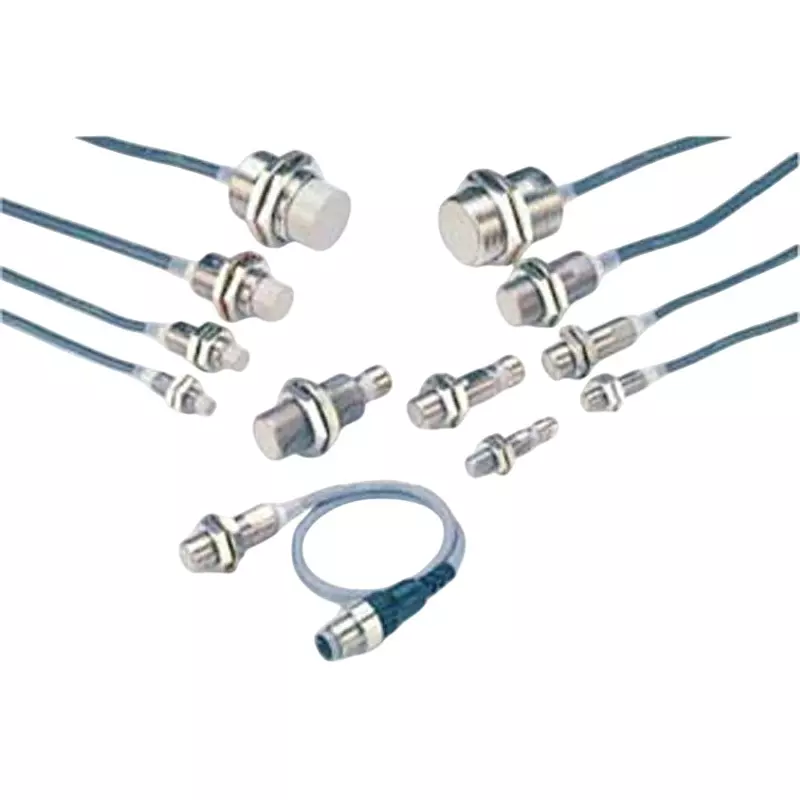

| Type of Product | Standard Type Proximity Sensor |
| Model No | E2E-X14MD1 2M |
| Type | Dc 2-Wire Type |
| Cable Length (m) | 2 |
Type of Product |
Standard Type Proximity Sensor |
Model No |
E2E-X14MD1 2M |
Type |
Dc 2-Wire Type |
Cable Length (m) |
2 |
Output |
DC 2-Wire Polarity |
Case Material |
Brass Nickel Plating |
Protection Class |
IEC Standard IP67 |
Shape |
Unshielded M18 |
Control Output |
Switching Capacity: 3 To 100 Ma, Diagnostic Output 50 Ma, Residual Voltage: 3 V Or Less (Load Current 100 Ma, Cord Length 2 M, But Only 5 V Or Less For M1J-T Type Only) |
Operation Mode |
NO |
Connection Type |
Cord Drawer Type |
Protection Circuit |
Surge Absorption, Load Short-Circuit Protection (Both Control Output And Diagnostic Output) |
Connection Method |
Cord Pull-Out Type |
Series |
E2E |
Insulation Resistance |
50 mΩ Or more (At 500 VDC) Between Live Parts and Case |
Monotaro ID |
2087766 |
Sensor Shape |
Screw Type |
Setting Distance (mm) |
0 to 11.2 |
Head Shape |
Screw |
Standard Sensing Object (mm) |
Iron 30 × 30 × 1 |
Influence of Voltage |
Within Rated Voltage ± 15% Range, Within Rated Voltage ± 1% Of Sensing Distance |
Detection Distance (mm) |
14 |
Cord |
Standard PVC Cord (Oil Resistant) |
Mass (g) |
Approx. 130 (Packed) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Included Components |
Instruction manual |
Power Supply Voltage (V) |
DC 12 To 24 Ripple (Pp) 10% Or Less |
