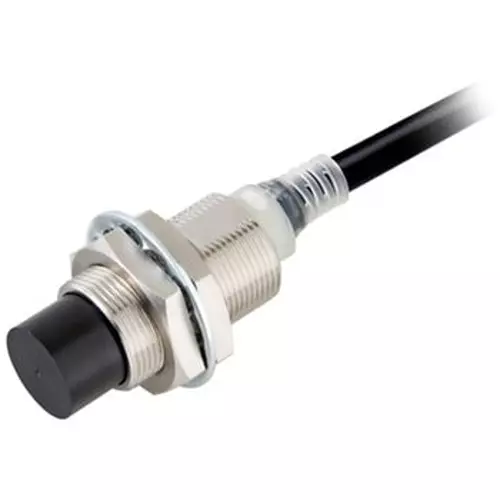

| Type of Product | Proximity Sensor |
| Model No | E2E-X14MD15 2M |
| Type | Cylindrical type (with screw), standard type |
| Cable Length (m) | 2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Proximity Sensor |
Model No |
E2E-X14MD15 2M |
Type |
Cylindrical type (with screw), standard type |
Cable Length (m) |
2 |

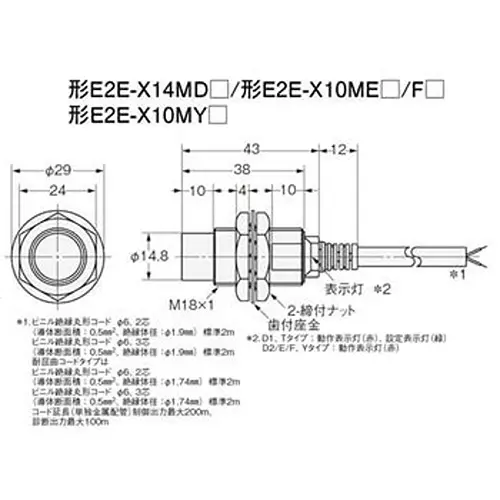

Size |
M18 |
Case Material |
Brass Nickel plating |
Protection Class |
IEC standard IP67 |
Connection Type |
Cord drawer type |
Protection Circuit |
Surge absorption, load short-circuit protection |
Power Supply Voltage |
DC 12-24 Ripple (pp) 10% or less (DC 10-30), Class 2 |
Monotaro ID |
39045072 |
Head Shape |
screw |
Standard Sensing Object (mm) |
Iron 30x30x1 |
Detection Distance (mm) |
14±10% |
Ambient Humidity (% RH) |
Operating and storage: 35 to 95 each (no condensation) |
Cord |
Standard PVC code |
Mass (g) |
Approx. 150 (packed) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Included Components |
Instruction manual, tightening nut, washer with teeth |
Body Size |
Standard |
Oscillation Frequency |
(Classification) Different Frequency |
Insulation Resistance (MOhm) |
Between li Ve parts and case: 50 mohm or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
Operating: -25 to 70, Storage: -40 to 85 (but do not allow freezing or condensation) |
