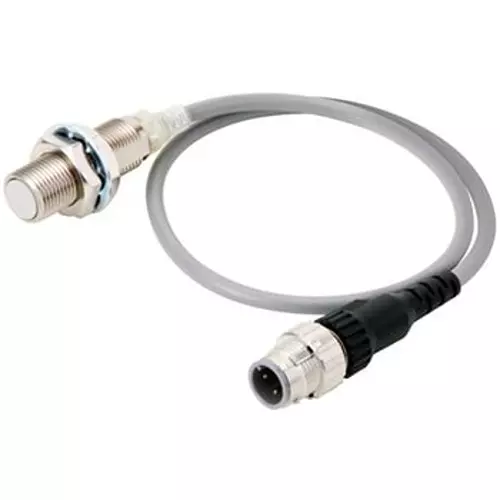

| Type of Product | Proximity Sensor |
| Model No | E2E-X3B4-M1TJ-IL30.3M |
| Cable Length (m) | 0.3 |
| Material | Clamping nut: Brass, nickel plated |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Proximity Sensor |
Model No |
E2E-X3B4-M1TJ-IL30.3M |
Cable Length (m) |
0.3 |
Material |
Clamping nut: Brass, nickel plated |
Case Material |
Brass Nickel plating |
Operating Temperature Range |
During operation and storage: -25 to 70°C (but do not allow freezing or condensation) |
Protection Class |
IEC standard IP67 |
Shape |
Cylindrical (with thread) |
Control Output |
PNP |
Connection Type |
Connector relay type |
Protection Circuit |
Power supply reverse connection protection, output reverse connection protection, surge absorption, load short circuit protection |
Power Supply Voltage |
DC10-30 V(including 10% ripple V(pp)) |
Specifications |
Main IO-Link functions: NO/NC operation mode switching, self-diagnosis function enable/disable selection, excessive approach judgment distance selection, control output timer function and timer time selection, ON delay timer time selection for unstable output (IO-Link mode), monitor output, power-on time readout, initial reset |
Monotaro ID |
66468422 |
Head Shape |
Screw |
Standard Sensing Object (mm) |
Iron 12x12x1 |
Detection Distance (mm) |
3±10% |
Current Consumption (mA) |
20 or less |
Cord |
Standard PVC cord (oil resistant) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Included Components |
Instruction manual |
Oscillation Frequency |
Standard Frequency |
Insulation Resistance (MOhm) |
Between li Ve parts and case: 50 or more (at 500 VDC) |
