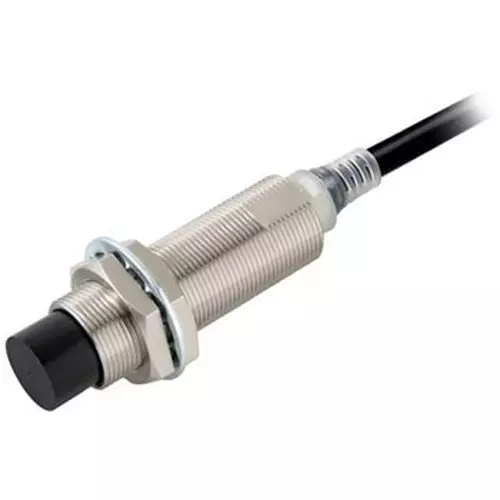

| Type of Product | Proximity Sensor |
| Model No | E2E-X16MD2L-T 2M |
| Type | Cylindrical type (with screw), medium distance type |
| Cable Length (m) | 2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Proximity Sensor |
Model No |
E2E-X16MD2L-T 2M |
Type |
Cylindrical type (with screw), medium distance type |
Cable Length (m) |
2 |
Size |
M18 |
Output |
DC 2-wire type |
Case Material |
Brass Nickel plating |
Protection Class |
IEC 60529 IP67, JIS C 0920 Appendix 1 IP67G, OMRON oil-resistant component evaluation standard passed (cutting oil type: JIS K 2241:2000 specified cutting oil, temperature 35°C or less), ISO 20653 (formerly DIN standard 40050 PART 9) IP69K |
Connection Type |
Cord drawer type |
Protection Circuit |
Surge absorption, load short-circuit protection |
Power Supply Voltage |
DC12 to 24 ripple (pp) 10% or less (DC10 to 30), Class 2 |
Monotaro ID |
50591968 |
Setting Distance (mm) |
0 to 12.8 |
Standard Sensing Object (mm) |
Iron 45x45x1 |
Detection Distance (mm) |
16±10% |
Ambient Humidity (% RH) |
Operating and storage: 35 to 95 each (no condensation) |
Cord |
Standard PVC code |
Mass (g) |
About 150 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Included Components |
Instruction manual, tightening nut, washer with teeth |
Body Size |
Long body |
Objects to Detect |
Possible: Magnetic metals (non-magnetic metals will reduce the detection distance.) |
Insulation Resistance (MOhm) |
Between li Ve parts and case: 50 mohm or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
Operating: -25 to 70, Storage: -40 to 85 (but do not allow freezing or condensation) |
