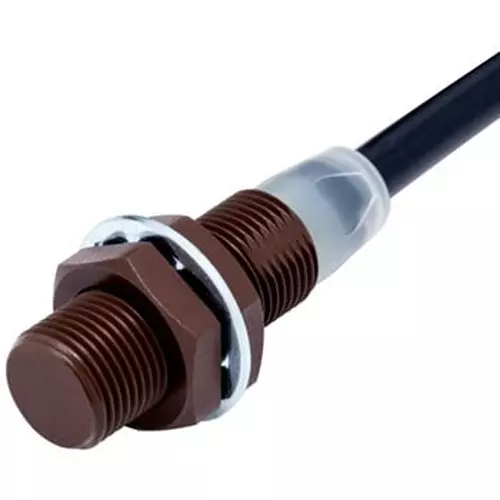

Omron Proximity Sensor 50 mohm or more (at 500 V DC), E2EW-QX6B1T12 2M

Name: Omron Proximity Sensor 50 mohm or more (at 500 V DC), E2EW-QX6B1T12 2M
Brand: Omron
SKU: IND.CYL.936967001
Price: 21239 INR
Availability: InStock

Visit the Omron Store

EMI starts at ₹1887/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Type of Product	Proximity Sensor
Model No	E2EW-QX6B1T12 2M
Type	Spatter-resistant coating, cylindrical type (with threads), pulse excitation method, shielded type
Cable Length (m)	2

More Omron Cylindrical Proximity Sensor products More Cylindrical Proximity Sensor products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Type of Product	Proximity Sensor
Model No	E2EW-QX6B1T12 2M
Type	Spatter-resistant coating, cylindrical type (with threads), pulse excitation method, shielded type
Cable Length (m)	2
Material	Fastening nut: Fluorine resin coating (base material: SUS303), cord: polyvinyl chloride (PVC)
Case Material	Fluorine resin coating (base material: SUS303)
Protection Class	IEC60529 standard IP67
Connection Type	Cord drawer type
Protection Circuit	Power supply reverse connection protection, surge absorption, load short circuit protection, output reverse connection protection
Power Supply Voltage	DC10 to 30, including ripple (pp) 10%, Class 2
Specifications	Main IO-Link functions: NO/NC operation mode switching, self-diagnosis function enable/disable selection, excessive proximity judgment distance selection, control output timer function and timer time selection, ON delay timer time selection for unstable output (IO-Link co mmunication mode), monitor output, power-on time reading, internal sensor temperature reading, initial reset
Monotaro ID	50591460
Setting Distance (mm)	0 to 4.2
Head Shape	Column type
Standard Sensing Object (mm)	Iron 18x18x1
Detection Distance (mm)	6±10%
Cord	PVC cord
Mass (g)	Approx. 140 (packed)
Country of Origin	Japan
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Omron Corporation
Pack of	1 Pcs
Included Components	Instruction manual, tightening nut, washer with teeth
Conform to	IO-Link: Compatible
Insulation Resistance (MOhm)	Between li Ve parts and case: 50 mohm or more (at 500 V DC)
Operation Ambient Temperature (°C)	Operating: 0 to 85, Storage: -15 to 85 (but do not freeze or condense)
Thickness (mm)	(Detection surface) 0.4
