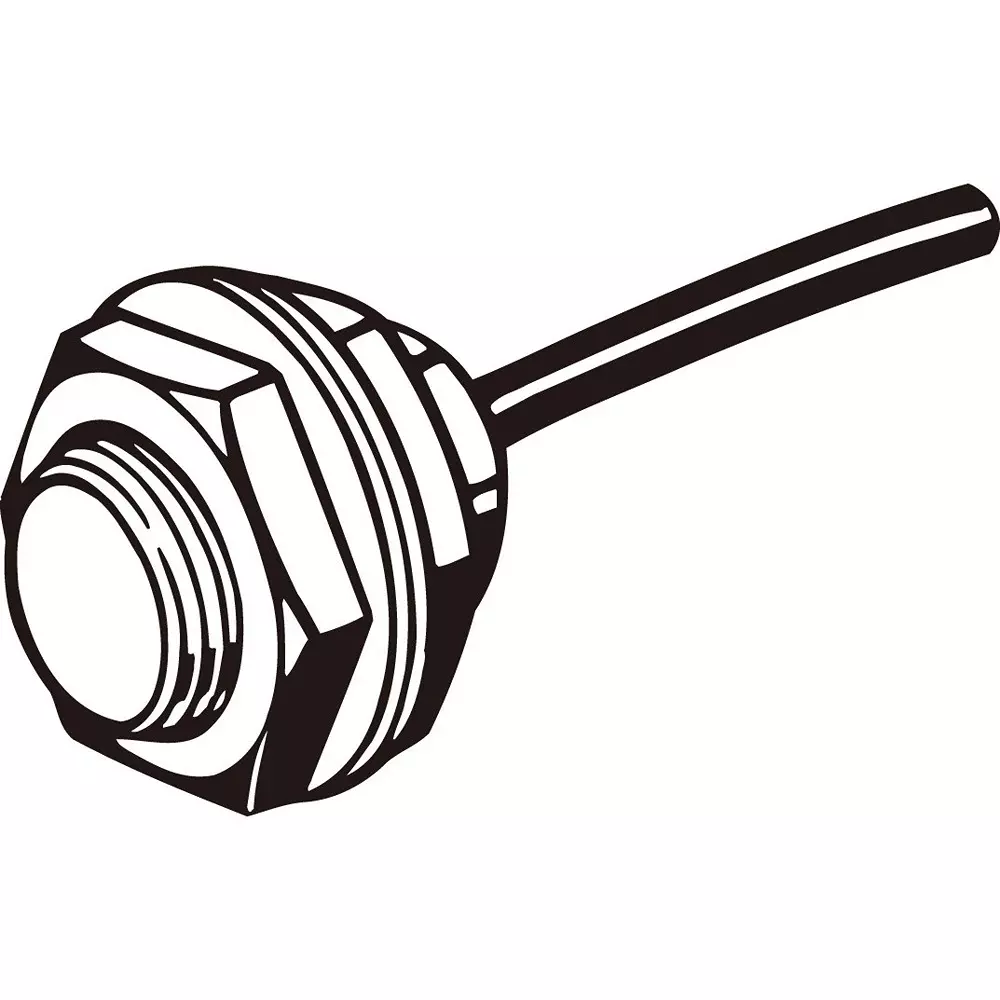

| Type of Product | Amplifier-Separated Proximity Sensor (Volume Type) |
| Model No | E2C-X2AH-5M |
| Type | Heat-resistant type, cylindrical (with screw) sensor head, shielded type |
| Cable Length (m) | 5 m |
Type of Product |
Amplifier-Separated Proximity Sensor (Volume Type) |
Model No |
E2C-X2AH-5M |
Type |
Heat-resistant type, cylindrical (with screw) sensor head, shielded type |
Cable Length (m) |
5 m |
Size |
M12 |
Case Material |
Brass |
Protection Class |
IEC standard IP60 |
Connection Type |
Cord-prep type, high-frequency coaxial cord |
Response Frequency (Hz) |
300 |
Monotaro ID |
46504342 |
Sensor Shape |
Screw Type |
Material (Detection Surface) |
Polyetheretherketone |
Head Shape |
Screw |
Shield Shape |
Shield |
Standard Sensing Object (mm) |
Iron 12 x 12 x 1 |
Detection Distance (mm) |
2 |
Mass (g) |
Approx. 60 (packed) |
Country of Origin |
Japan |
Cable Material |
(Cord) Fluorine resin |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
During operation and storage: -10 to 200 (but do not allow freezing or condensation) |
Influence of Temperature |
±0.2%/ ℃ |
Locator Material |
Possible: Magnetic metal (non-magnetic metal reduces the detection distance.) |
Name |
Sensor part |
