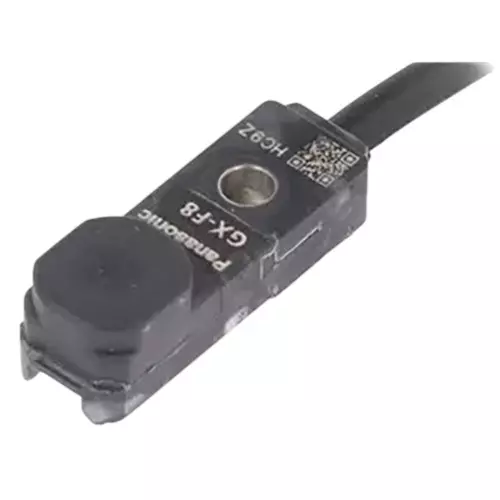

| Type of Product | Proximity Sensor |
| Model No | GX-F8A |
| Features | Built-in amplifier |
| Cable Length (m) | 1 |
Type of Product |
Proximity Sensor |
Model No |
GX-F8A |
Features |
Built-in amplifier |
Cable Length (m) |
1 |
Material |
Indicator light section: Polyester |
Hysteresis |
Less than 20% of the operating distance (with standard detection objects) |
Part No |
GX-F8A |
Detection Distance |
Temperature characteristics: Detection distance within ±8% at +23°C within the ambient temperature range; Voltage characteristics: Within ±2% for fluctuations of -15% to +10% of the power supply voltage. |
Model Name |
Flat ON |
Monotaro ID |
38502931 |
Sensor Shape |
Rectangular |
Cable Extension (m) |
The total length can be extended up to 100mm with a cable of 0.3mm² or larger . |
Withstand voltage (V) |
AC 1000V 1 minute Charge unit together / between case |
Head Shape |
corner |
Vibration Resistance (Endurance) |
10 to 500Hz, double amplitude 3 mm (MAX.20G), 2 hours each in XYZ directions |
Current Consumption (mA) |
15 or less |
Ambient Humidity (% RH) |
35-85 |
Mass (g) |
about 15 |
Country of Origin |
Japan |
Storage Temperature Range |
-40 to 85 |
Import Country |
Direct Import from Japan |
Indicator Light |
Orange LED (lights up when output is ON) |
Name of Manufacturer/Packer/Importer |
Panasonic Devices SUNX Co., Ltd. |
Power Supply Voltage (V) |
12-24 DC 10/-15% Ripple P-P less than 10% |
Insulation Resistance (MOhm) |
Over 50 MHz at DC500V; charging section (all together) / between cases |
Operation Ambient Temperature (°C) |
-25 to 70 |
Withstand voltage (V / min) |
AC 1000 Charging Unit (All Units) / Between Cases |
Operating Humidity Range |
35-85%RH |
Repeatability (mm) |
0.04 or less (in the direction of detection axis, and perpendicular to the detection axis) |
Output Specifications |
Maximum inflow current: 100mA, Applied voltage: 30V DC or less (between output and 0V), Residual voltage: 2V or less (at an inflow current of 100mA) |
Output Operation |
ON when approaching |
Storage Humidity Range |
35-95%RH |
Vibration Resistance (Malfunction) (Hz) |
10 to 500 double amplitude 3 mm (MAX.20G) 2 hours each in XYZ direction |
Maximum Response Frequency (kHz) |
0.5 |
Impact Resistance (Durability) (m/s²) |
10000 (approx. 1000G) 3 times in each direction of XYZ |
Ib Order code |
38502931 |
Bending Radius (mm) |
R2 |
Stable Detection Range |
0-2.1 |
Contents |
1 piece |
Material (main body) |
PBT |
Purpose |
Light curtain muting control, cam detection, coin passage detection, metal pallet positioning, wafer frame detection, processing machine positioning, robot finger chuck confirmation. |
Cabtyre Cable (mm² x m) |
0.15 x 1 (3-core) oil-resistant, heat-resistant, and cold-resistant cabtyre cable included. |
Protective Structure |
IP68 (IEC), IP68G |
Standard Detector (mm) |
Iron 15 x 15 x t1 |
RoHS Directive (10 Substances Compliant) |
correspondence |
Storage Humidity Range (% RH) |
35-95 |
Maximum Operating Distance |
2.5 mm ± 8% |
Output Method |
NPN Transistor Open Collector |
Procurement Type |
Direct Import from Japan |
