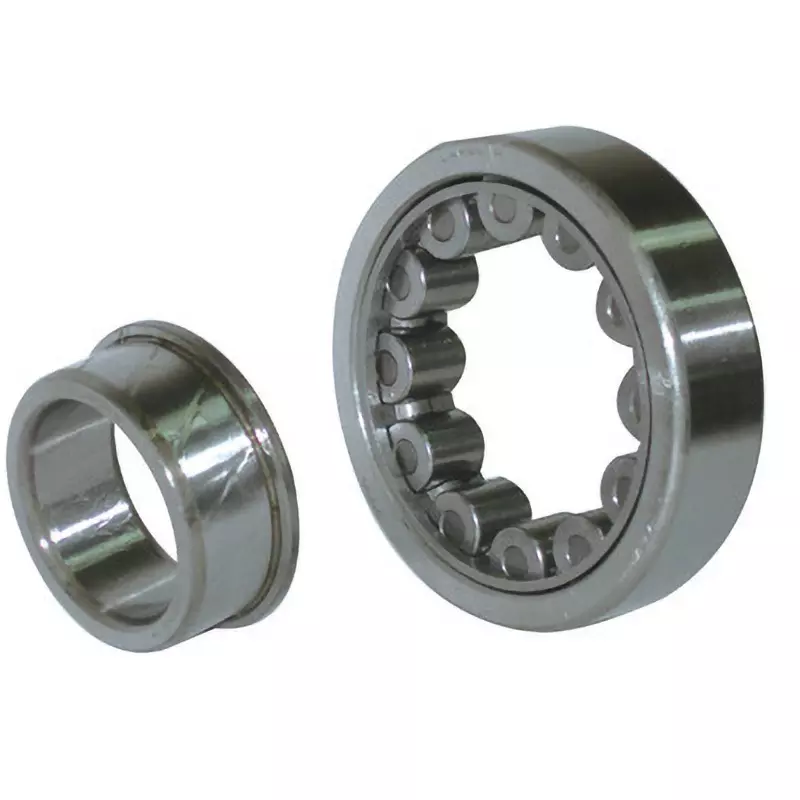

| Type of Product | Cylindrical Roller Bearing |
| Model No | NF219 |
| Material | High Carbon Chromium Bearing Steel |
| Chamfer Dimension r1 (mm) | 2.1 (minimum) |
Type of Product |
Cylindrical Roller Bearing |
Model No |
NF219 |
Material |
High Carbon Chromium Bearing Steel |
Chamfer Dimension r1 (mm) |
2.1 (minimum) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Race ring shape |
Cylindrical roller bearing |
Shield Shape |
Open type |
Import Country |
Direct Import from Japan |
Load direction |
Radial |
JIS grade |
0 |
Rolling element material |
High carbon chromium bearing steel |

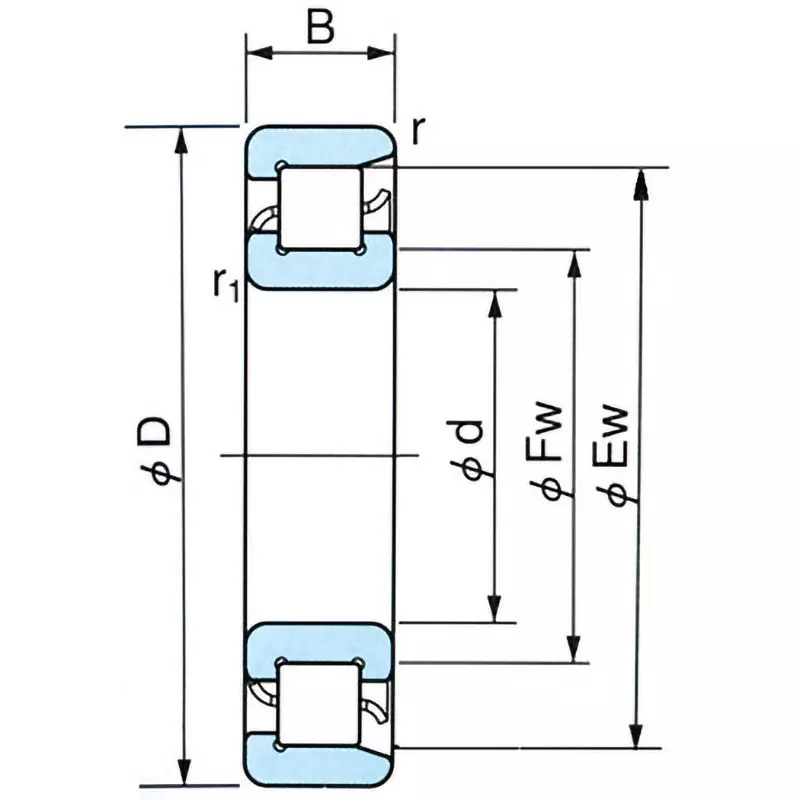

Outer Diameter D (Φmm) |
170 |
Chamfer Dimension r (mm) |
2.1 (minimum) |
Monotaro ID |
68557526 |
Basic dynamic load rating Cr (N) |
165000 |
Width B (mm) |
32 |
Basic static load rating Cor (N) |
195000 |
No. of Track Trains |
Single row |
Inner Diameter d (Φmm) |
95 |
Outer ring type |
Flat |
Circumscribed Circle Diameter Ew (Φmm) |
151.5 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
3800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
4500 |
Inscribed Circle Diameter Fw (Φmm) |
113.5 |
