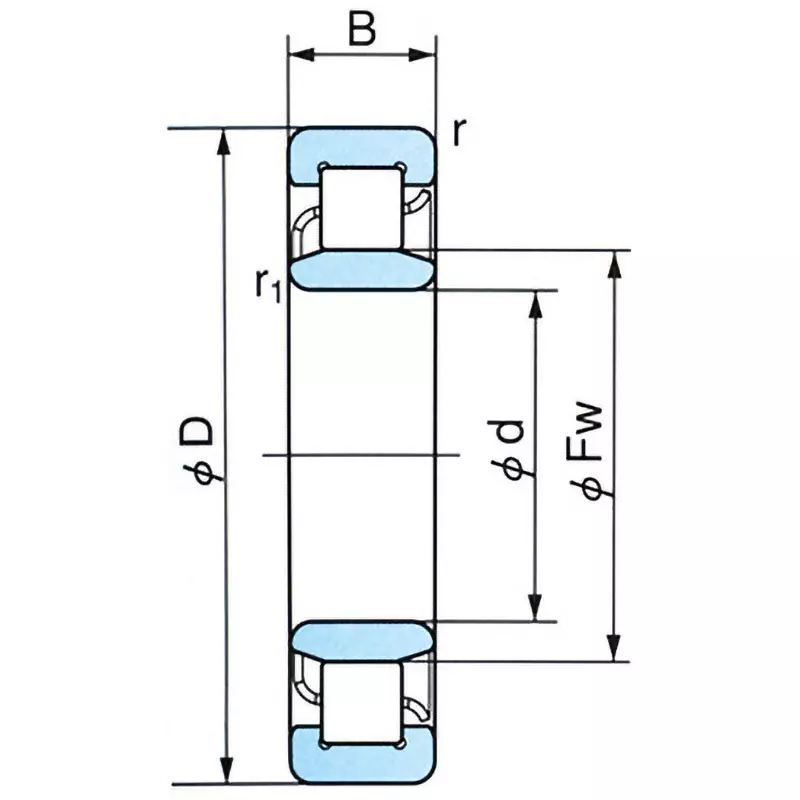

| Type of Product | Cylindrical Roller Bearing |
| Model No | NU316 |
| Material | High Carbon Chromium Bearing Steel |
| Chamfer Dimension r1 (mm) | 2.1 (minimum) |
Type of Product |
Cylindrical Roller Bearing |
Model No |
NU316 |
Material |
High Carbon Chromium Bearing Steel |
Chamfer Dimension r1 (mm) |
2.1 (minimum) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Race ring shape |
Cylindrical roller bearing |
Shield Shape |
Open type |
Import Country |
Direct Import from Japan |
Load direction |
Radial |
JIS grade |
0 |
Rolling element material |
High carbon chromium bearing steel |
Outer Diameter D (Φmm) |
170 |
Chamfer Dimension r (mm) |
2.1 (minimum) |
Monotaro ID |
68555821 |
Basic dynamic load rating Cr (N) |
190000 |
Width B (mm) |
39 |
Basic static load rating Cor (N) |
207000 |
No. of Track Trains |
Single row |
Inner Diameter d (Φmm) |
80 |
Outer ring type |
Flat |
Mass (Kg) |
3.93 Kg |
Circumscribed Circle Diameter Ew (Φmm) |
147 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
3600 |
Mass (g) |
3930 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
4300 |
Inscribed Circle Diameter Fw (Φmm) |
103 |
