Ships within 25 days
View
View
View
View
| Type of Product | Single Row Cylindrical Roller Bearing NU Type |
| Model No | NU305EW |
| Material | High Carbon Chromium Bearing Steel |
| Chamfer Dimension r1 (mm) | 1.1 (minimum) |
Type of Product |
Single Row Cylindrical Roller Bearing NU Type |
Model No |
NU305EW |
Material |
High Carbon Chromium Bearing Steel |
Chamfer Dimension r1 (mm) |
1.1 (minimum) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Race ring shape |
Cylindrical roller bearing |
Shield Shape |
Open type |
Import Country |
Direct Import from Japan |
Load direction |
Radial |
JIS grade |
0 |
Rolling element material |
High carbon chromium bearing steel |

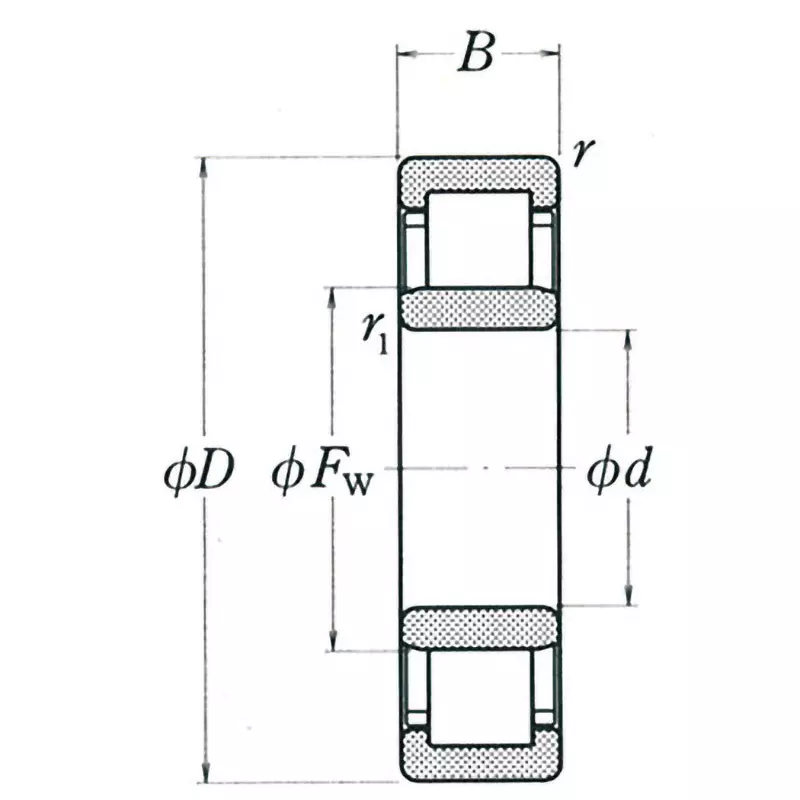

Outer Diameter D (Φmm) |
62 |
Chamfer Dimension r (mm) |
1.1 (minimum) |
Monotaro ID |
7023965 |
Width B (mm) |
17 |
No. of Track Trains |
Single row |
Inner Diameter d (Φmm) |
25 |
Outer ring type |
Flat |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
10000 |
Mass (g) |
269 g |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
12000 |
Basic load rating Cor (N) |
37500 |
Basic load rating Cr (N) |
41500 |
Inscribed Circle Diameter Fw (Φmm) |
34 |
