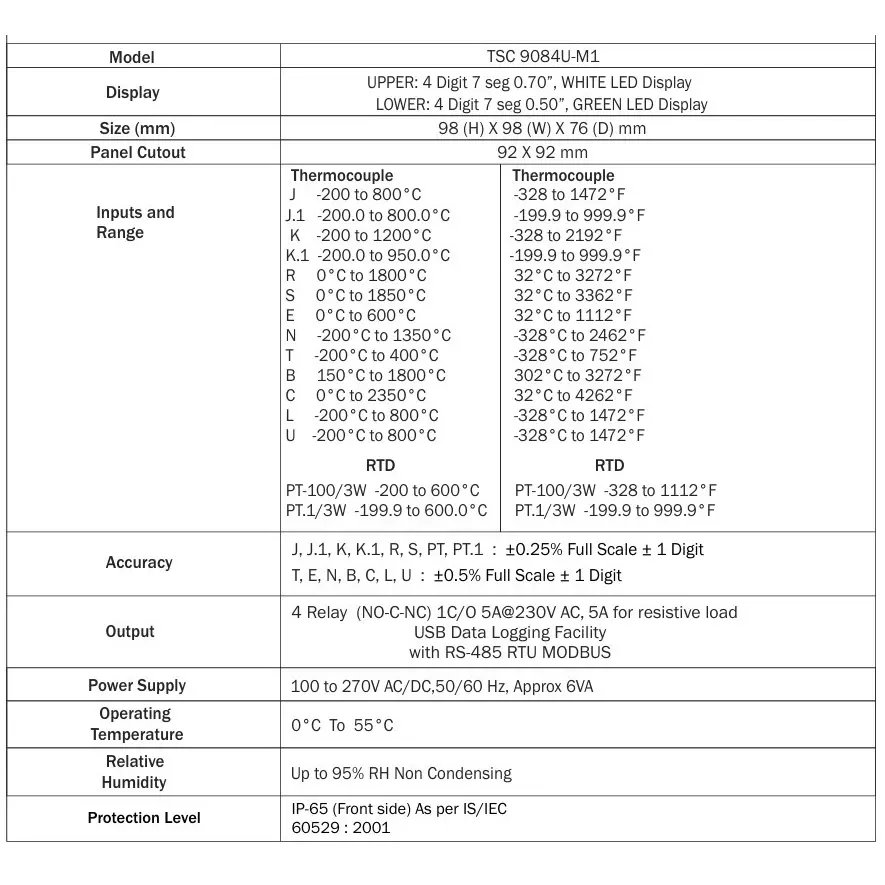

| Type of Product | 8 Channel Scanner |
| Model No | TSC-9084U-M1 |
| Type | with USB Data Logger |
| Size | 96 X 96 X 76 mm |
Type of Product |
8 Channel Scanner |
Model No |
TSC-9084U-M1 |
Type |
with USB Data Logger |
Size |
96 X 96 X 76 mm |
Operating Temperature |
0°C To 55°C |
Output |
4 Relay (NO-C-NC) 1C/O 5 A@230 V AC, 5 A for resistive load USB Data Logging Facility with RS-485 RTU MODBUS |
Accuracy |
J, J.1, K, K.1, R, S, PT, PT.1 : ±0.25% Full Scale ± 1 Digit T, E, N, B, C, L, U : ±0.5% Full Scale ± 1 Digit |
Display |
UPPER: 4 Digit 7 seg 0.70 inch (17.78 mm), WHITE LED Display, LOWER: 4 Digit 7 seg 0.50 inch (12.7 mm), GREEN LED Display |
Power Supply |
100 to 270 V AC/DC, 50/60 Hz, Approx 6 VA |
Country of Origin |
India |
Protection Level |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Panel Cutout |
92 X 92 mm |
Relative Humidity |
Up to 95% RH Non Condensing |
