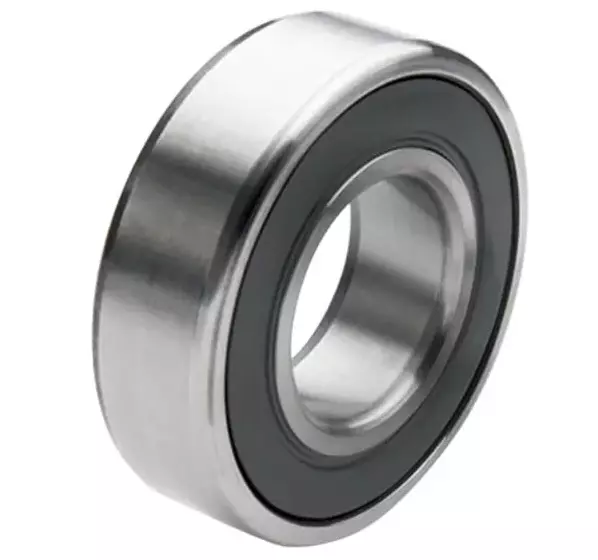

| Type of Product | Single Row Deep Groove Ball Bearing |
| Bearing Clearence | Normal Internal Clearance |
| Material | High Carbon Chromium Bearing Steel |
| Model No | 6311-2Z-L140 |
Type of Product |
Single Row Deep Groove Ball Bearing |
Bearing Clearence |
Normal Internal Clearance |
Material |
High Carbon Chromium Bearing Steel |
Model No |
6311-2Z-L140 |
Weight |
1.43 Kg |
Static Load |
47500 N |
Dynamic Load |
83000 N |
Limiting speed |
7200 rpm |
Reference Speed |
7100 rpm |
Bearing Type |
Radial |
Width |
29 mm |
Bore Type |
Cylindrical Bore |
Inner Diameter |
55 mm |
Outer Diameter |
120 mm |
Seal |
Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal) |
Cage Type |
Standard Steel Cage |
Fatigue Load Limit |
3250 N |
Precision |
Standard |
Lubrication |
L140=(Segment Lubrication, Code 2)High Temperature Grease, -20 To +150 Deg C |
Calculation Factor |
12.9 |
Special Treatment |
No Special Treatment |
Operating Temperature |
Upto 120 Deg C |
Country of Origin |
India |
Origin Type |
Domestic |
Name of Manufacturer/Packer/Importer |
Schaeffler India Limited |
