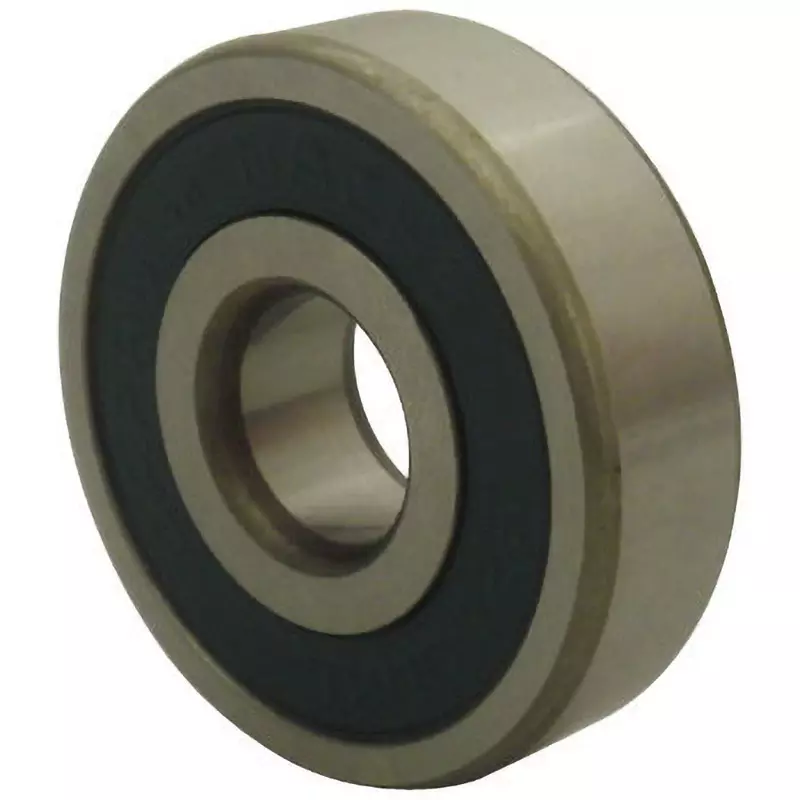

| Type of Product | Single Row Deep Groove Ball Bearing 6900 Series 2NKE |
| Material | High Carbon Steel |
| Model No | 6904-2NKE |
| Country of Origin | Japan |
Type of Product |
Single Row Deep Groove Ball Bearing 6900 Series 2NKE |
Material |
High Carbon Steel |
Model No |
6904-2NKE |
Country of Origin |
Japan |
Mass (g) |
36 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Both non-contact seal type |
Race ring shape |
Deep Groove Ball Bearings |

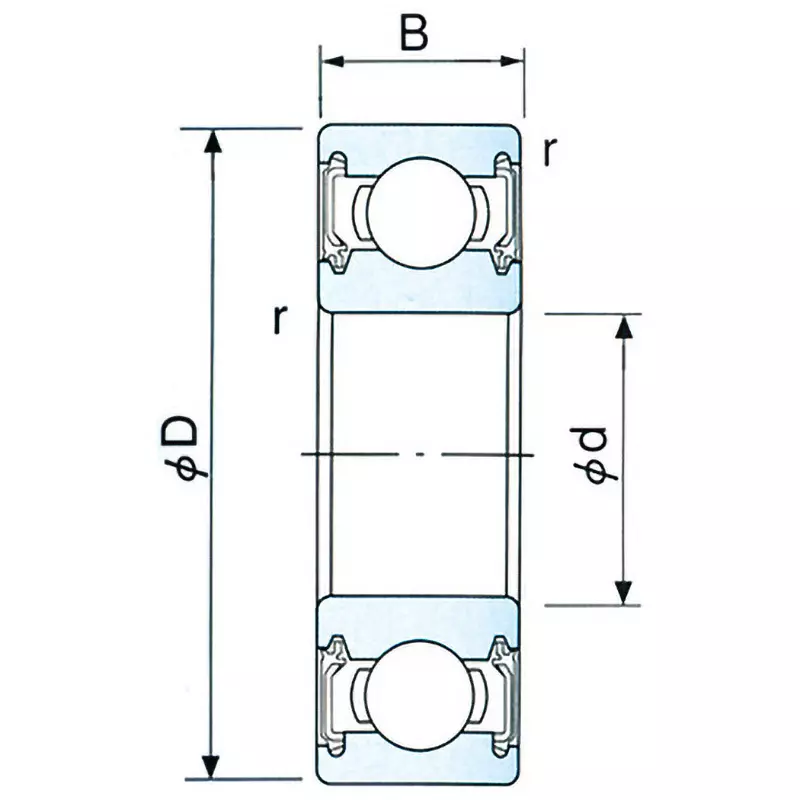

Outer Diameter D (Φmm) |
37 |
JIS grade |
0 |
Basic static load rating Cor (N) |
3700 |
Width B (mm) |
9 |
Basic dynamic load rating Cr (N) |
6350 |
Monotaro ID |
6949512 |

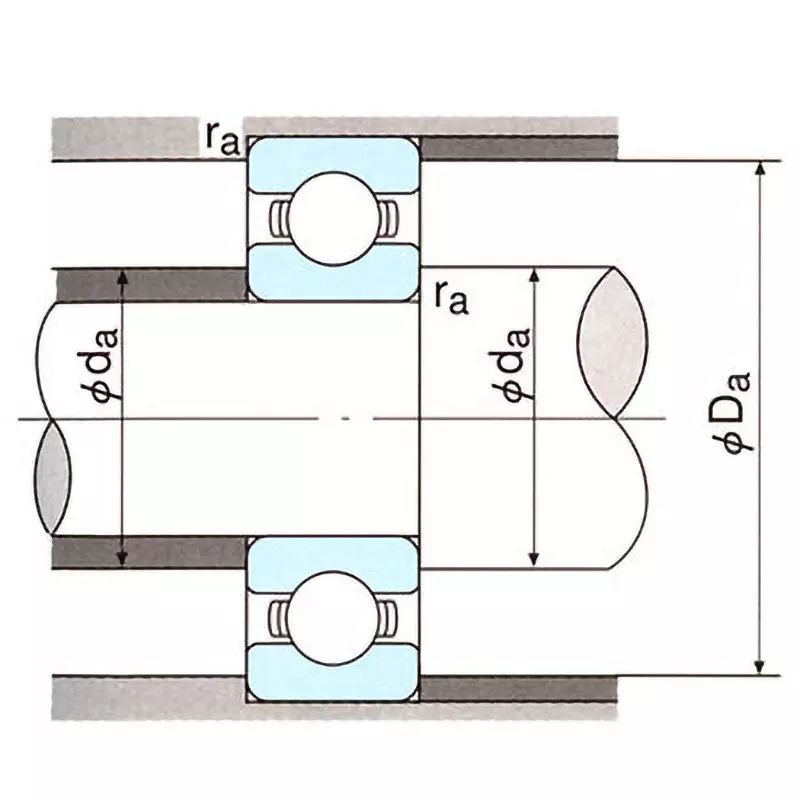

Mounting Dimension, Maximum ra (mm) |
0.3 |
Mounting Dimension, Maximum Da (Φmm) |
35 |
Mounting Dimension, Minimum da (mm) |
22 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Inner Diameter (mm) |
20 |
Chamfer Dimension r (mm) |
0.3 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
19000 |
