Ships within 25 days
View
View
View
View
| Type of Product | Single Row Deep Groove Ball Bearings Series |
| Material | High Carbon Steel |
| Model No | 6300 |
| Country of Origin | Japan |
Type of Product |
Single Row Deep Groove Ball Bearings Series |
Material |
High Carbon Steel |
Model No |
6300 |
Country of Origin |
Japan |
Mass (g) |
53 |
Load direction |
Radial |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Deep Groove Ball Bearings |
Outer Diameter D (Φmm) |
35 |
JIS grade |
0 |
Basic static load rating Cor (N) |
3450 |
Width B (mm) |
11 |
Basic dynamic load rating Cr (N) |
8100 |
Monotaro ID |
7026521 |

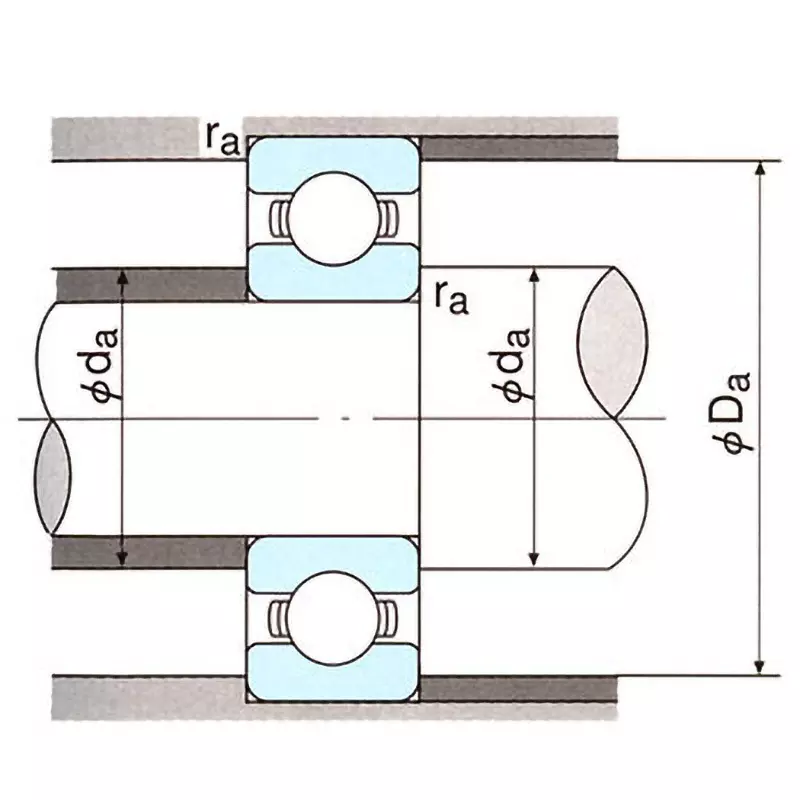

Mounting Dimension, Maximum ra (mm) |
0.6 |
Mounting Dimension, Maximum Da (Φmm) |
30 |
Mounting Dimension, Minimum da (mm) |
15 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Inner Diameter (mm) |
10 |
Chamfer Dimension r (mm) |
0.6 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
23000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
27000 |
