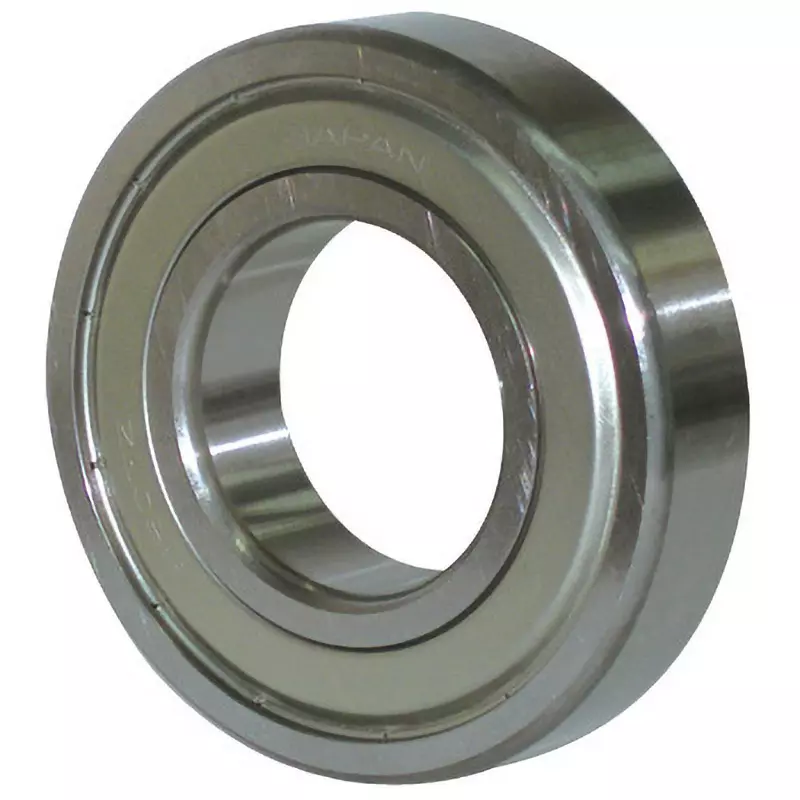

| Type of Product | Single Row Deep Groove Ball Bearings 6300 Series Z, ZE (One Side Steel Plate Shield Type) |
| Material | High Carbon Steel |
| Model No | 6307ZE |
| Country of Origin | JAPAN |
Type of Product |
Single Row Deep Groove Ball Bearings 6300 Series Z, ZE (One Side Steel Plate Shield Type) |
Material |
High Carbon Steel |
Model No |
6307ZE |
Country of Origin |
JAPAN |
Mass (g) |
457 |
Load direction |
Radial |
Outer ring type |
Flat |
Shield Shape |
One side shield type |
Race ring shape |
Deep Groove Ball Bearings |

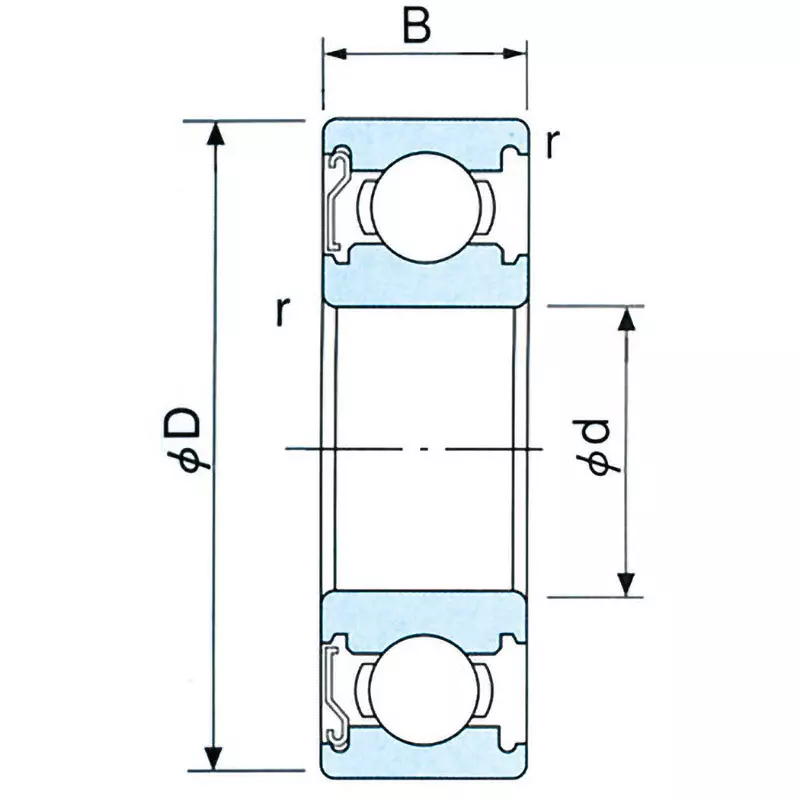

Outer Diameter D (Φmm) |
80 |
JIS grade |
0 |
Basic static load rating Cor (N) |
19200 |
Width B (mm) |
21 |
Basic dynamic load rating Cr (N) |
33500 |
Monotaro ID |
7026801 |

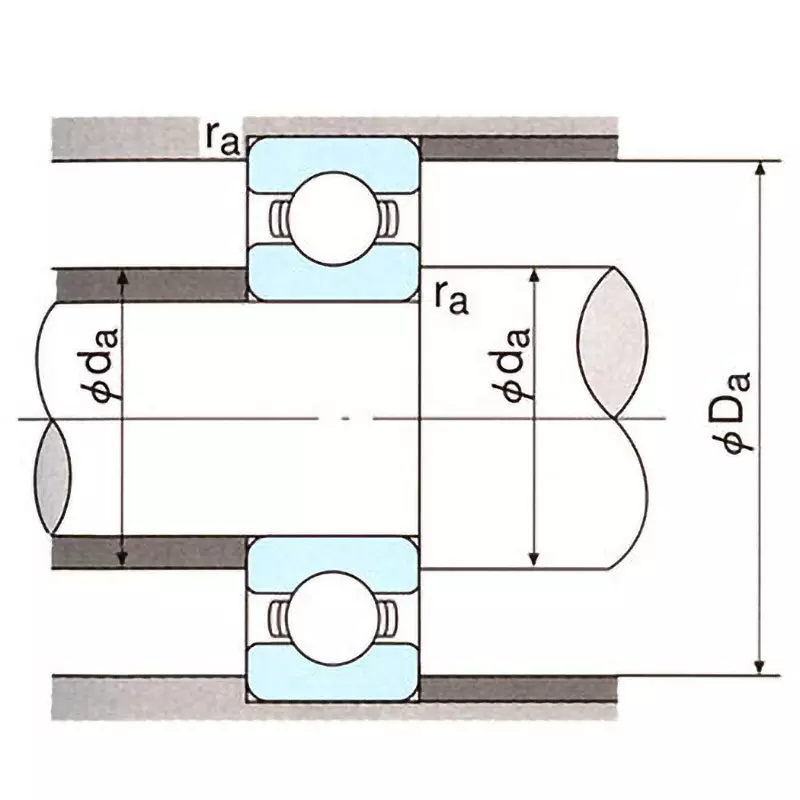

Mounting Dimension, Maximum ra (mm) |
1.5 |
Mounting Dimension, Maximum Da (Φmm) |
71 |
Mounting Dimension, Minimum da (mm) |
44 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Inner Diameter (mm) |
35 |
Chamfer Dimension r (mm) |
1.5 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
8800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
10000 |
