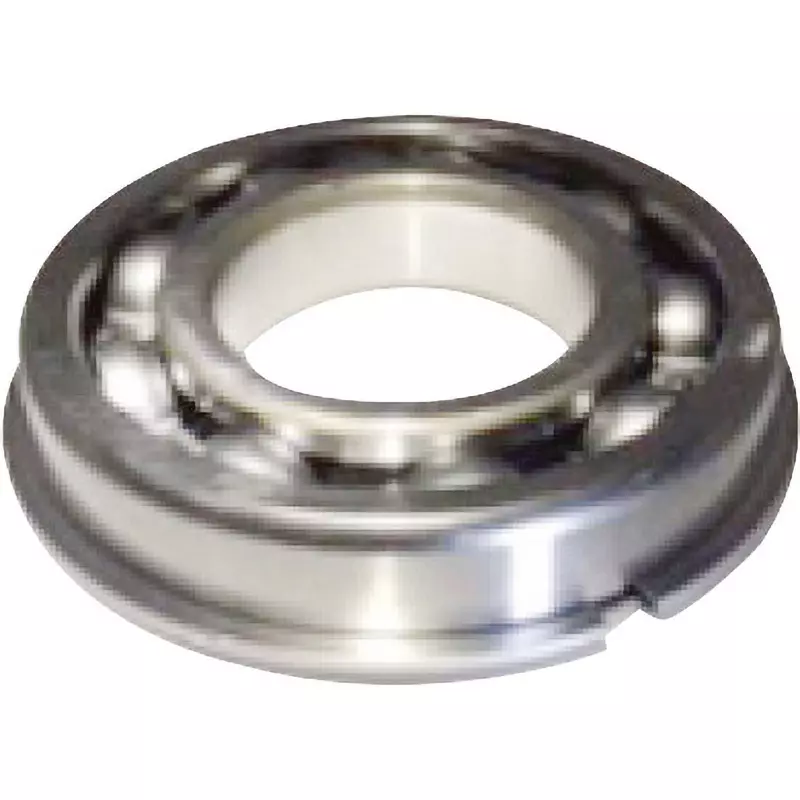

| Type of Product | Single Row Deep Groove Ball Bearing Type 6300 |
| Material | High Carbon Steel |
| Model No | 6307NR |
| Country of Origin | JAPAN |
Type of Product |
Single Row Deep Groove Ball Bearing Type 6300 |
Material |
High Carbon Steel |
Model No |
6307NR |
Country of Origin |
JAPAN |
Chamfer Dimension r1 (mm) |
0.5 (minimum) |
Mass (g) |
457 |
Load direction |
Radial |
Outer ring type |
With Retaining Ring |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Deep Groove Ball Bearings |
Outer Diameter D (Φmm) |
80 |
JIS grade |
0 |
Basic static load rating Cor (N) |
19100 |
Width B (mm) |
21 |
Basic dynamic load rating Cr (N) |
33500 |
Monotaro ID |
47954444 |
Dimensions F (mm) |
1.7 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Inner Diameter (mm) |
35 |
Chamfer Dimension r (mm) |
1.5 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
8800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
10000 |
Dimension d2 (Φmm) |
86.6 |
